Specification:
Item Type: Wireless tattoo pen kit
Material: Aluminum alloy, electronic components
Machine Size (With Wireless Power Supply): Approx. 130 x 36mm / 5.1 x 1.4in
Machine Size (With RCA Conversion Head): Approx. 114 x 36mm / 4.5 x 1.4in
Replacement Battery Size: Approx. 58 x 30mm / 2.3 x 1.2in
Battery: Built in 2000mAh Lithium Battery + Extra 2000mAh Lithium Battery
Craftsmanship: CNC Integrated Carving
Needle Stoke:Approx. 4MM
Motor: Coreless motor
Battery Interface: Type C Interface (USB C)
Usage Time: 5-10 hours of continuous work at maximum output current of 1A
Charging Time: Approximately 1.5-2 hours for fast charging from empty
Operating Voltage Range: 4-12V
Voltage Adjustment Accuracy: Short Press: 0.1V, Long Press: Quick Adjustment
Speed: 12V, 10000RPM
Structure: Integrated Lithium Battery Pen Structure, Detachable Battery Section
Display Screen Content: Current Voltage + Remaining Power + Operation Duration + Frequency
Needles: Compatible with 99% of tattoo cartridges available in the market
Machine Features: Adjustable Needle Protrusion, LCD Display Screen, Long lasting Battery Life, Detachable Design
Note: The screen will turn off after 5 minutes of inactivity. Press the power button to turn it back on.
How to Use
To turn on the power, hold down the power button (center button). The display screen will show the current voltage, remaining battery level, operating duration, and frequency.
When the machine starts, short press the 2 white buttons to adjust the voltage. Short press the power button to pause/restart.
Memory Function: When the machine is paused, short press the two white buttons to select a memory voltage. There are three memory voltage options. Adjust the voltage when the machine starts, pause the operation, and the selected memory voltage will be saved.
After turning on the machine, long press the power button for 3 seconds to display the built in menu. Continue holding down the power button to cycle through the menu. Release the power button to stay on the selected screen. Use the white buttons to rotate the menu options, then press the power button to switch to the current voltage, remaining battery level, operating duration, and frequency display.
Menu Options:
Timer: Start/stop selection with up/down buttons. The timer is in a 0-24 hour range with a one minute interval. Once the timer stops, it resets to zero.
Display Mode: Use the up/down keys to select voltage or hertz as the main power display.
Screen Orientation: Use the up/down keys to select left or right operation.
Battery Disconnect: Use the up/down keys to select cancel/close. To reactivate the power, plug in the USB C charging cable.
Exit Menu: Exit the menu page.
Features:
1Ergonomic: Experience the comfort and grip of a real pen with our wireless tattoo pen. Designed with excellent anti slip grooves, it offers a secure hold, even during long tattoo sessions.Compatible with 99% of tattoo cartridges, it ensures an enjoyable and safe tattooing experience. 2Accurate Wireless Pen Drive System: Wireless tattoo pen features a precise direct drive system, eliminating the need for cumbersome accessories. Say goodbye to external tattoo power supplies, foot pedals, and clip cords. 3Versatile And Compatible: Convertible to RCA connection, tattoo pen can be easily connected to an RCA cord, allowing for versatile operation. Whether it's liner or shader, pen is perfect for various tattooing techniques. 4Function: Equipped with a robust coreless motor, tattoo pen offers adjustable voltage from 412V and a memory function with 3 voltage settings. It delivers exceptional power and stability, enabling precise liner and shader.With 2pcs 2000mAh batteries, enjoy 510 hours of continuous use, making it ideal for large area tattoos. The fast charging feature ensures minimal downtime. 5Precision Craftsmanship: Made with precision CNC technology and durable aluminum alloy, tattoo pen is built to withstand the demands of professional tattooing. Its seamless construction guarantees longevity and reliability for years to come. 6Screen: Wireless tattoo machine is designed with 5 menu pages, can set the timer, screen display mode, screen display direction, shutdown, exit menu page, powerful functions.

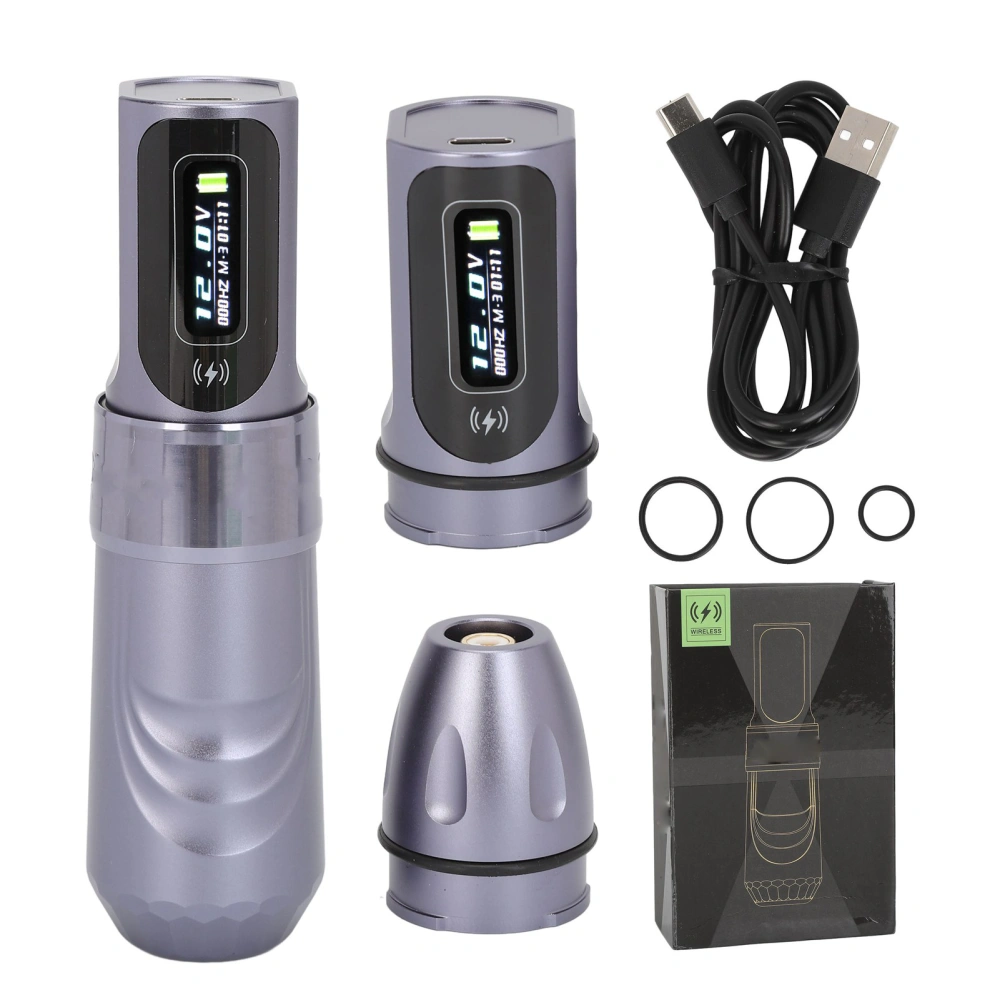

Package List:
1 x Wireless Tattoo Pen
1 x Replacement Battery
1 x RCA Conversion Head
1 x USB Charging Cable
1 x Instruction
3 x Fixing Grommets
