Specification:

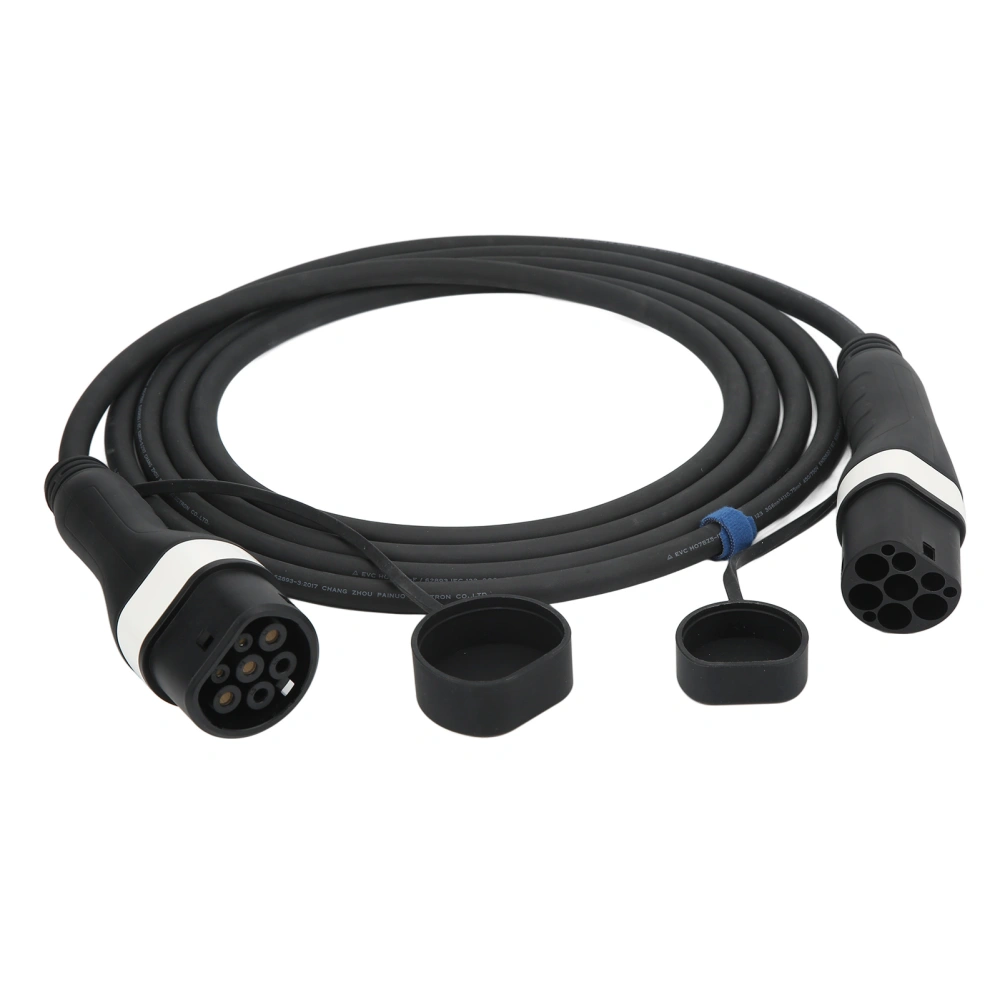

Item Type: EV Charging Adapter
Voltage: 250V
Certification: CE, TUV, UKCA
Charging Port: Type 2 to Type 2
Charger Standard: IEC 62196 2
Line Length: Approx. 5m/16.4ft
Protection Class: IP65
Coupling Insertion Force: >45N<80N
External Force Shock: Can withstand 1m drop and 2t vehicle overpressure
Insulation Resistance: >1000MQ(DC500V)
Terminal Temperature Rise: <50K
Contact Resistance: 0.5m maximum
Contact Bushing: Copper alloy, silver plated
Other Material: ABS, TPU
Working Temperature: -30 to 50
Fitment: Compatible with any Type 2 EV
Features:
1Applicable Model: Charges quickly at 16 amps (3.6kW), and the charging cable is compatible with 16A public and home charging stations. Compatible with Type 2 (IEC 62196 2) EV cars and Type 2 Hybrid Vehicles. 2Important Parameters: Type 2 to Type 2, single phase, maximum output 16A, suitable for . Has passed CE, TUV, UKCA certificate. The EV charging cable supports loads up to 3.6KW. 3Portable Design: Charging adapter with 16.4ft charging cable to easily charge electric cars in the garage. Can be hung on the wall without taking up space. Or take it out in the trunk. 4IP65 Protection: Charging adapter with cap, IP65 waterproof and dustproof, this 5m TPU cable will still work well even in dirty or rainy conditions. 5Premium Material: Silver plating on pins ensures higher conductivity, charging efficiency. TPU cable, highly resistant to bending, heat and cold, anti aging, to ensure longer service life. 6Arc Design: The unique self cleaning design ensures that impurities on the surface of the pins can be removed during each insertion process. Ergonomic design, easy to plug and unplug. 7Easy Use: The car charging interface is TYPE 2 or IEC 62196 2. Plug the male end of the power cord into a charging point or other Type 2 output connector. Finally, insert the female end into the car charging port.
Package List:
1 x EV Charging Adapter
