Specification:
Item Type: 12 Way Fuse Block
Input Voltage: 12-32V
Input Rated Current: 100A
Output Maximum Current: 20A per circuit
Material: PA66 base, PC dust cover, nickel plated copper terminals, stainless steel screws, rubber waterproof gasket, PP stickers, Silicone seals
Main Terminal: M5 threaded stud (100A 32V DC maximum)
Main Wire Conductor: 4-6AWG
Single Wire Terminal: Copper/Nickel Plated 1/4in (6.3mm) (20A 32V DC maximum)
Single Wire Conductor: 12-16AWG
Installation: It can be installed on cars, off road vehicles, RVs, buses, yachts, boats, etc., and accepts ATO or ATC fuses from 1A to 20A.
Uses: It can be directly connected to the line of any electrical appliance in the car or ship, such as: roof lights, car headlights, width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
Features:
1Fuse Function: Each fuse has a rated specification. When the current exceeds the rated specification, the fuse will be blown to protect the electronic equipment from overcurrent damage and protect the circuit. 2Indicator Function: When the red LED light is on, it means that the fuse has been disconnected, and the fuse needs to be replaced in time to continue running, quickly indicate the short circuit and fault location. 3Flame Retardant: The PA66 base has good mechanical strength, insulation, heat resistance and flame retardancy, and is not easy to break, deform, burn and short circuit during use. 4Waterproof Fuse Box: This fuse box has a front dust cover, a waterproof gasket, and a whole body sealing ring, which is suitable for large scale wading vehicles such as off road vehicles, RV, and boats. 5Quick Identification: With a name sticker, it is attached to the electrical appliance we are connected to. When the fuse blows, we can quickly identify which electrical appliance has a problem, saving time and effort. 6Easy Installation: All fastening accessories are made of stainless steel, and the fuse box is fixed with self tapping screws, which is more convenient and safer to install.

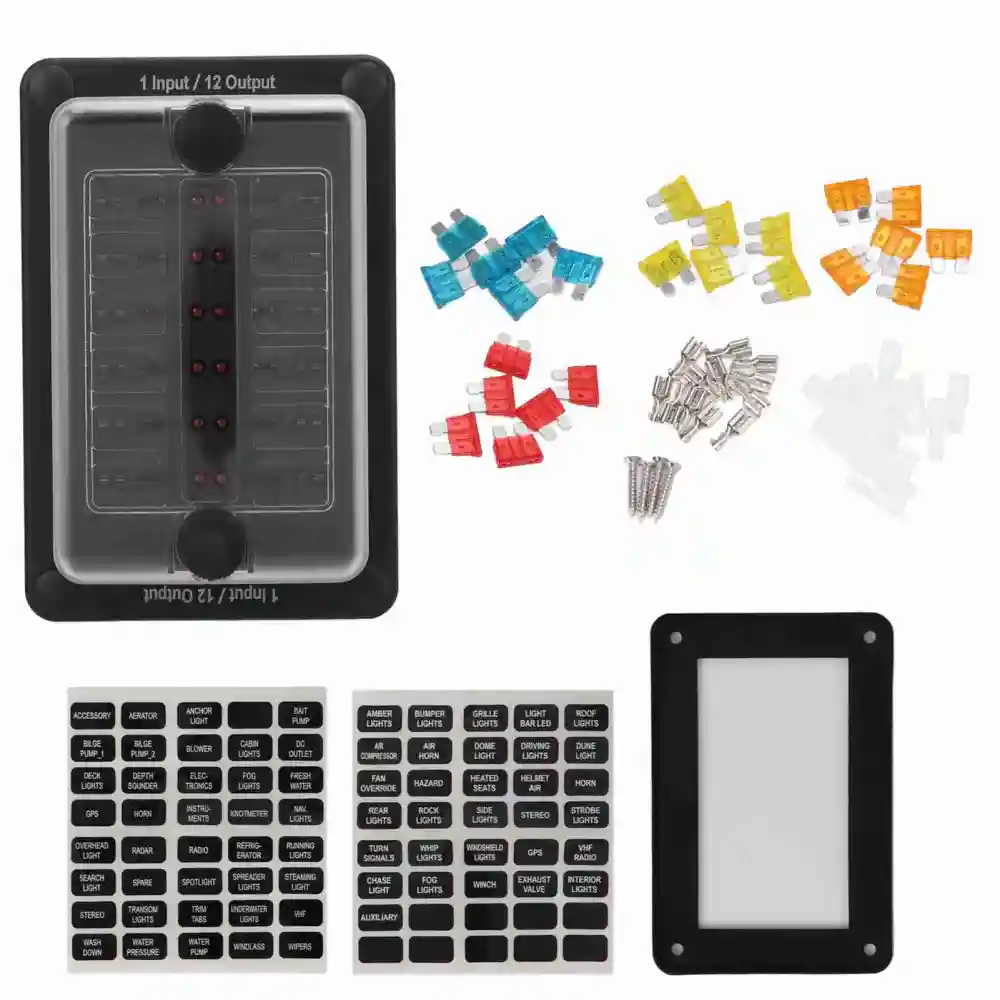

Package List:
1 x Fuse Box
2 x Sticker
4 x Self Tapping Screw
1 x Black Sealing Ring
6 x 20A Fuse Blade
6 x 15A Fuse Blade
6 x 10A Fuse Blade
6 x 5A Fuse Blade
12 x Flat Terminal
12 x Flat Terminal Protective Cover
