Specification:
Item Type: Drop In Beehive Valve Spring
OE Number: PAC 1218
Material: Metal
Outer Spring Outer Diameter: Approx. 1.290in
Coil Binding Height: Approx. 1.140in
Installed Load: Approx. 130lb/59kg
Installation Height: Approx. 1.800in
Open Height: Approx. 1.175in
Open Load: Approx. 318lb/144kg
Spring Rate: 313 lbs/in.
Outer Spring Inner Diameter: Approx. 0.885 in.
Valve Spring Style: Beehive
Fitment:
Fits for all LS Engines
Fits for LS1, LS2, LS3, LS6, LQ4, LQ9, 4.8, 5.3, 5.7, 6.0, 6.2 engine
Fits for Silverado, for Sierra, for Camaro, for Corvette, for TBSS, for CTS V, for GTO, for LM7, Truck
Features:
1OE Number: The referencing OE number of this valve spring kit is PAC 1218, which is molded and designed depend on the original data. 2Fitment: The spring kit is a drop in high performance spring kit for all LS engines, please check your vehicle engine before purchasing. 3Function: The load of the valve spring is 130 lbs, and the open load is 318 lbs, which could upgrade your engine, and provides for more power. 4Premium Material: The spring kit is made of high strength metal material, which is solid, flexible, has high toughness, wear resistant and durable. 5Easy Installation: The high performance valve spring kit should be placed in the engine, you need to take out the worn out spring and install this in the same position.
Package List:

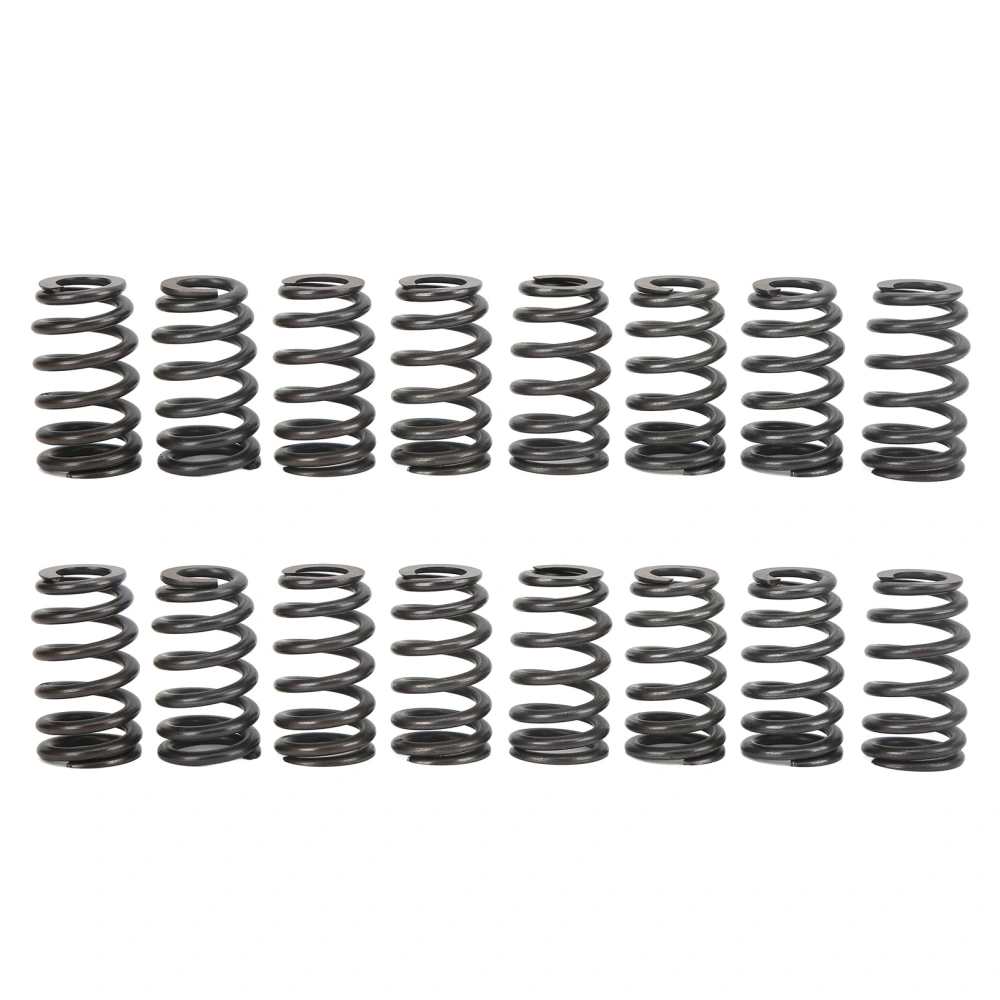

16 x Spring
