Specification:
Item Type: DC DC Battery Charger
Material: Aluminium Alloy
Backup Battery System Voltage: 12V DC
Backup Battery Voltage Range: 9-16V DC
Backup Battery Type: Sealed, Gel, Opening, Lithium Iron Phosphate Battery, Custom
Rated Charging Current: 30A
Maximum PV Input Voltage: 55V DC
Maximum Power Point Voltage Range: 17-36V
Maximum PV Input Current: 27A
Solar Panel Charging Method: Buck MPPT
MPPT Tracking Efficiency: >99%
Maximum PV Input Power: 400W
Generator Starting Battery System Voltage: 12V/24V
Maximum Generator Input Voltage: 32V DC
Maximum Generator Input Current: 35A
Noload Loss: <0.6W
Maximum Charge Conversion Efficiency: 98%
Communication Method: TTL
Working Temperature: -35 to 65
Protection Class: IP32
Features:
1High Tracking Efficiency: The maximum power tracking technology can still track the maximum power point of the solar cell in a complex environment, with faster response speed and higher tracking efficiency, and the tracking efficiency can reach up to 99.9%. 2High Conversion Efficiency: The superior DC DC Battery Charger with MPPT makes use of design of multi phase synchronous rectification buck boost circuit enables high DC DC conversion efficiency in both high and low power sections, up to 98% 3High Performance: The backup battery supports a variety of battery types such as sealed, gel, open, lithium and custom. Supports multiple generator types such as smart generators and traditional generators, and automatically identifies generator types through ignition signals. 4Multiple Charging Modes: There are multiple charging modes such as photovoltaic charging the backup battery alone, generator charging the backup battery alone, photovoltaic and generator charging the backup battery at the same time, photovoltaic charging the starting battery, etc. 5Multifunction: Backup battery charging voltage line loss compensation, which makes the battery charging voltage control more accurate. With backup battery temperature sampling function, battery supports temperature compensation, effectively prolonging the life of the battery. With high temperature charging automatic derating function. 6TTL Communication: Provide technical support for communication protocol to facilitate secondary development and application of users. Support external remote switch to control charging. Parameters can be monitored and set through the mobile phone APP and PC monitoring and setting software.

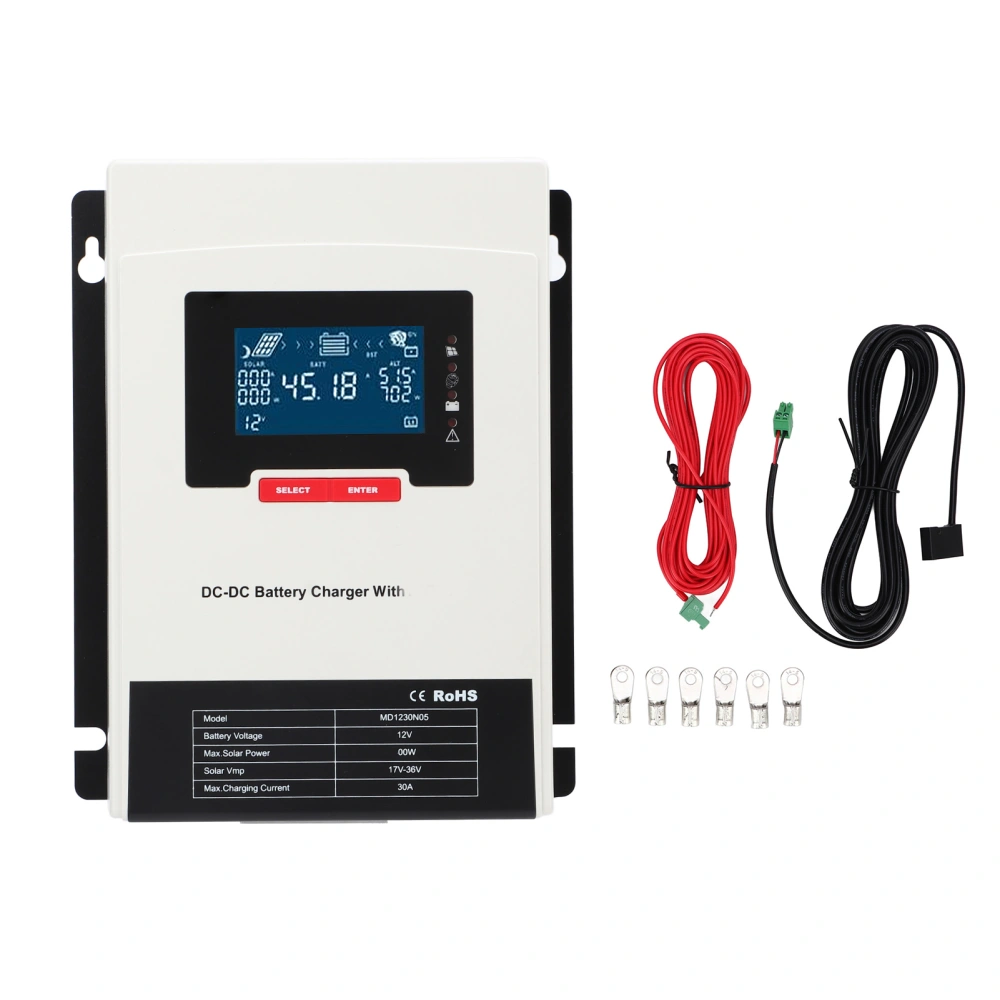

Package List:
1 x Charger
2 x Harness
5 x Terminal
1 x Manual
