Specification:
Item Type: Inline 6 Data Link Adapter Kit
Material: ABS, Aluminum
Features:
- Supports SAE J1708/J1587 and J1939/CAN data links
- Both CAN ports auto detect between 250 and 500 kbps
- Supports USB full speed port at up to 2M baud rate
- USB cable includes thumbscrews for secure mounting to INLINE 6
- Supports RS 232 PC serial port at up to 115.2k baud rate
- Fully compliant with TMC's RP1210 standard
- Small enough to fit in pocket
- Attractive black powder coated aluminum housing provides ruggedness
- Derives 8 V to 50 V DC power from vehicle
- Controlled by advanced 140 MHz 32bit for Freescale processor for maximum speed and performance
- Includes 6 LEDs to indicate status of power, USB, RS232, J1708/J1587, and two CAN communication ports
- Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
- INLINE 6 is certified to meet European CE requirements
- Rated for -40C to + 85C operating temperature
- INLINE 6 meets rigorous in cab environmental test requirements
Note: There are 2 software options in the link, the previous software version is V7.62, and now there is the latest software V8.7.
V7.62 software included in the CD.
Buyers who choose V8.7 software when placing an order, contact us after receiving the goods, you can provide a link, you need to download it yourself
V8.7 software does not have a registered machine, you need to return the ID, copy, and send it to us for activation.
INLINE 6 Quick Start Guide Introduction:
The INLINE 6 is a highly reliable datalink adapter that can be used on a wide range of applications to communicate with vehicle systems via SAE J1708/J1587 and SAE J1939 protocols. Please note that the INLINE 6 is designed to be used with RP1210 compliant software.
Minimum System Requirements
Microprocessor: For Pentium 500 MHz
Memory: 2 GB CD Drive
Operating System: For Win 7, For Vista, For XP SP3
To Install the INLINE 6 Software Driver
Insert the INLINE 6 driver CD into your computers CD ROM drive.
Run INLINE6 Driver Setup.exe
If for Win folder opens, select INLINE6 Driver Setup.exe
Note that on some systems the autorun settings may be set to have the installation to just begin executing upon CD insertion.
IF YOU SEE: For Win XP, A message appear stating The software you are installing has not passed for WinClick Continue Anyway. Click Finish when installation is complete.
To Install the INLINE 6 USB Hardware:
To install the INLINE 6 USB hardware, power up the INLINE 6 by plugging in the USB cable provided with the kit to the INLINE 6 and the PC.
For Win XP: The Found New Hardware wizard should be displayed.On the first screen, select Install the software automatically (Recommended). Click Next to continue. A message may appear This software has not passed Win Testing......Select Continue Anyway. Click Finish when installation is complete.
For Win VISTA/ For Win 7: No action is required. The system tray should display a balloon stating Installing Inline 6.
NOTE: If there is a previously installed INLINE 6 driver, you may need to remove the older driver before proceeding.
After you have connected your INLINE 6 to your computer and the computer recognizes it as a valid device, you may need to update the firmware in the adapter. Please see the section below on using the INLINE 6 Reflash Tool
Using Your INLINE 6
To use the INLINE 6, you must select it from within the application you areusing. Each application has a unique method for selecting datalink adapters.Please refer to the applications documentation for instructions on selectingRP1210 compliant adapters.
To Uninstall the INLINE 6 Software Driver
For Win XP: To remove the INLINE 6 driver, click the Start button on the task bar, and then navigate to Control Panel. Navigate to Add or Remove Programs Click on the entry Inline6. Click the Remove button. This will start the uninstall process. Wait until the uninstall process has completed before proceeding.
For Win VISTA/ for Win 7: To remove the INLINE 6 driver,
click the Start button on the task bar, and then navigate to Control
Panel. Navigate to Programs/Features Click the entry Inline6.
Click Uninstall at the top of the Programs/Features window. This will start the uninstall process. Wait until the uninstall process has completed before proceeding.
Features:
1USB Full Speed Port: INLINE 6 can communicate with your PC via 9pin serial connector. Communication with your PC is also possible via Universal Serial Bus (USB) via a 4pin standard connector. 2Data Link: The INLINE 6 adapter connects to the vehicle power supply, SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25pin serial connector. 3RP1210 Standard: INLINE 6 will work for INSITE, for PowerSpec and for Calterm III software applications. Can also be used with any other software application that is fully RP1210 compliant. 4Easy Use: Each INLINE kit contains a data link adapter, basic cable and INLINE PC software driver. Load the software drivers, connect all the hardware, and you're ready to start a new era of data link adapters. 5Long Durability: Attractive black powder coated aluminum housing provides sturdiness. Rated operating temperature from 40C to +85C meets stringent cab environmental testing requirements.
Package List:

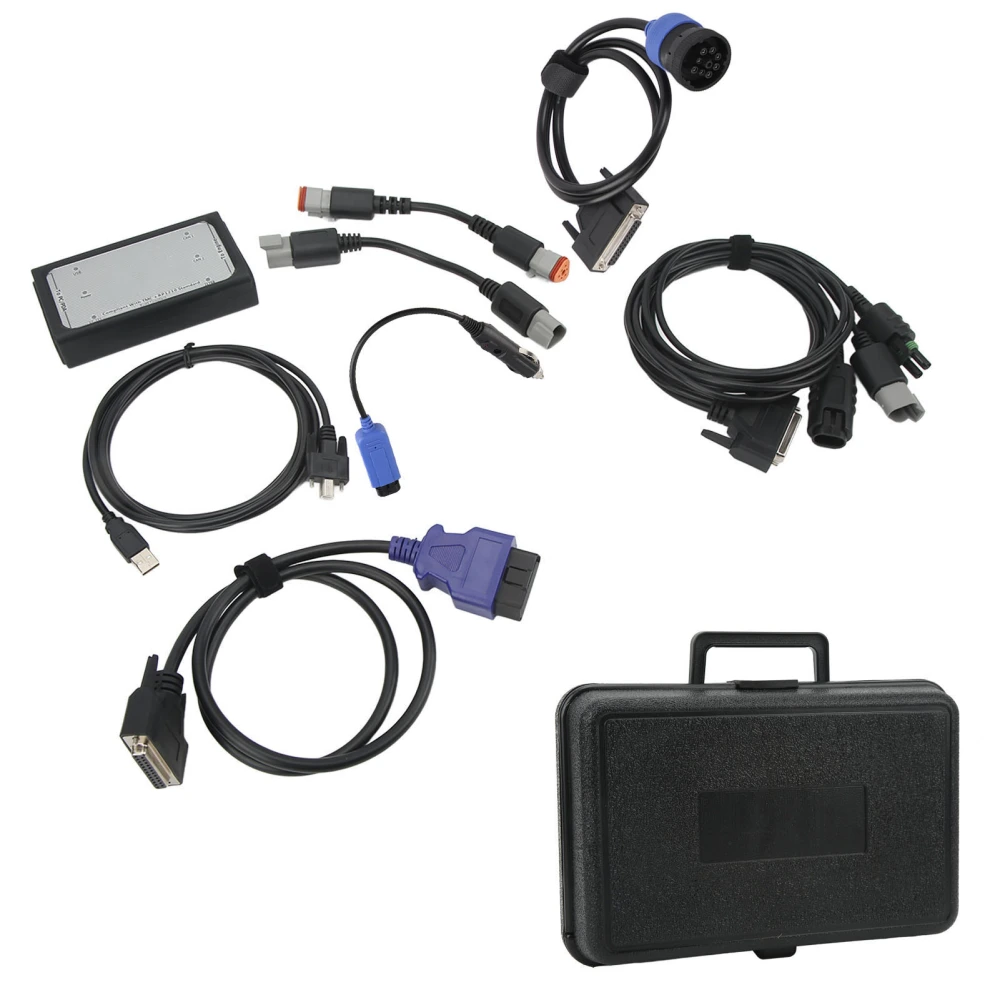

1 x Inline 6 Data Link Adapter
7 x Cable
1 x CD
1 x Storage Box
2 x Manual
