Specification:

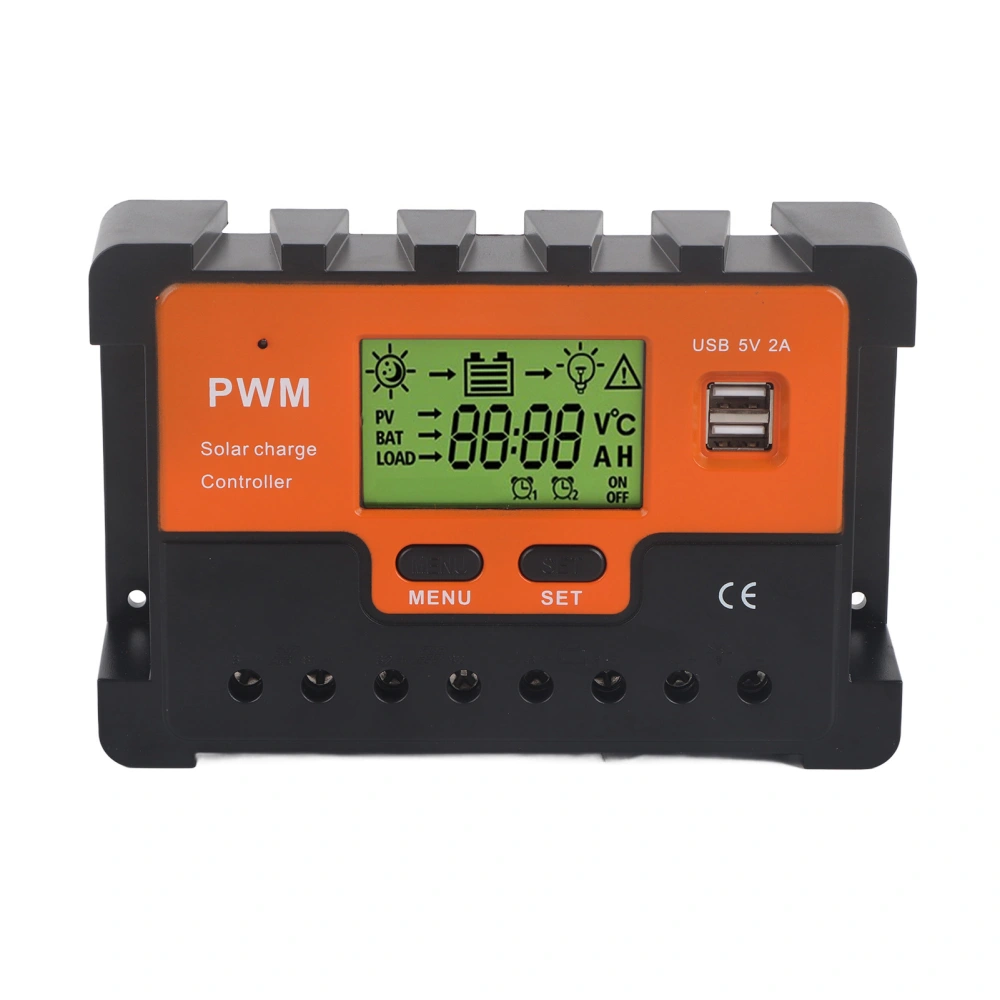

Item Type: PWM Solar Controller
Material: ABS
Charging Type: PWM
Working Voltage: 12V 24V 48V can be manually selected
Maximum Charge and Discharge Current: 50A
Maximum Solar Battery Input Voltage: 100V
USB Output Voltage: 5V 2A
Standby Consumption: 12mA
Working Temperature: -20 to +55
Terminal Wire Gauge: 28-10AWG
Waterproof Grade: IP32
Size: Approx.17x11cm/6.7x4.3in
Applicable Scenarios: Solar photovoltaic systems such as home power generation, base station, RV, yacht, ship, etc.
Features:
112V 24V 48V Systems: The solar controller adopts 12V 24V 48V systems, the voltage can be manually selected, using temperature compensation, charging parameters can be automatically adjusted. 2PWM Charging: Adopt 3 stage PWM charging algorithm, to perform periodic or over discharge equalization charging on the battery, effectively preventing battery imbalance and vulcanization. 3Wide Compatibility: Using advanced load starting method, large capacity loads can also be started smoothly, with a variety of load working modes, suitable for different types of loads. 4Multiple Protection: The solar controller provides overcharge, overdischarge, overload protection, short circuit protection, with TVS light protection, safe and reliable. 5Convenient Operation: Equipped with LCD screen and one key man machine interface, with backlit and power off memory function, can clearly display status and data, easy for operation.
Package List:
1 x PWM Solar Controller
1 x Manual
