Specification:
Item Type: Diagnostic Adapter
Material: ABS + Metal
OE: 478-0235
Version: WIFI version
Support Multi Languages: English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish
Compatible Vehicle: For Trucks, Excavators, Air Compressors, Ships, Drilling Rigs
Software Version: 2022A
Operate System: for Windows 7 8 10
Multifunction:
- ECM Summary screen lists every control module on equipment
- Being tested and gives information on these modules.
- Fast hookup and real time display of systems status. Displays, readings such as rpm, boost, pressures, temperatures, etc. for Easy troubleshooting.
- Identifies faulty sensors, harness connectors, and system parameters which are out of specification.
- To help dealer identify problems without visiting machine.
- Identifies intermittent sensors and wiring problems during Machine operation and keeps a record of each one. Shows when problem occurred and how often it happened.
-
Added information to allow customer to assist dealer in diagnosing and repairing problems. (Troubeshooting Help is not built in with in the program, you will still need go back to books in order to follow a repair description and steps in each Fault Code display within the program). English and metric units of measure integrated help file to easy learn the How To around
Description:
Communication Adapter ET4 478-0235 is the latest generation of the Communication Adapter group, and replace the Communication Adapter ET3 317-7485
This is the only recommended communication device, and the only data link device that will allow you to properly communicate with a CA engine on dual datalinks.
Communications Adapter 4 Features:
-
Allows communication between service tools and engine controls using various data links such as J1939/11, DeviceNet (future release), CT DataLink, and J1708 (ATA) vehicle networks;
- Flash program allows adapter firmware upgrades as additional features become available;
- Uses J1939/11, high speed data link (part of ADEM III controls), substantially reducing flash times;
- Automatically selects J1939/11 when flashing the engine (reduces the flash time approximately 80%, from 14 minutes to 3 minutes).
What's New -2022A
For Microsoft for Windows 11 Compatibility
Service tool testing has been performed and the service tool is compatible with for Windows 11.
ECM File Replacement Compare Feature:
The service tool now has an ECM Replacement File Compare feature for troubleshooting purposes. This feature allows the user to compare one ECM replacement file with another from within the ECM Replacement feature screen. The feature will highlight the differences between the selected files as a whole or the user may select the only show differences checkbox.
Configuration Group Headings on ECM Replacement Feature
In order to help the user find ECM replacement configuration items easier, configuration items in the ECM Replacement, Fleet Configuration, and Product ECM features are now grouped under their group sub headings, as is done in the main configuration feature.
Features:
1Compatible Vehicle: ET4 diagnostic adapter fits for Trucks, Excavators, Air Compressors, Ships, Drilling Rigs. Replacing manufacturer part number for reference is 4780235. 2Operate System: The software version of this ET4 diagnostic tool is 2022A, support for Windows 7 8 10 operate system, help identify problems without visiting machine. 3Real Time Display: ET4 communication adapter supports quick connections and real time display of system status, showing readings such as speed, boost, pressure, temperature, etc. for easy troubleshooting. 4High Sensitivity: Diagnostic tool can identify intermittent sensor and wiring problems during machine operation and keeps a record. Shows when and how often problems occur. 5Support Multi Languages: Truck diagnostic tool supports English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish, to meet the needs of users in different regions.

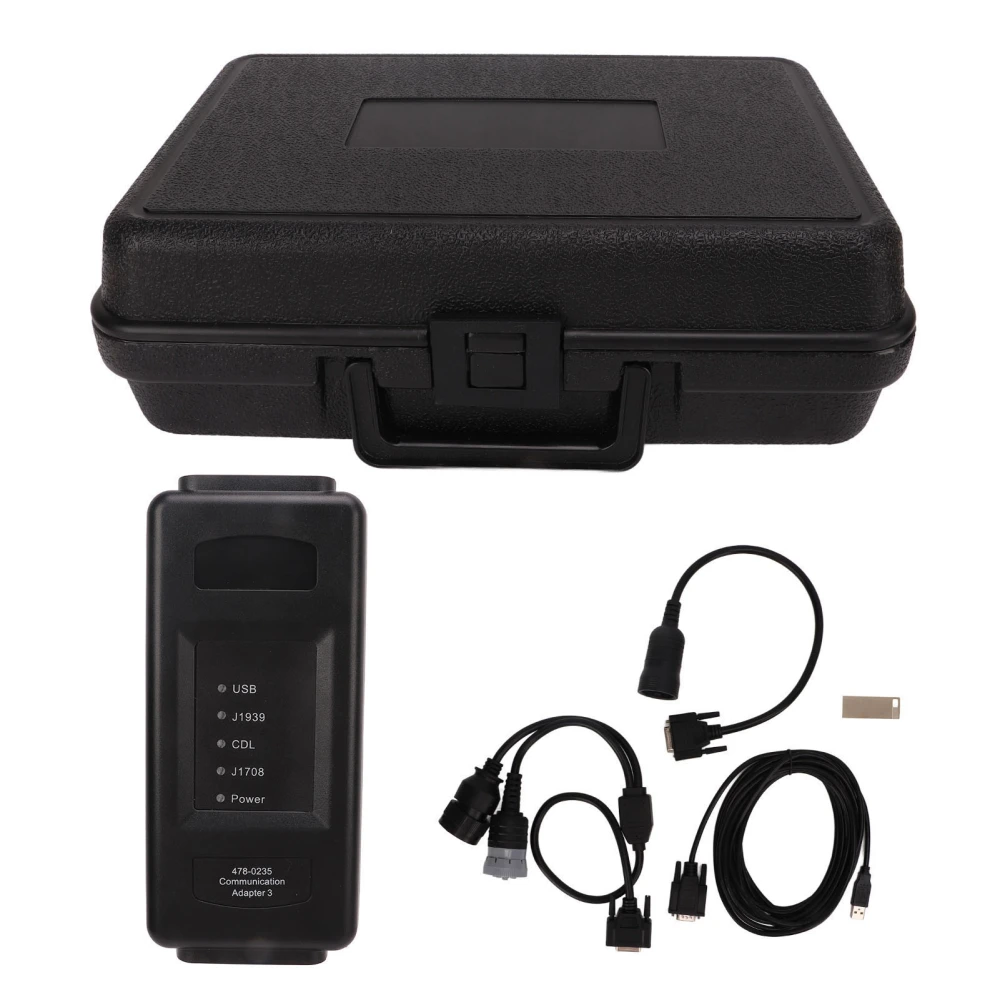

Package List:
1 x Diagnostic Adapter
1 x CD
3 x Cable
1 x Tool Storage Box
1 x U Disc
1 x Key Ring
