Specification:

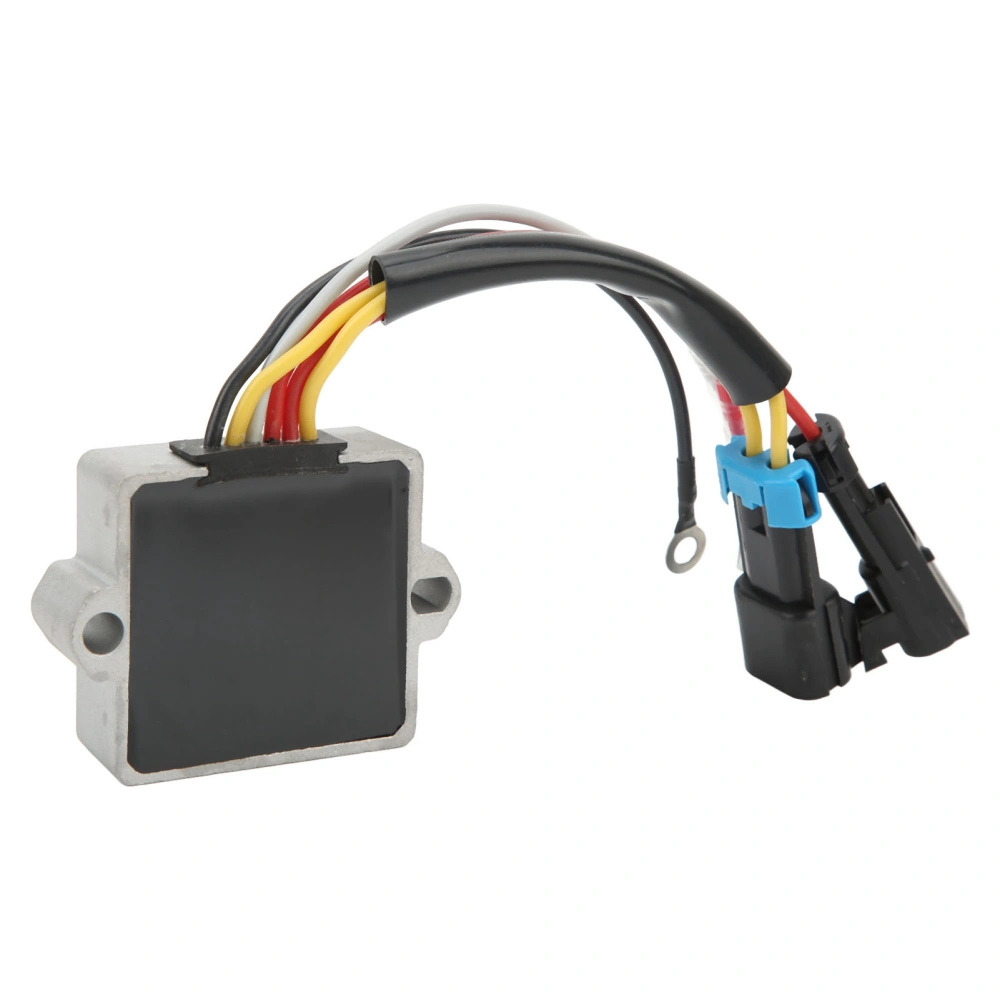

Item Type: Voltage Regulator
Material: Metal
Connector: 6 wire
OE: 830179T1, 830179T2, 854515T2, 883072T1, 883072T2, 893640-002, 893640T01, 18-5732, 194 2115K1, 194 3072K1
Fitment:
For 25 hp (Elect.Start 4 Stroke) 2 0G760300 thru 1B344298 1999-2005
For 30 hp (Elect.Start 4 Stroke) 3 0T178500 thru 0T178499 2002-2005
For 30 hp (EFI 4 Stroke) 3 0T409000 thru 1B344298 2002-2005
For 40 hp (Elect.Start 4 Stroke) 3 0T178500 thru 1B344298 2002-2005
For 40 hp (Elect.Start 4 Stroke) 4 0T178500 thru 0T598999 2002-2005
For 50 hp (Elect.Start 4 Stroke) 4 0T178500 thru 0T598999 2002-2005
For 50 hp (EFI 4 Stroke) 4 0T409000 thru 1C050252 2005-2007
For 60 hp (Elect.Start 4 Stroke) 4 0T178500 thru 0T598999 2002-2005
For 60 hp (EFI 4 Stroke) 4 0T409000 thru 1C050252 2005-2007
For 135 hp 6 0G960500 and Up 2000-2005
For 140 Jet 6 0G960500 and Up 2000-2005
For 150 hp (2 Stroke) 6 0G960500 thru 0T408999 2000-2005
For 175 hp (2 Stroke) 6 0G960500 thru 0T408999 2000-2005
For 200 hp (2 Stroke) 6 0G960500 thru 0T408999 2000-2005
For 200 hp (EFI) 6 0G960500 thru 0T408999 2000-2005
For 240 hp (Sport Jet) 6 0E373939 thru 0E406399 2000-2005
Features:
1Applicable Model: Voltage regulator rectifier is professionally designed for 25HP to 240HP 4 Stroke 2 Stroke Outboard, great replacement. 2OE Number: Part numbers for reference are 830179T1, 830179T2, 854515T2, 883072T1, 883072T2, 893640002, 893640T01, 185732, 194 2115K1, 194 3072K1. 3Battery Protection: The voltage regulator rectifier can prevent the battery from overcharging, thus extending the service life of the battery. 4High Performance: The voltage rectifier is made of high strength aluminum, with better heat dissipation design and longer service life. 5Waterproof, Shockproof: High grade laminated materials and electronic components are used to improve the performance. The integrated full sealing process makes the rectifier waterproof and shockproof.
Package List:
1 x Voltage Regulator
