Specification:

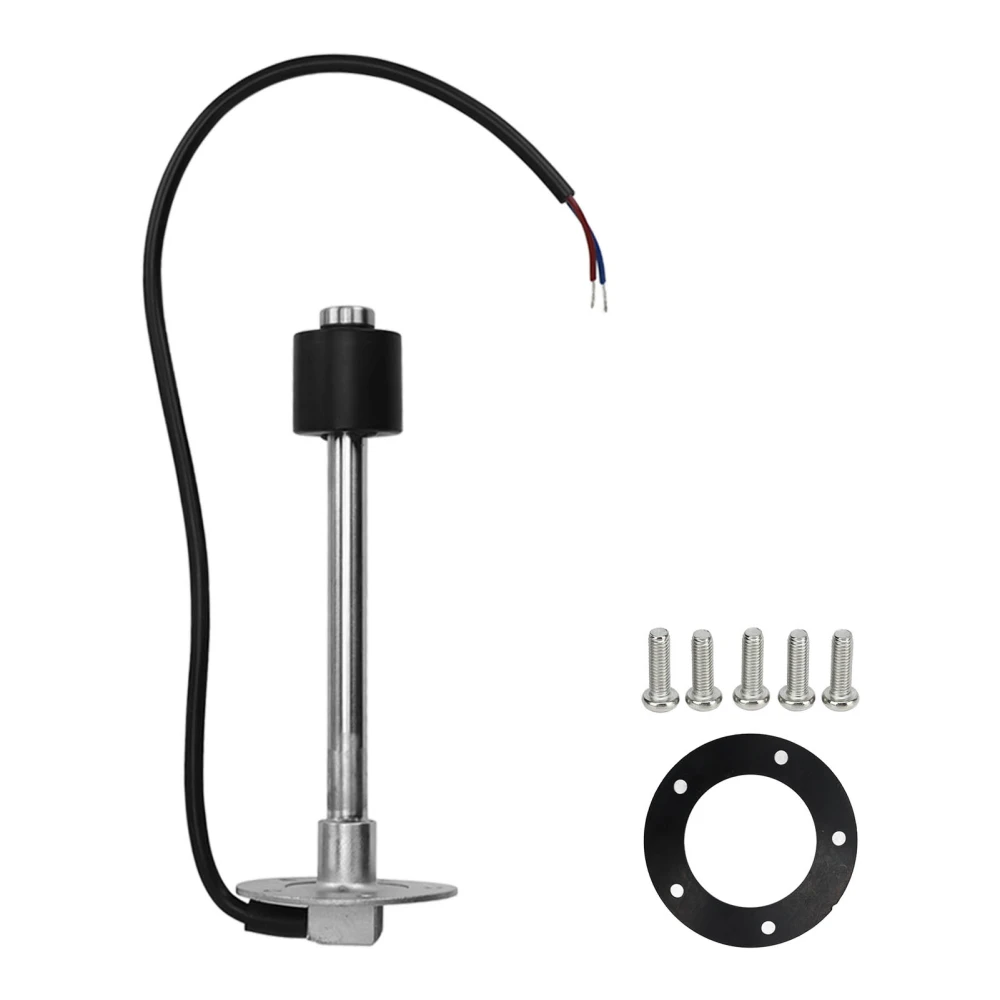

Item Type: Fuel Sending Unit
Body: 316 Stainless Steel
Cable: PVC
Float: NBR
Installation Method: Standard SAE 5 hole type
Screw Size: M5 x 0.8
Aperture: Approx. 5 mm / 0.20in
Product Specification: Approx. 7in / 180mm
Recommended Water Tank Size: Approx. 190 to 203mm / 7.5 to 8in
Resolution Range: Approx. 10mm / 0.39in
Fuel and Water Level Sensor Type: Resistance
Rated Current of Alarm Switch: 500mA
Protection Grade: IP67
Operating Temperature: - 40 to +185 (- 40 to +85)
Applicable to: Ships, yachts, trucks, RV
Features:
1316 Stainless Steel Material: Made of premium stainless steel material, this fuel sending unit is strong and sturdy, rust and corrosion resistant, which ensures a long life span. 2Reed Tube: The water level sensor is a reed tube, which is durable and reliable, and the output signal is stable. 3Wide Application: This fuel sending unit is suitable for ships, cars, trucks, buses and the ocean. It is applicable to oil level gauge, water level gauge and any liquid without impurities. 4Easy to Install and Connect: The fuel sending device is equipped with washers, mounting screws, text instructions and illustrations; The wiring instructions are simple and easy to understand. 5Ideal Replacement: This fuel sending unit's professional performance making it an ideal replacement for the old and damaged parts, you can also take it for backup!
Package List:
1 x Fuel Sending Unit
5 x Screw
1 x Washer
