Specification:
Item Type: Marine Fuel Sending Unit
Product Material:
Body: 316 stainless steel
Cable: PVC
Float: NBR
Installation Method: Standard SAE 5 hole type
Screw Size: M5 x 0.8
Hole Diameter: Approx. 5mm / 0.20in
Product Specifications: Approx. 275mm / 11in
Recommended Tank Size: 285 ~ 300mm / 11.2 ~ 11.8in
Output Signal: European standard 0-190ohms (0ohms when no load, 190ohms when full load)
Resolution Range: Approx. 21mm / 0.83in
Fuel and Water Level Sensor Type: Resistor
Alarm Switch Rated Current: 500mA
Protection Level: IP67
Operating Temperature: -40 ~ +185(-40 ~ +85)
Applicable: Ships, yachts, trucks, RV
Features:
1DURABLE MATERIAL: The tank transmitter is made of heavy duty 316 stainless steel, which possesses corrosion resistance, good mechanical properties and high strength 2STABLE AND RELIABLE: The water level sensor is reed pipe, durable and reliable, stable output signal. The tank does not need to be adjusted 3WIDE APPLICATION: Fuel level sensors are suitable for boats, cars, trucks, buses and marine applications. Suitable for oil level gauge, water level gauge and any liquid without impurities 4EASY TO INSTALL AND CONNECT: Fuel level transmitter with washer, mounting screw, text and graphic instructions; The wiring instructions are easy to understand. The installation will take a total of about 15 minutes to get your meter working again 5FOR DIFFERENT TANKS: To keep the transmitter from touching the bottom of the tank, the transmitter length should be in less than the tank depth if it is a plastic tank, or 0.5in less than the tank depth if it is a metal tank
Package List:

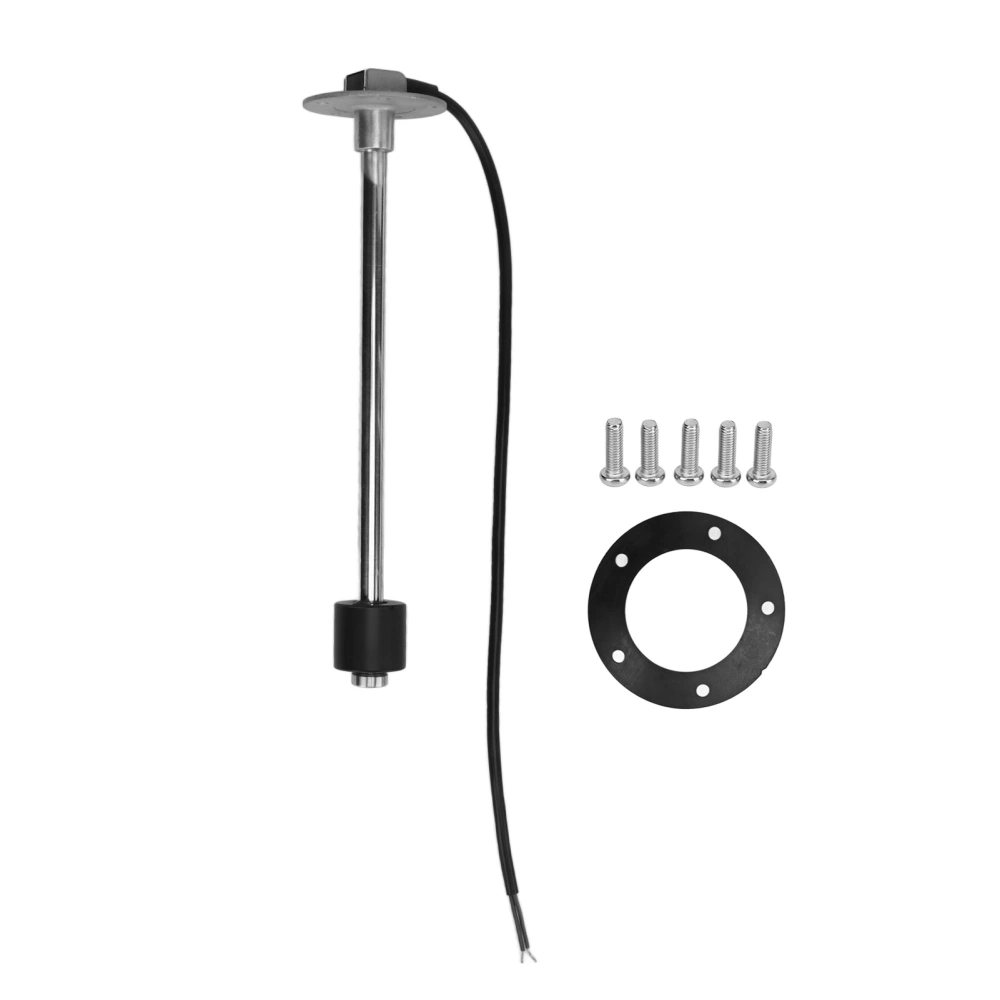

1 x Fuel Sending Device
5 x Screw
1 x Gasket
