Specification:

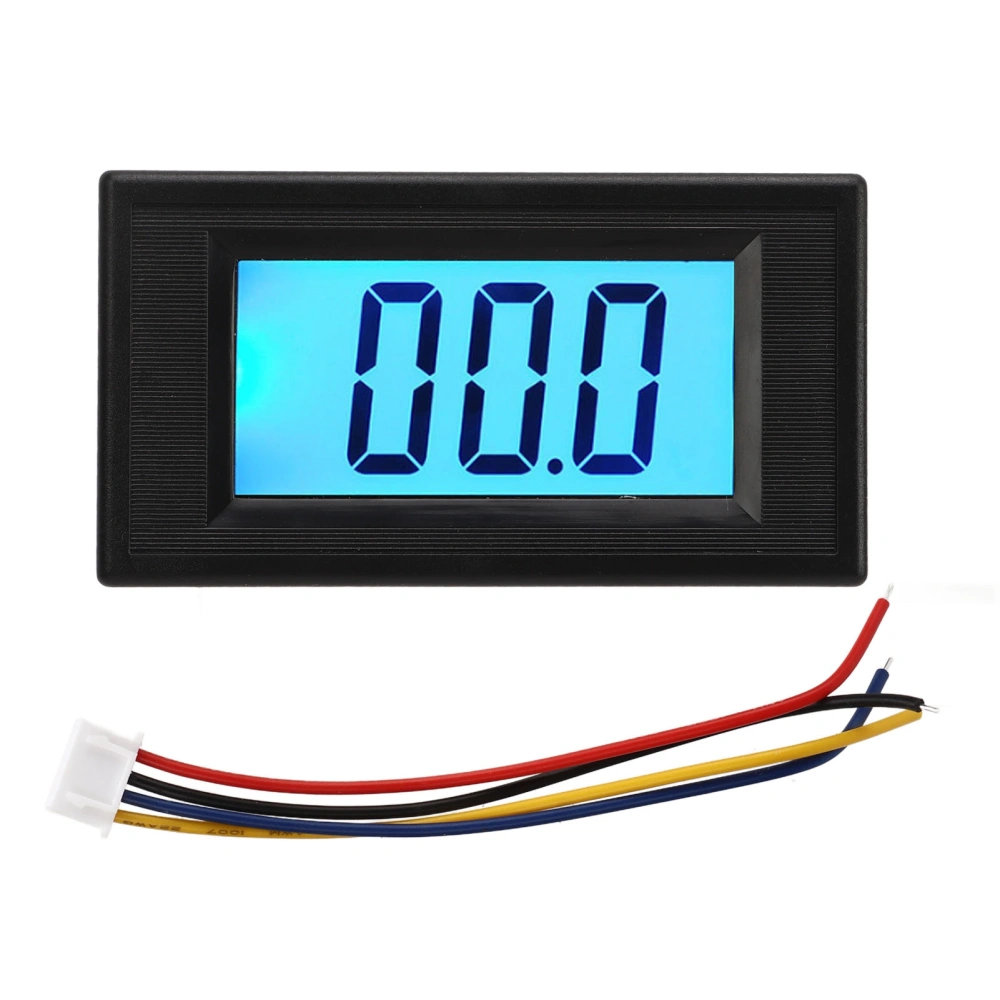

Item Type: Battery Monitor
Material: ABS
Voltage Range: 200V Test range (v): +/-0-199.9, resolution (v): 0.1V, resistance () >1M
Operating Current: <200mA
Size: Approx. 79x43x15 mm/3.11x1.69x0.59in
Mounting Hole: Approx. 76x39.5mm/2.99x1.56in
Display Mode: LCD with blue backlight
Measurement Accuracy: 0.5% (2 bits)
Measurement Rate: 2 times/s
Overrange Display: "1" or "-1" is displayed in the first place, and the last three digits are not displayed
Working Conditions:
Working Temperature: -10~+50C
Working Humidity: 10~80% (non-condensing)
Working Air Pressure: 80~106kPa
Sunlight: No direct exposure
Features:
1Main Functions: Measure and display voltage, with range of DC 0200V, good stability, high accuracy, strong anti interference ability. 2Backlight Display: The voltmeter adopts LCD blue backlight, clear reading, and the voltage parameters can be clearly seen even when used at night. 3Compact Design: Small and lightweight, easy to carry and use, easy to install, does not take up much space, practical and useful, 4Power Protection: With anti connection function, it ensures that it will not burn out, operate more safely, and protect the safety of the car. 5Easy Installation: Compact designed, good sealing waterproof shell, anti collision design, with exquisite craftsmanship and long service life.
Package List:
1 x Battery Monitor
1 x Cable
