Specification:
Item Type: Parking Reversing Lamp Camera
Material: ABS
Photosensitive Chip: 1/3 PC4089
TV System: PAL NSTC reference line on/off switch function
Default rearview with ruler
Camera Pixels: 762(H)x504(V)
TV Lines: 800 TV Lines
Camera Angle: 170 Wide Angle, Horizontal Angle 130 Degrees
Photosensitive Area: 3.8 x 2.9mm/0.15x0.11in
Shutter Speed: 1-1/12000
Gamma Value: 0. 45
Minimum Lumen Value: 0.01 Lux/F=1.2 (0 Lux With Ir On)
Operating Current: 130mA
Working Voltage: 12V
Operating Temperature: -20C - 75C, RH 95% Maximum
Waterproof Grade: IP68
Fitment:
Replacement for Decia Dookker 2012-2021
Fits for Kangoo 2007-2021
Fits for Citan 2012-2021
Features:
1Applicable Model: The parking reversing lamp camera is a replacement for Decia Dookker 20122021, for Kangoo 20072021, for Citan 20122021. 2Wide Angle Design: Provide a 170 wide angle with 130 degree horizontal view, design with 3rd brake light, CCD sensor, it can present real natural color images. 3High Brightness: Equipped with infrared lights, highly visible, sufficient brightness even on the darkest moonless nights, it also can assist the driver to see the road clearly. 4Reference Line: With PAL NSTC reference line design, used to assisted in reversing operation, the high resolution camera provides you with a clear rear view. 5IP68 Waterproof Design: With advanced IP68 waterproof and dustproof rating, good sealing performance. Can be used in all weather conditions.

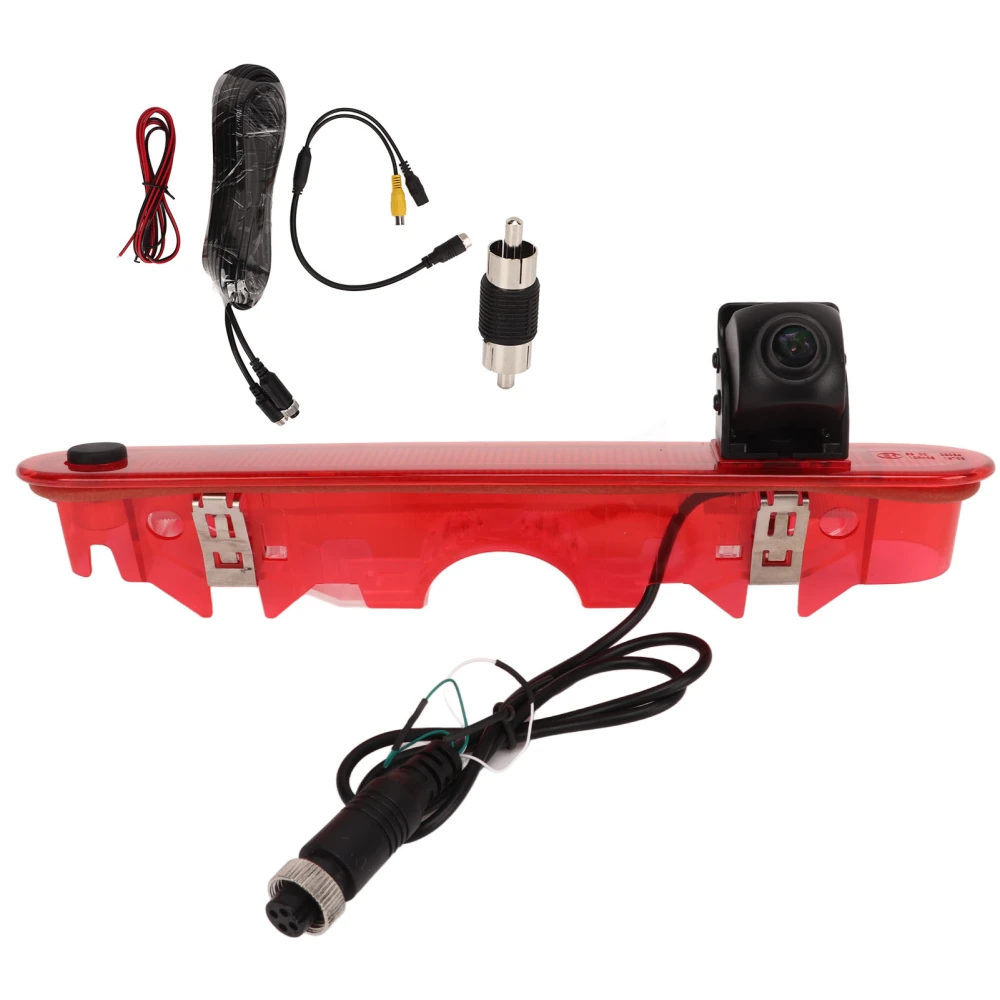

Package List:
1 x Camera
3 x Wiring Cable
1 x Connector
1 x Manual
