Specification:
Item Type: Ultrasonic Anemometer
Material: ABS
Wind Speed Range: 0~40m/s
Wind Speed Precision: 2% (at 12m/s)
Resolution: 0.01 m/s
Measurement Unit: m/s
Wind Range: 0~359.9
Resolution: 0.1
Temperature Measurement Range: -20C~+75C
Temperature Measurement Accuracy: 0.5C (at 12m/s)
Temperature Resolution: 0.1C
Measurement Unit: C
Humidity Measurement Range: 10%~99.9%
Humidity Measurement Accuracy: 2%RH (25C)
Humidity Resolution: 0.1%RH
Pressure Measurement Range: 30000~ 110000 Pa
Altitude Measurement Unit: m
Altitude Measurement Range: +9000m~ 0m
Waterproof Grade: IP65
Working Temperature: 20C~ +75C
Storage Temperature: -30C~ +80C
Working Humidity: <5%~100%
Electromagnetic Compatibility: IEC60945
Input Source: 10.5 VDC ~ 40.5 VDC
Features:
1Function: The ultrasonic anemometer is used to measure wind speed and direction, temperature, humidity, air pressure and altitude. 2Parameter: Two electrical output, RS485 and RS232, configurable baud rate up to 38400 (4800, 9600, 19200 and 38400), standard for NMEA sentences output. 3Applicable Software: Can be used in PC with supplied PC software, and can also be used for Land Applications with ONWA Weather software. 4Practical: Every channel output is isolated, support for Modbus protocol for industry use, and support for MDA sentence: Meteorological Composite (obsolete). 5Easy Installation: No moving parts, does not need constant maintenance, four position sensor probe, 20m power harness, easy installation with mounting accessories.

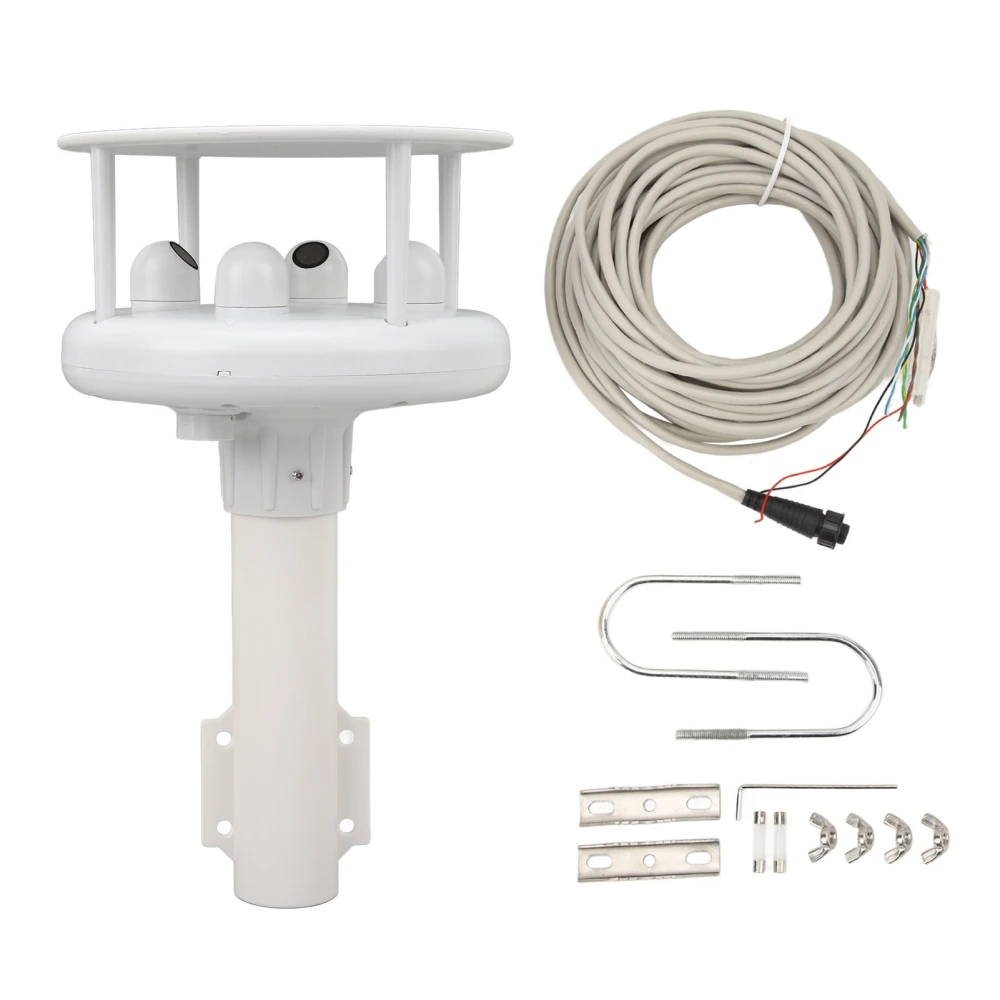

Package List:
1 x Ultrasonic Anemometer (With Mounting Base)
2 x Fuse
1 x Power Cable Harness (20m)
1 x Pack of Mounting Tools (9 Accessories)
1 x Instruction Manual
