Specification:
Item Type: Brushless DC Controller
Material: ABS + Metal
Voltage: 48V to 72V
Overvoltage: 91V
Low Voltage: 63V
Bus Current: 200A
Phase Current: 400A
Speed: 4500
Number of Polar Pairs: 5
Hall Angle: 120
Limit Current: 80A
Rated DC Current: 100A
Maximum Power: 8600W
Magnetic Flux Attenuation: 150%
Rated DC Current: 340A
Waterproof Grade: IP67
PC programmable support (with supporting debugging software)
Function:
- S mode
- P mode
- R mode
- LIN
- Temps
- Theft prevention
- High Brake
- Three Speeds
- CAN BUS
- Kickstand
Default functions of the controller:
Hall plug, reversing, 0V low brake, accelerator (0-5V), 12V high brake, ignition, single wire, Hall meter cable, program port, three speed, sports mode, parking, anti theft, charging regeneration, weak magnetic current.
EM series controller is a sine wave type controller, which is a weak magnetic brushless DC controller. Generally, it is better to match QS motor. If you want to match a new motor, some parameters need to be tested by yourself.
Suitable for 1000-3000W motors
Features:
1Outstanding Performance: The brushless DC controller features high strength accessories, improving work efficiency and offering strong start and climbing force. 2Precise Control: The electric bike brushless controller provides precise motor control, significantly increasing motor speed and power. 3Compatible Motors: The sine wave controller has a stable effect and is compatible with QS in wheel motors or QS medium drive motors, ensuring smooth operation. 4Battery Protection: The high power controller can effectively protect the battery and extend its lifespan, while increasing the scooter's overall range. 5Durable Construction: Made of robust ABS and metal materials, the controller boasts high temperature resistance and a strong structure, ensuring long lasting and stable use.

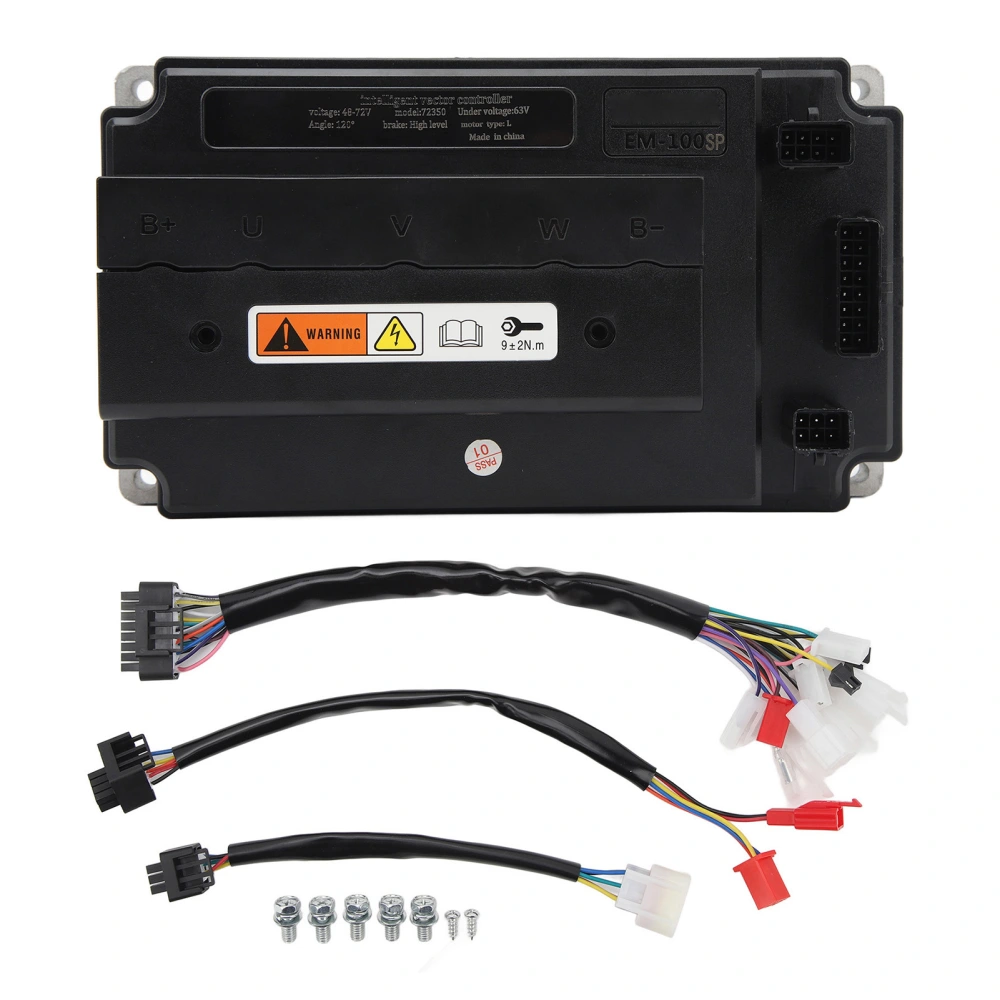

Package List:
1 x Controller
3 x Connection Line
7 x Screw
