Specification:
Item Type: Programming Cable Connector
Material: ABS
Part Number: CR12 8 001, MSCHRY128
Product Description:
The 12+8 adapter is for Autel's bypass of the car security gateway module (SGM), which limits aftermarket scan tools to only reading DTCs and viewing data.
2018 and newer, replacement for Fiat now have the security gateway module or SGM. This SGM does not allow your scan tool to have bi directional control of your vehicle. For Autel provides a cable that bypasses the SGM. The new 12+8 diagnostic cable communicates with the latest models replacement for Fiat and replacement for Alpha vehicles.
Fits:
This cable adapter works with for Autel Maxisy series scanners such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, for Maxisyy Elite and more.
Function:
- Used in conjunction with for Autel MaxiSys scanners to diagnose post 2018 replacement for Renegade Wrangler
- Most 2018 and newer for FCA vehicles include the security gateway module.
Expect to see this message when scanning vehicles using the security gateway module:
Device cannot communicate with control unit
The location of the SGM varies, but is usually located on the side kick panel, passenger side near the glove box, or behind the radio.

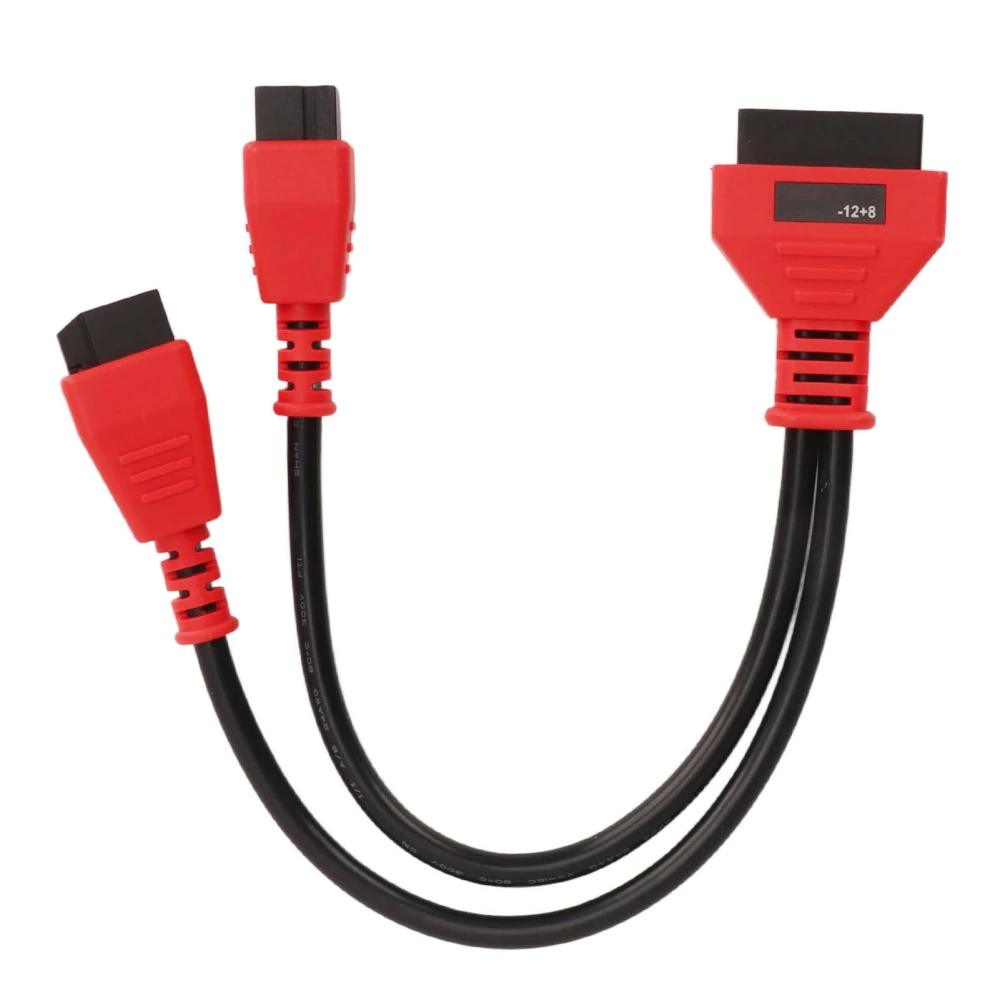

OBDII cable adapter for Autel maxisys, replacement for Fiat, replacement for Alfa 12+8
Accessing replacement for Fiat vehicles with the security gateway module
Enabling read and clear codes
Perform proactive testing
Replacement for Fiat vehicles need access 80% of the time for 2018
Replacement for Fiat vehicles require full access 2019
12+8 adapter is required for vehicles equipped with the security gateway module:
Replacement for Promaster 2013+
Replacement for Fiat 500x 2015+
Replacement for Promaster City 2015+
Replacement for Renegade 2016+
Replacement for Alfa Romeo Giulia 2017+
Replacement for Cherokee 2017+
Replacement for Wrangler 2018+
Replacement for Trucks 2018+
Replacement for Wrangler (JL Body only, not JK) 2018+
Replacement for Journey 2018+
Replacement for Grand Cherokee 2018+
Replacement for Pacifica 2018+
Replacement for Fiat vehicles 2019+
Replacement for FCA vehicles 2020+
Features:
1Wide Compatibility: Cable adapter can be used for Autel Maxisy series scanners, such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, for Maxisyy Elite, etc. 2Part Number: Car diagnostic cable replace part number are CR12 8 001, MSCHRY128 for reference. Please double check the part number of your item to ensure perfect fit. 3High Performance: The cable adapter is for Autel's bypass for the automotive safety gateway module (SGM), which limits aftermarket scanning tools to reading DTC and viewing data only. 4Stable Connection: The cable connector can be easily plugged into the car and connected to the car fault diagnosis scanner, does not affect the original car functions, does not change the original car circuit. 5Dependable Design: Reliable ABS material is not easy to be deformed by long term high frequency use, high strength, stable performance, safe and reliable.
Package List:
1 x Adapter
