Specification:

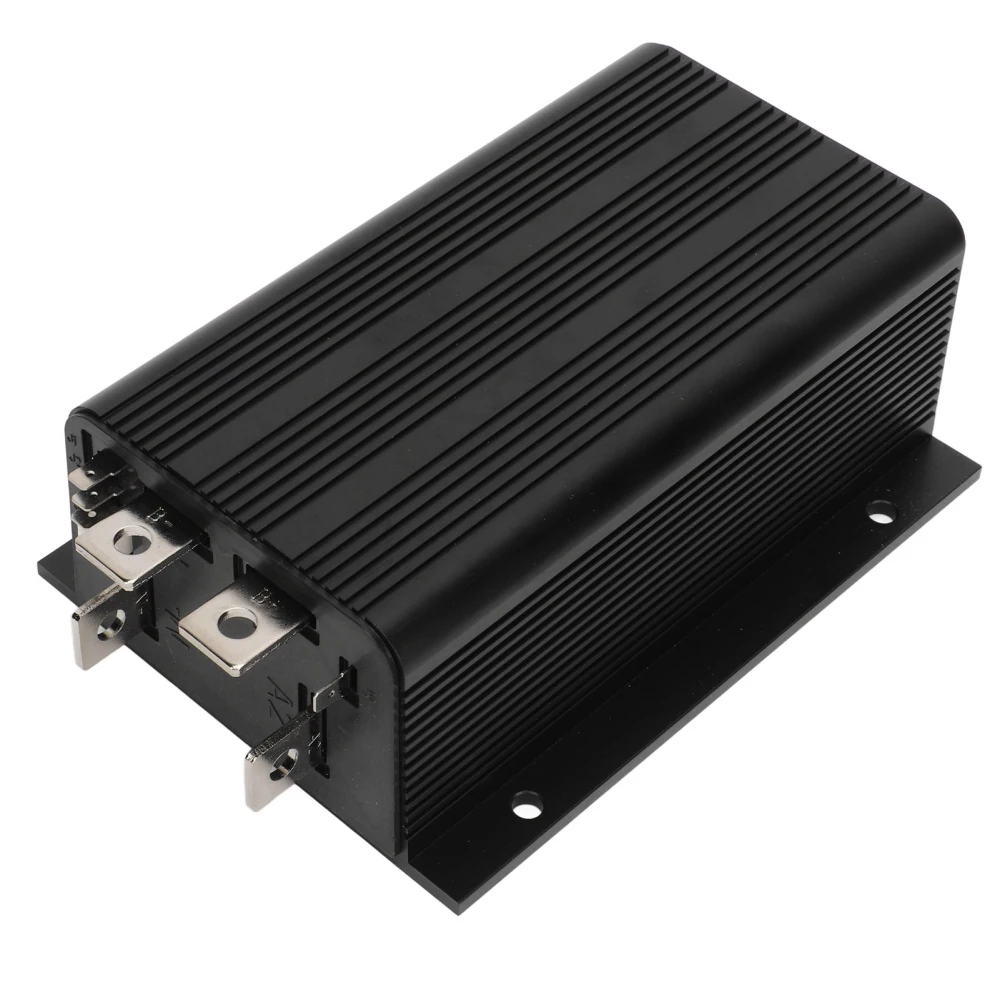

Item Type: Golf Cart DC Motor Controller
Material: Metal
Product Model: 1205M-4601, 17721706
Voltage: 24V
Current: 500A
Battery System Voltage And Throttle Type: 0-5k, 5k-0, or 0-5V (configurable), our default is 0-5k
Features Include:
- Simple installation and wiring using push in connectors for control signals and plated solid copper bus for power connections.
- Compatible with two wire potentiometers or voltage throttles.
- If the key is turned on while the throttle is in use, the high pedal disable feature prevents the controller from operating.
- Insert the brake diode inside the controller.
- The undervoltage cut function protects against low battery voltage, including low voltage caused by external loads.
Ten Throttle Types Are Available:
Type 0: 2 wire Potentiometer, 0-5 k
Type 1: 2 wire Potentiometer, 5k-0
Type 2: Single Ended 0-5V input
Type 3: 2 Wire Potentiometer, 4.6k-0
Type 4: 2 Wire Potentiometer, 5.5k-0
Type 5: 2 Wire Potentiometer, 1k-0
Type 6: ITS Input
Type 7: Single Ended 6.3-10.6 V Inputs
Type 8: Single Ended 6-12 V Input
Type 9: Single Ended 3 wire potentiometer, 0-5k
Application: Replacement for Curtis Golf Cart Forklift Truck
Features:
1Vehicle Fitment: Motor controller is a series excited motor controller, replacement for Curtis Golf Cart Forklift Truck, which is made according to the prototype model. 2Main Function: Controller can control the vehicle's starting, traveling, speed of entering and exiting, and strength of climbing according to the commands of gear, throttle, and brake. 3High Performance: Speed sensor inputs enable excellent closed loop control to regulate vehicle speed. Unique braking parameters allow for simple, intuitive deceleration adjustment. 4Strong Reliability: High frequency switches and ultra low voltage drops enable efficient and quiet operation. If the valve line is open, the throttle fault protection circuit will disable the controller. 5Stable Operation: Thermal protection and compensation circuits provide constant current limitation over the operating range and during under and over temperature curtailment.
Package List:
1 x Controller
