Specification:
Item Type: Programmable Ignition Kit
OE Number: 53660
Material: Metal, ABS
Application: A single ignition coil with an output of over 40,000 volts, an industry standard electronic module kit with programmable curves
Safety Protection:
Intelligent overvoltage overcurrent protection
Adjustable retard timing
Short circuit protection
Programming Features:
8 Point fully definable wide open throttle curve
8 Point fully definable part throttle curve
Rev Limit programmable in 50 rpm steps
Programmable dead cranking revs 0-10
Programmable rear cylinder offset, a total of +/- 10 degrees
Programmable rev limiter
Separately programmable break-in rev limiter
Data Recording:
Total engine hours
Time at wide open throttle
Number of engine starts (two minutes running time counts as one start)
Longest time operating at wide open throttle
Maximum RPM
Seconds near rev limit
Statistical analysis of time at RPM
Fitment:
Fits for Davidson Big Twin Models 1970-1999 (Except for Twin Cam)
Fits for Davidson 1971-2003 (Except for "S" models)
Fits for Evolution Shovelhead style engines
Features:
1OE Number: The referencing OE number of this programmable ignition kit is 53660, which is molded and designed depend on the original data. 2Fitment: The single fire ignition kit is a replacement for Davidson Big Twin Models 19701999, for Davidson 19712003, for Evolution Shovelhead style engines. 3Powerful Ignition Performance: This programmable ignition kit includes a single fire coil that produces over 40,000 volts, ensuring fast rise times and high energy for efficient combustion. 4Safety Ensured: With intelligent overvoltage, overcurrent protection and short circuit protection, this ignition kit safeguards your engine against electrical faults, enhancing safety and reliability. 5Timing Adjustments: The adjustable retard timing allows you to fine tune your ignition timing for optimal performance, enabling customized settings on your engine requirements. 6Comprehensive Programming: Could access to 8 point fully definable wide open and part throttle curves, rev limits, dead cranking revs, rear cylinder offset, and break in rev limiter.
Package List:

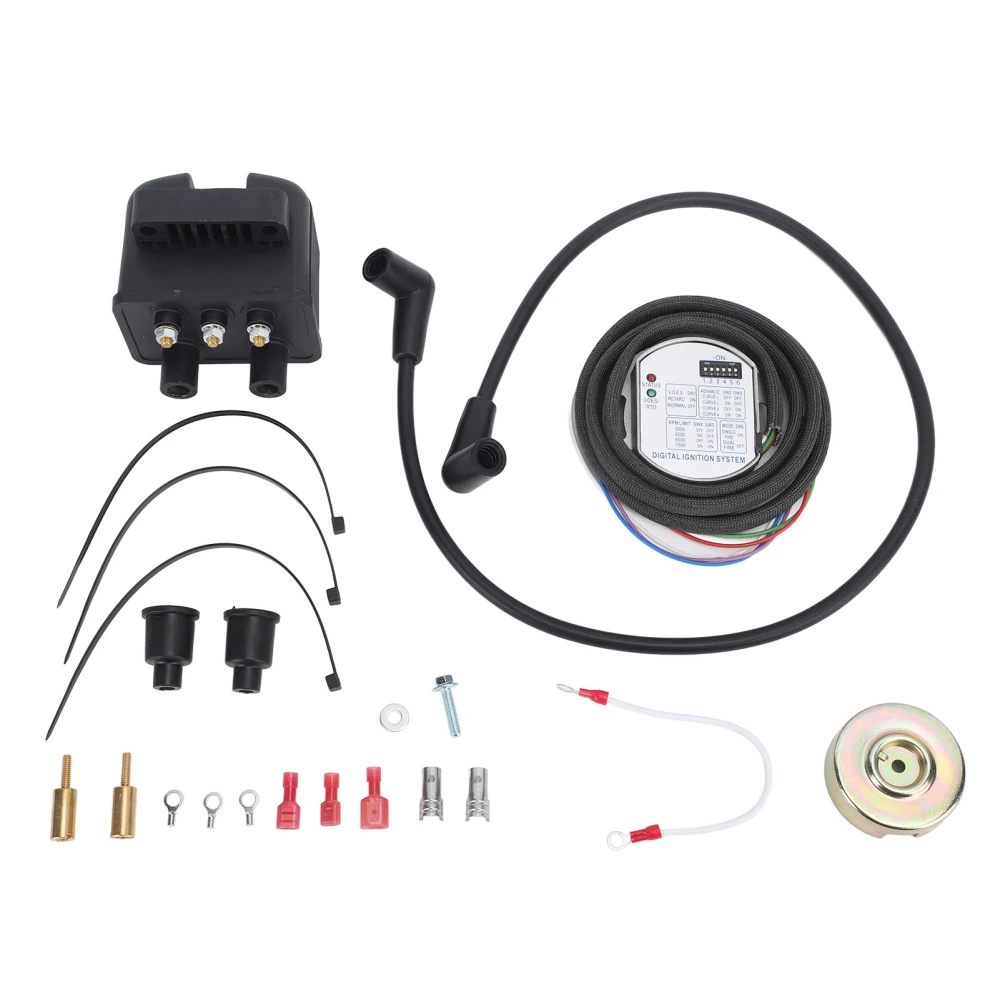

1 x Programmable Ignition Kit (22 Pcs)
