Features:
- It's an advance pressure transducer than traditional mechanical pressure transducer.
- 2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
- Light weight and small size, convenient to install and operate.
- It has complete surge voltage protection function.
- Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
Specifications:
Material: Stainless steel
Voltage: DC 5V
Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)
Thread Type: 1/8" NPT
30 psi
Input: 0-30 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT.
Wiring Connector: Water sealed quick disconnect. Mating connector is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
100 psi
Input: 0-100 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
150 psi
Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8" NPT
Wiring: Red for +5V; Black for ground; Green for signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40~+120
Compensation Temperature: 0~+80
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: (supply power-6.5V/0.02A)
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/; Maximum:0.05%FS/
Temperature Effect on Sensitivity: Typical: 0.02%FS/; Maximum: 0.05%FS/
Shock Resistance: 1000g
Anti-Shock: +/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: 1ms
Insulation Resistance: >100m 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1
200 psi
Input: 0-200 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V
Working Temperature: -40~+125
Accuracy: 1%FS
Thread: 1/8"-27 NPT
Overload Capacity: 2 times of rated pressure
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: (supply power-6.5V/0.02A)
Long-term Stability:0.2%FS/year
Temperature Effect on Zero: Typical: 0.02%FS/; Maximum: 0.05%FS/
Temperature Effect on Sensitivity: Typical: 0.02%FS/; Maximum: 0.05%FS/
Shock Resistance: 100g
Anti-Shock: 0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: 1ms
Insulation Resistance: >100m 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for IN+; Black for GND; Green for OUT.
300 psi
Input: 0-300 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8" NPT
Wiring: Red: +5V; Black: ground; Green: signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40~+120
Compensation Temperature: 0~+80
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance:(supply power-6.5V/0.02A)
Long-term stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical: 0.02%FS/; Maximum: 0.05%FS/
Temperature Effect on Sensitivity: Typical:0.02%FS/; Maximum:0.05%FS/
Shock Resistance: 1000g
Anti-Shock: +/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: 1ms
Insulation Resistance: >100m 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.
500 psi
Input: 0-500 psi (Gauge Pressure)
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V.
Accuracy: +/-1%FS
Thread: 1/8" NPT
Wiring: Red for +5V; Black for ground; Yellow (Green) for signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40~+120
Compensation Temperature: 0~+80
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance:(supply power-6.5V/0.02A)
Long-term stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical: 0.02%FS/; Maximum: 0.05%FS/
Temperature Effect on Sensitivity: Typical: 0.02%FS/; Maximum:0.05%FS/
Shock Resistance: 1000g
Anti-Shock: +/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: 1ms
Insulation Resistance: >100m 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.
Package Includes:

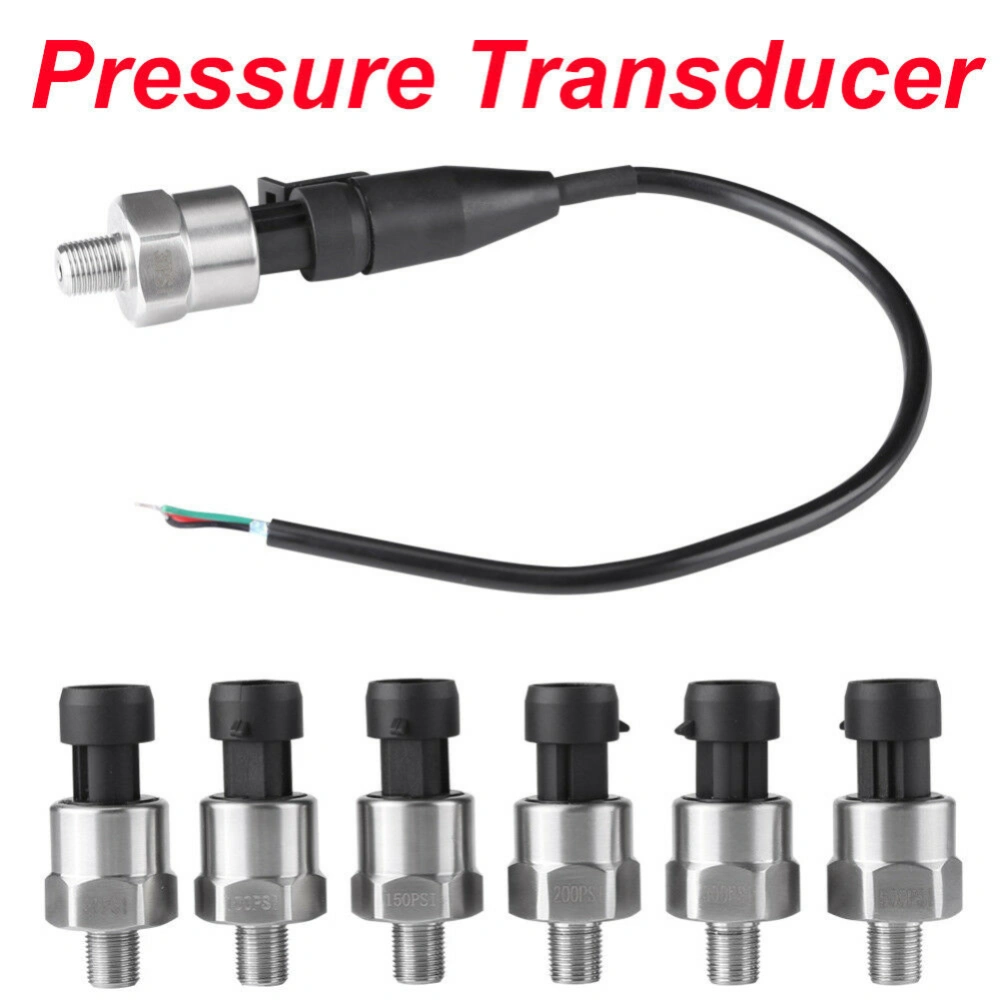

1 x Pressure Transducer (With cable)
