Product information:
Technical data:
Working voltage: 5-12V
Working current: unconnected load-3-12mA; connected load-9-30mA (affected by the output signal).
Shutdown current: <3uA
No-load automatic shutdown delay time: about 3 minutes
Internal battery: 9V stacked battery (6F22 R6P type is recommended, R6P is a common battery with larger current, some high internal resistance batteries are not applicable)
External power supply: 5-12V, reverse connection protection. Power socket (DC3.5MM): negative outside and positive inside. It can be powered directly by a computer or a power adapter with a USB socket.
Signal output interface:
Standard DB15, VGA socket (D-sub 15-pin Shrink Connector)
Output signal level:
R-G-B: 0.7V (5%), 75 load impedance
VSYNC, HSYNC: 3V(p-p), TTL load
Model: VGA signal generator projector
Frequency: 60 (MHz)
Level: 5-12 (V)
Size information:
Dimensions: 905226(mm)(LWH)(mm)

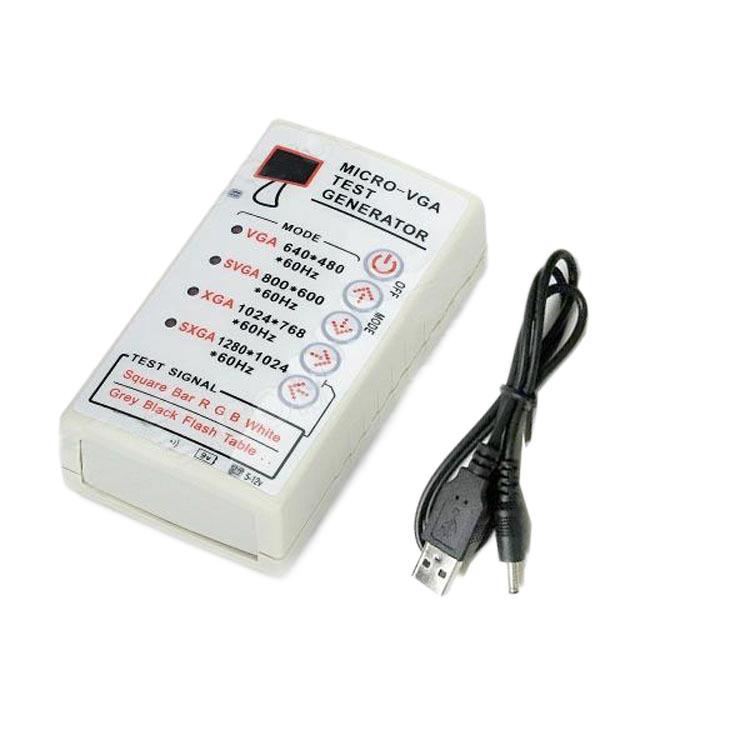

Packing list :
Signal generator*1A USB to DC3.5 power cord.

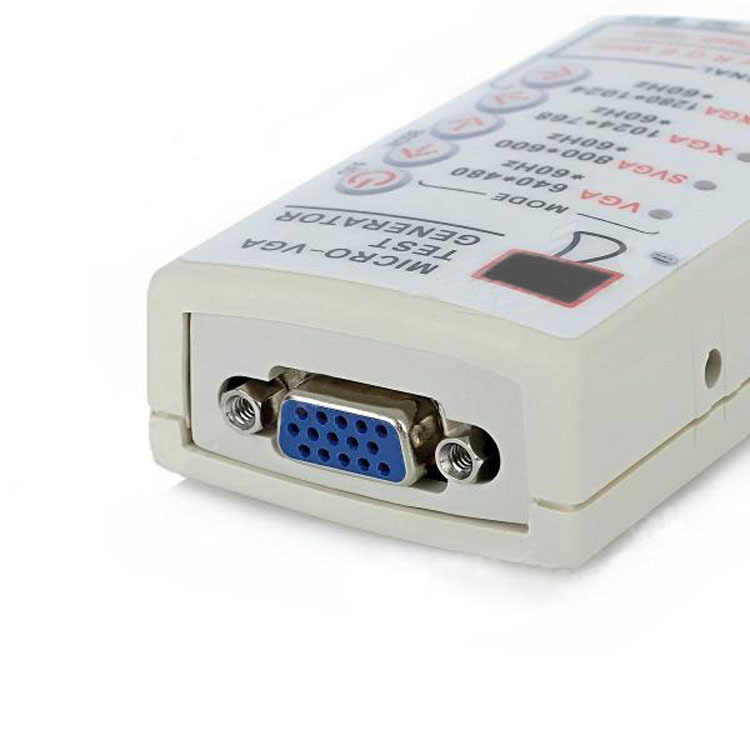

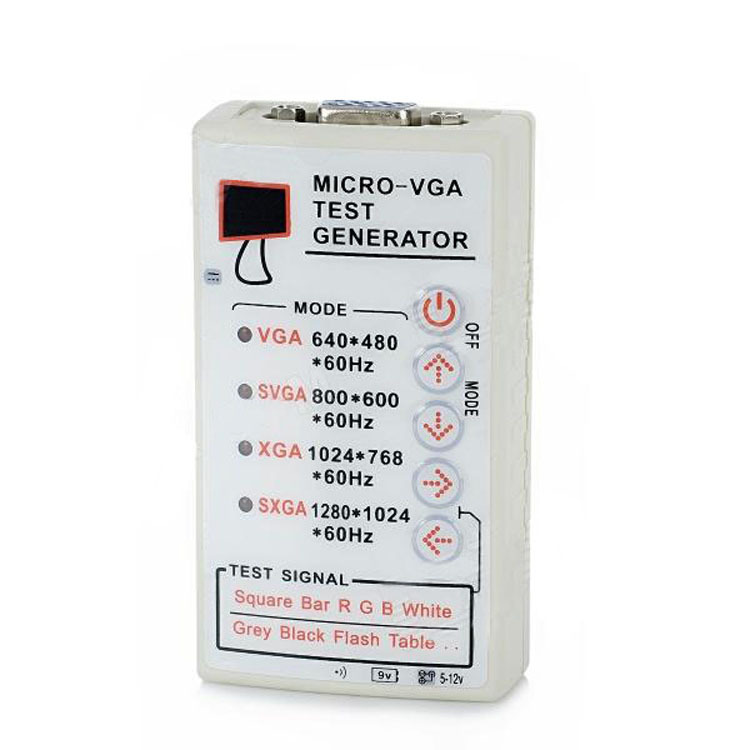

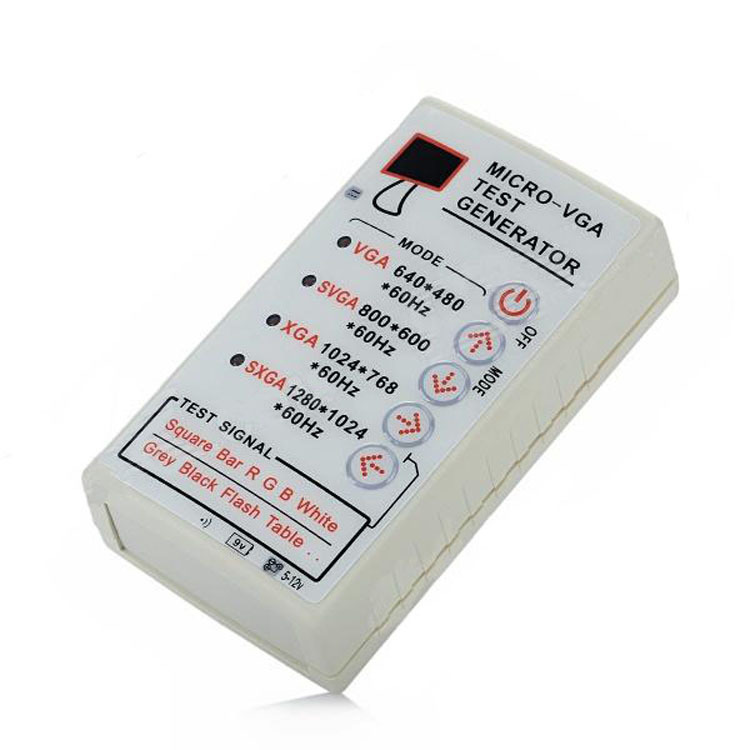

Product picture:
