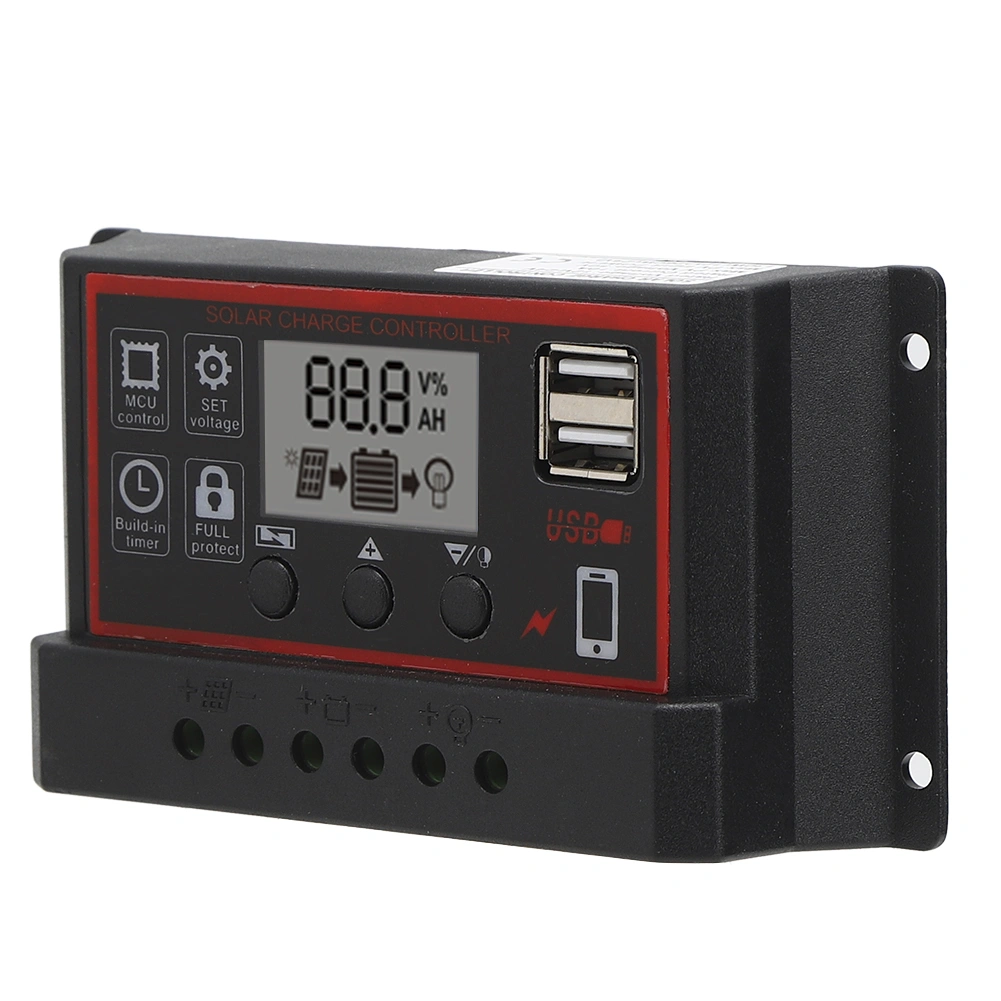

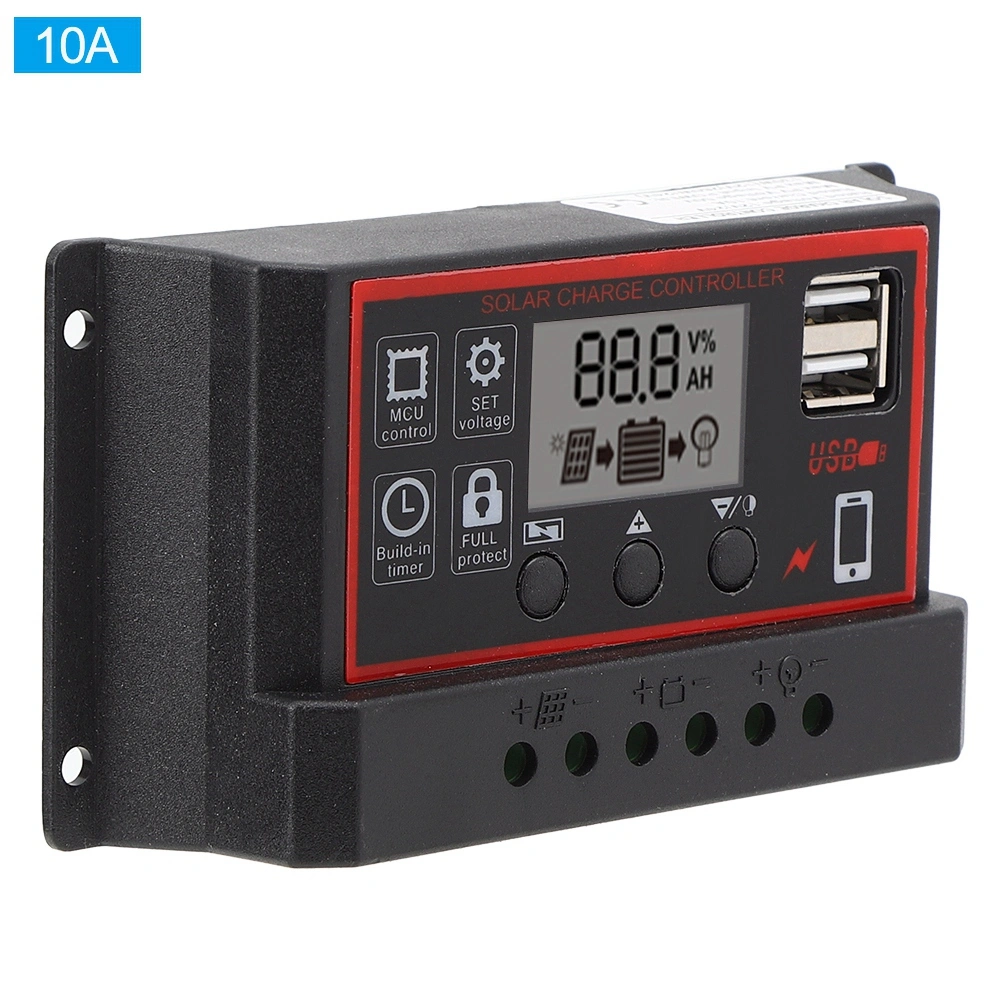

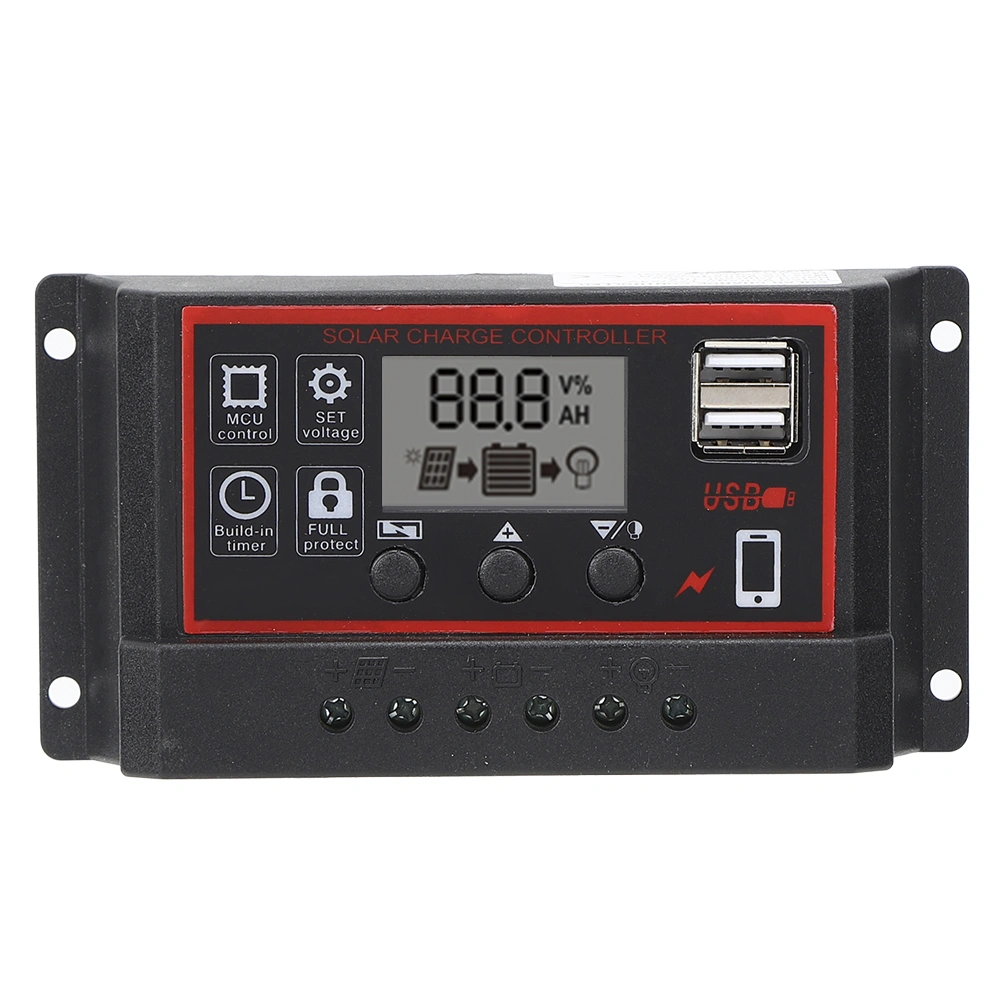

LCD Solar Charge Controller 5V /2.5A Dual USB PWM Cell Panel Regulator Automatic Identification 12V 24V10A

$0.99

LCD Solar Charge Controller 5V /2.5A Dual USB PWM Cell Panel Regulator Automatic Identification 12V 24V10ALCD Solar Charge Controller 5V /2.5A Dual USB PWM Cell Panel Regulator Automatic Identification 12V 24V10ALCD Solar Charge Controller 5V /2.5A Dual USB PWM Cell Panel Regulator Automatic Identification 12V 24V10A

Specification: Condition: 100% Brand New Item Type: Solar Charge Controller Material: ABS Color: As the Picture Shown System Voltage: 12V/ 24V (Automatic Identification) Maximum Photovoltaic Voltage: 23V at 12V Battery; 46V at 24V Battery Increase Charging Voltage: B01 Sealed Type: 14.4V, B02 Colloid Type: 14.2V, B03 Open Type: 14.6V. Floating Charge Voltage: 13.7V (Default Value, Adjustable Range: 12.7-15V) Discharge Cut-off Voltage: 10.7V (Default Value, Adjustable Range: 9-11.3V). Discharge Recovery Voltage: 12.6V (Default Value, Adjustable Range: 11.5-13V). Charge Recovery Voltage: 13V Light Control Threshold: 8V Photovoltaic Panel (There is a delay when the light is switched on) Light Control off Threshold: Photovoltaic Panel 8V (There is a delay when the light is switched off) Standby Current: <10mA USB Output: 5V /2.5A Maxmium Working Temperature: -35-60 Optional Rated Current: 10A, 20A, 30A,40A, 50A, 60A Size: Approx. 133 x 70mm/5.2 x 2.8in Features: 1Using industrialgrade main control chip, good performance and durability. 2Largescreen LCD display, adjustable charge and discharge parameters, with poweroff memory function. 3Complete 3stage charging management to better meet your needs. 4Builtin overcurrent, short circuit, open circuit, reverse connection protection, all are selfrecovery type, do not damage the controller. 5Dual USB output, maximum current up to 2.5A, dual MOS antibackflow circuit, ultralow heat generation. Package List: 1 x Solar Charge Controller 1 x Instruction
