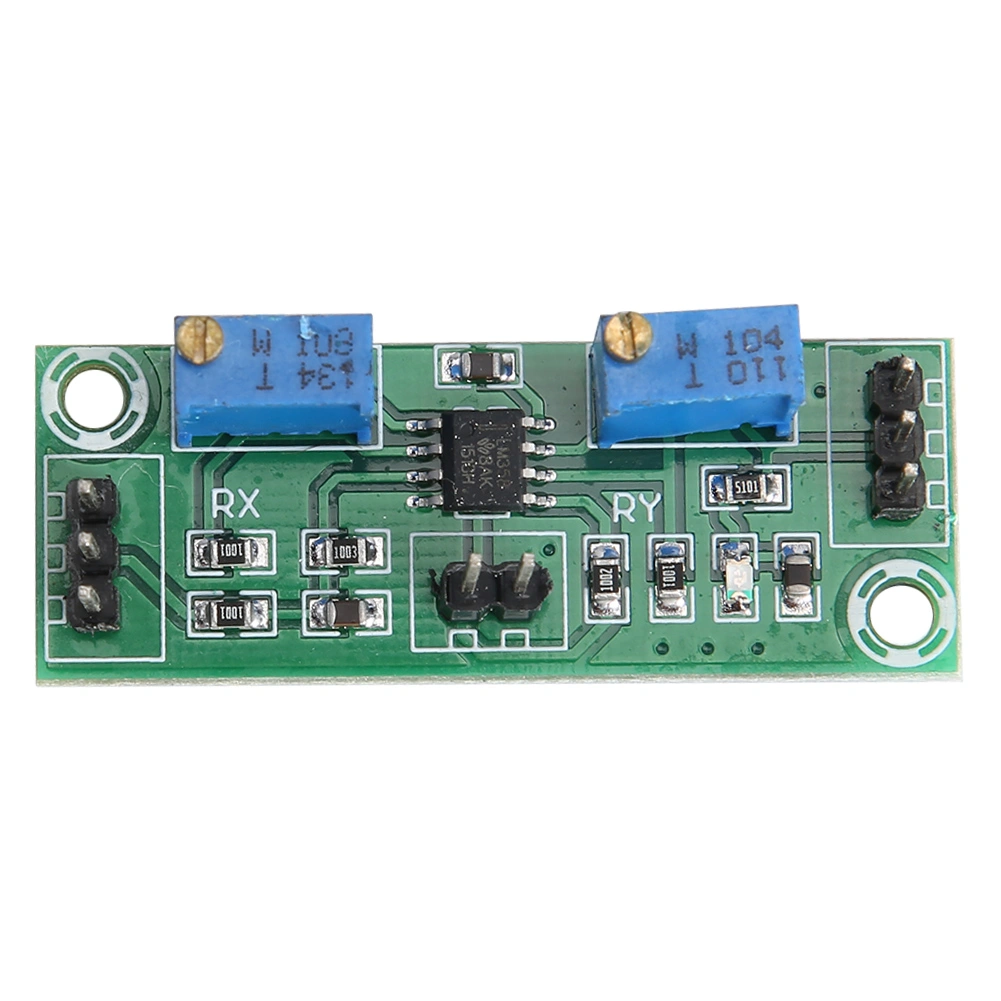

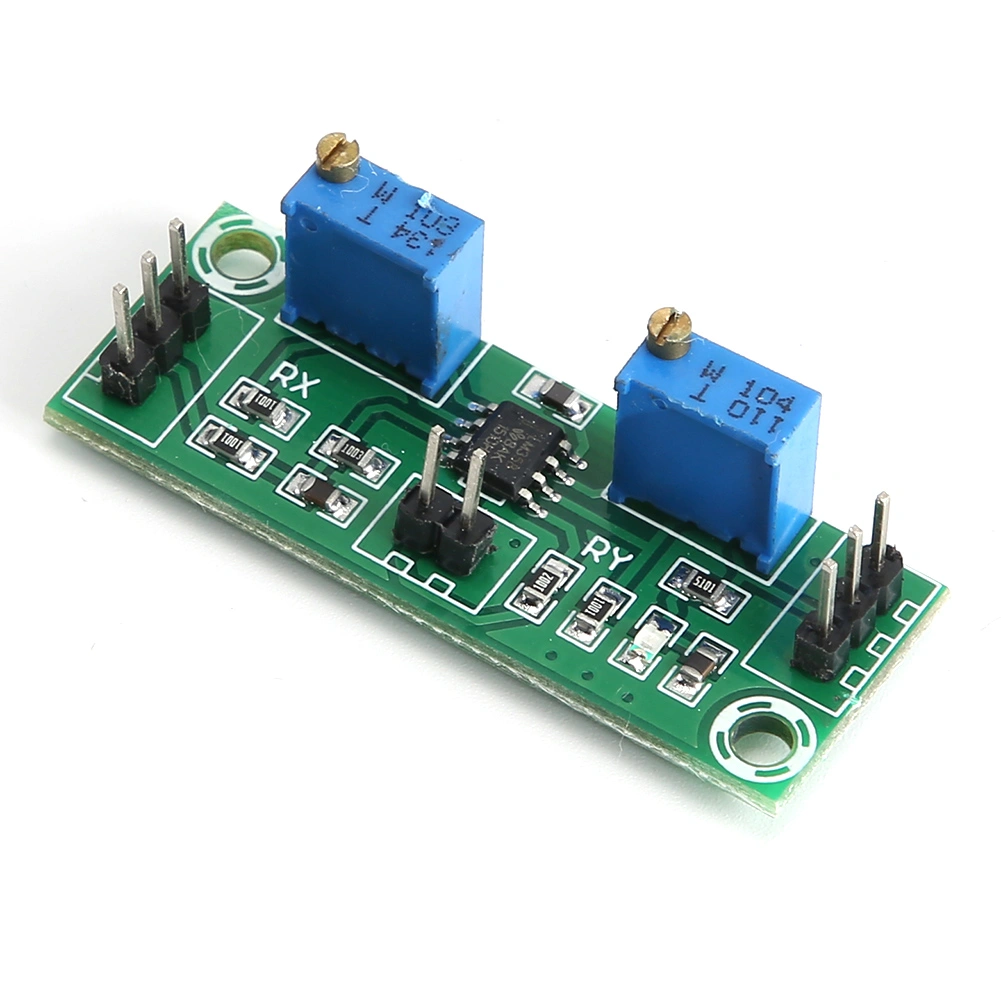

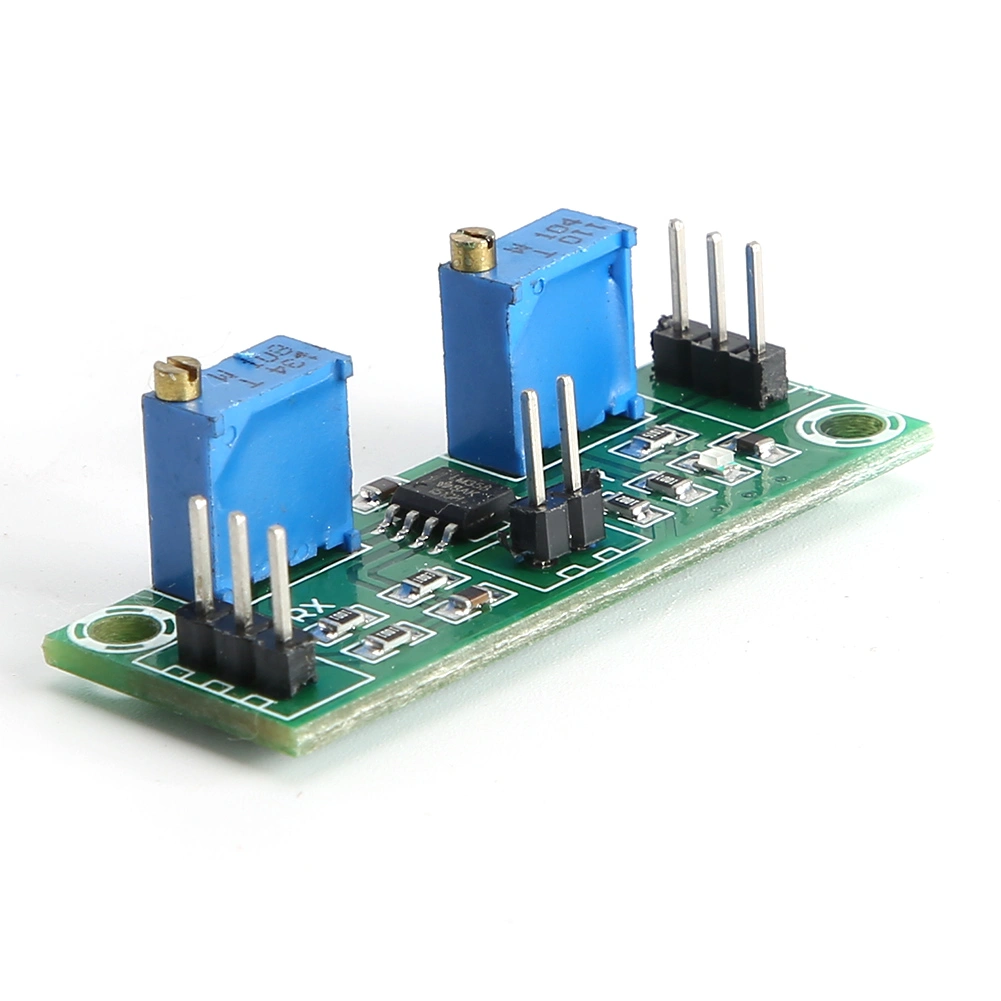

2Pcs LM358 3.5-24V Weak Signal and Voltage Amplifier 15-20MA Power Signal Collector for DC Pulse

$0.99

Specification: Item Type: Voltage amplifier Supply Voltage: 3.5-24V DC power supply Current Output: Maximum 15-20MA (non-linear) Voltage Output: Output = input voltage signal x magnification Magnification: Total multiple = First multiple multiple x second multiple Board Size: Length: Approx. 45.3mm / 1.8in, Width: Approx. 16.2mm / 0.6 in Features: 1It can amplify signals that are millivolts or even weaker, and the two potentiometers on the board rotate in counterclockwise to increase the multiple. 2LM358 is the core two-stage operational amplifier, which can amplify DC weak signals, such as DC voltage signals and DC pulse signals. 3There are two potentiometers for single-stage magnification adjustment of the first and second stages, respectively. 4But the total magnification is the product of the multiple of these two, so the magnification will be adjusted to a large extent. 5If the first level is adjusted to 20 times magnification, then if the second level is adjusted to 100 times, and the total magnification is 2000 times. Package List: 2 x Voltage Amplifier Module
