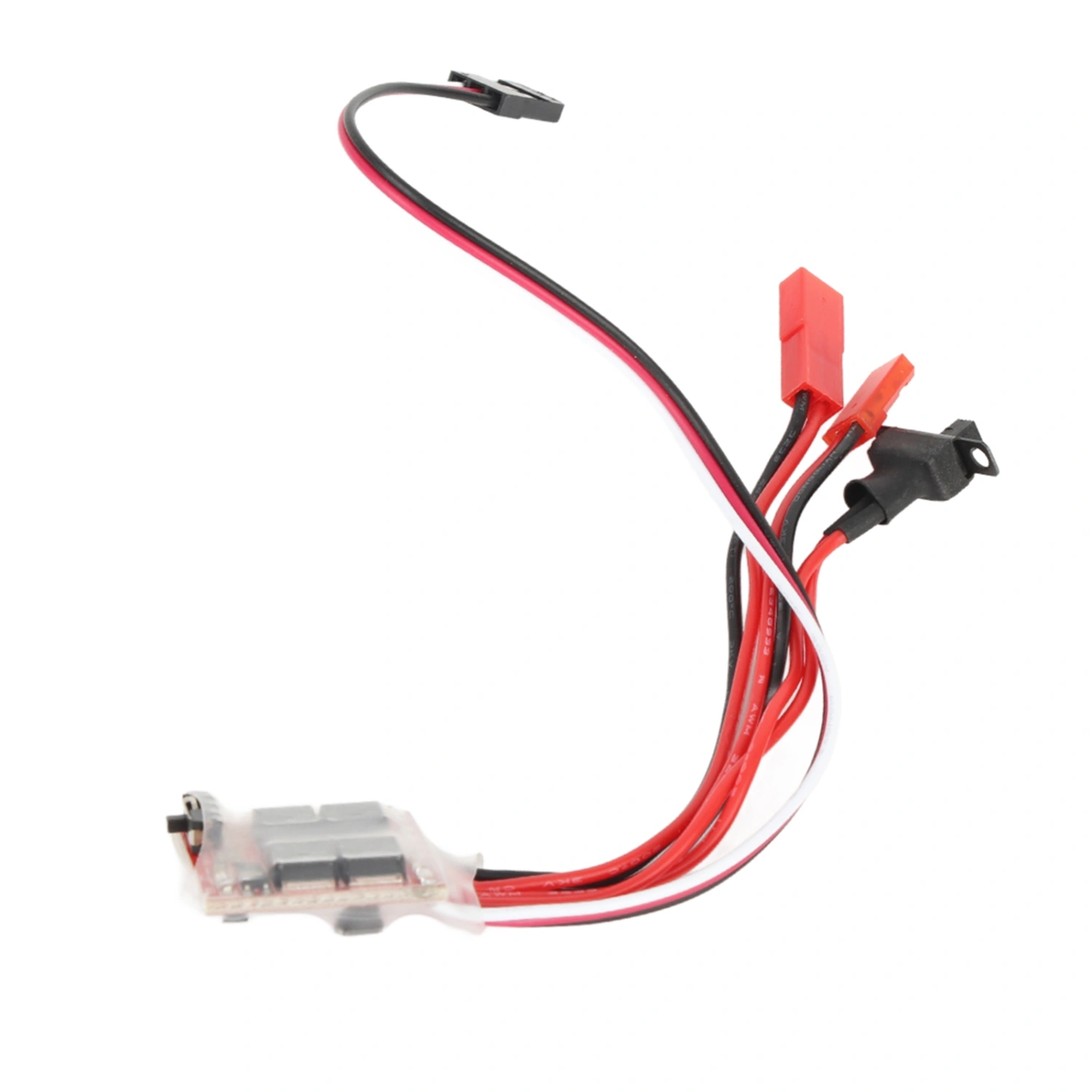

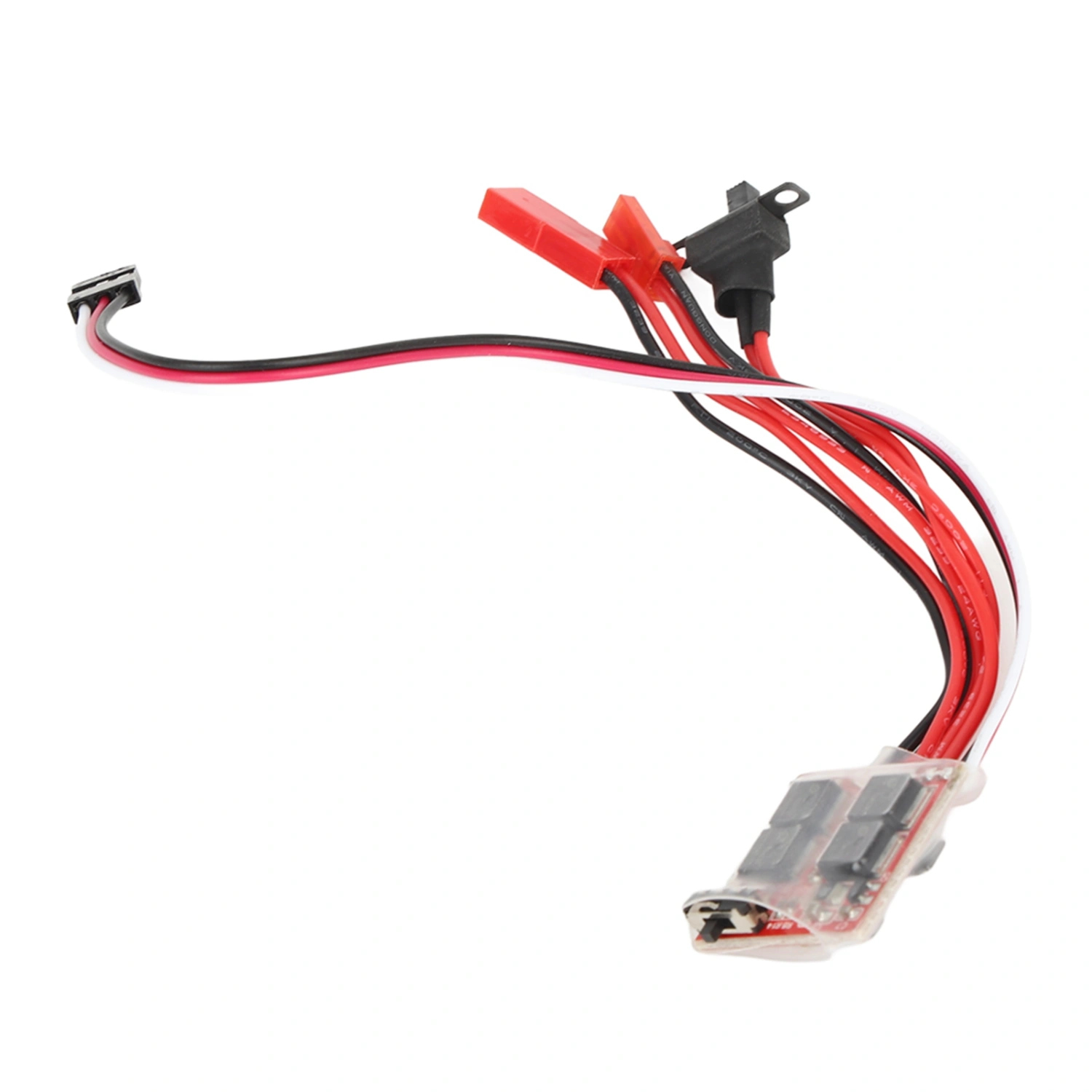

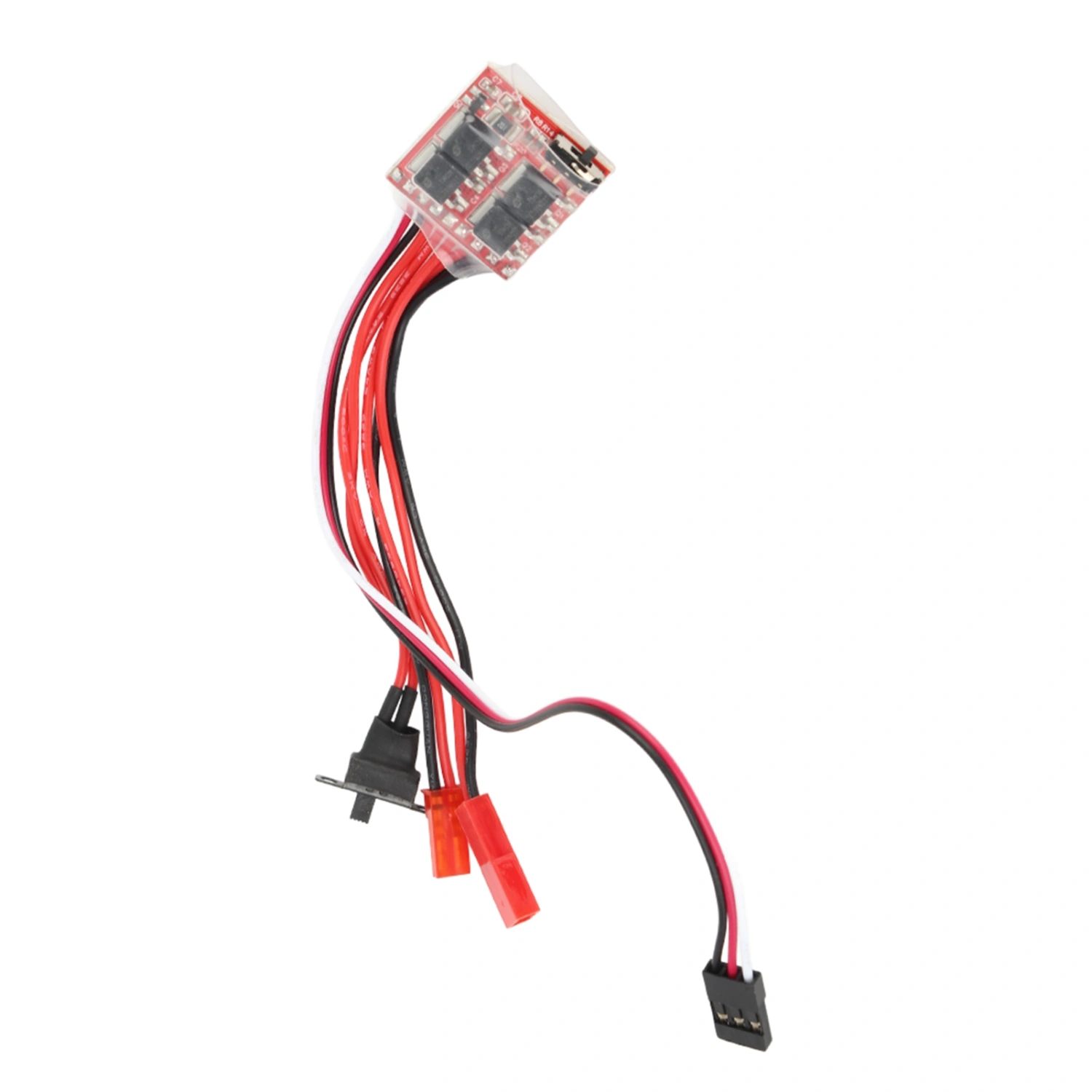

30A Independent Brushed ESC Electric Speed Control Motor Governor with Switch RC Car Accessories Parts

$0.99

30A Independent Brushed ESC Electric Speed Control Motor Governor with Switch RC Car Accessories Parts30A Independent Brushed ESC Electric Speed Control Motor Governor with Switch RC Car Accessories Parts30A Independent Brushed ESC Electric Speed Control Motor Governor with Switch RC Car Accessories Parts

Specification: Item Type: RC accessory Material: Synthetic material Color: Black + red Function: Front, reverse, brake Size: Approx. 25x23x5mm/1x0.9x0.2in Packing Size: Approx. 9.5x8x1cm/3.7x3.1x0.4in Package Weight: Approx. 13g Current: Front 30A, instant peak 40A, turn 20A, brake 40A UBEC Output: Voltage 5.7V, current 1A (receiver power, servo power) Supported Voltage: 4~8V Tip: The for JST header has a switch by default. Connection: Battery (cathodic or anodic) Motor (no cathodic or anodic) Black red and white line, receiver CH2 (outside is usually black, sticker is white) Settings: The ESC is in the middle of the range and the new controls usually require adjustment of the throttle. CES is not lit, it is the median, and the throttle adjustment is controlled by TH TRIM. Features: 1Adopting high specification craft, carefully welding, precise hole position. 2High quality metal casting, easy to install, sturdy and durable, reliable to use. 3Small size and light weight, easy to carry, bringing great using experience. 4Built to strict quality control standards, design improved for more durability. 5Long service life, not easy to damage, you can use for a long time. Package List: 1 x 30A Brushed ESC
