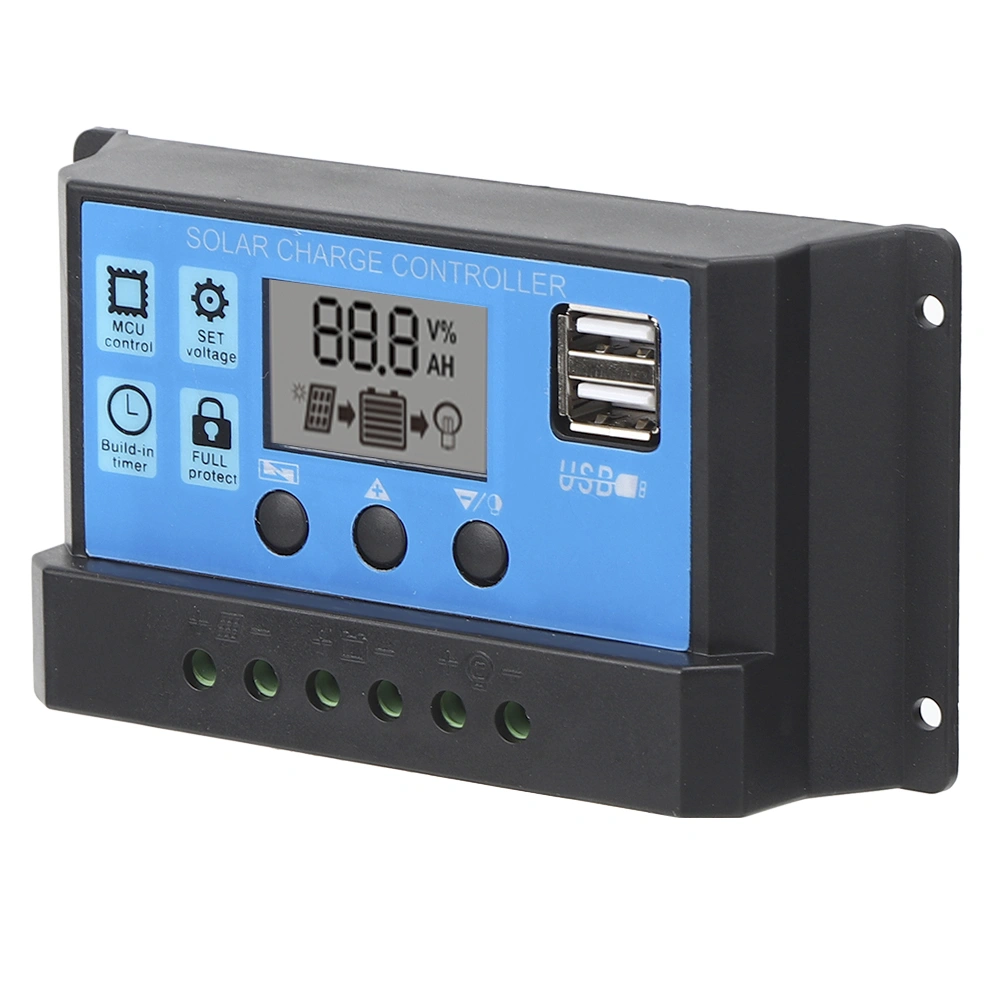

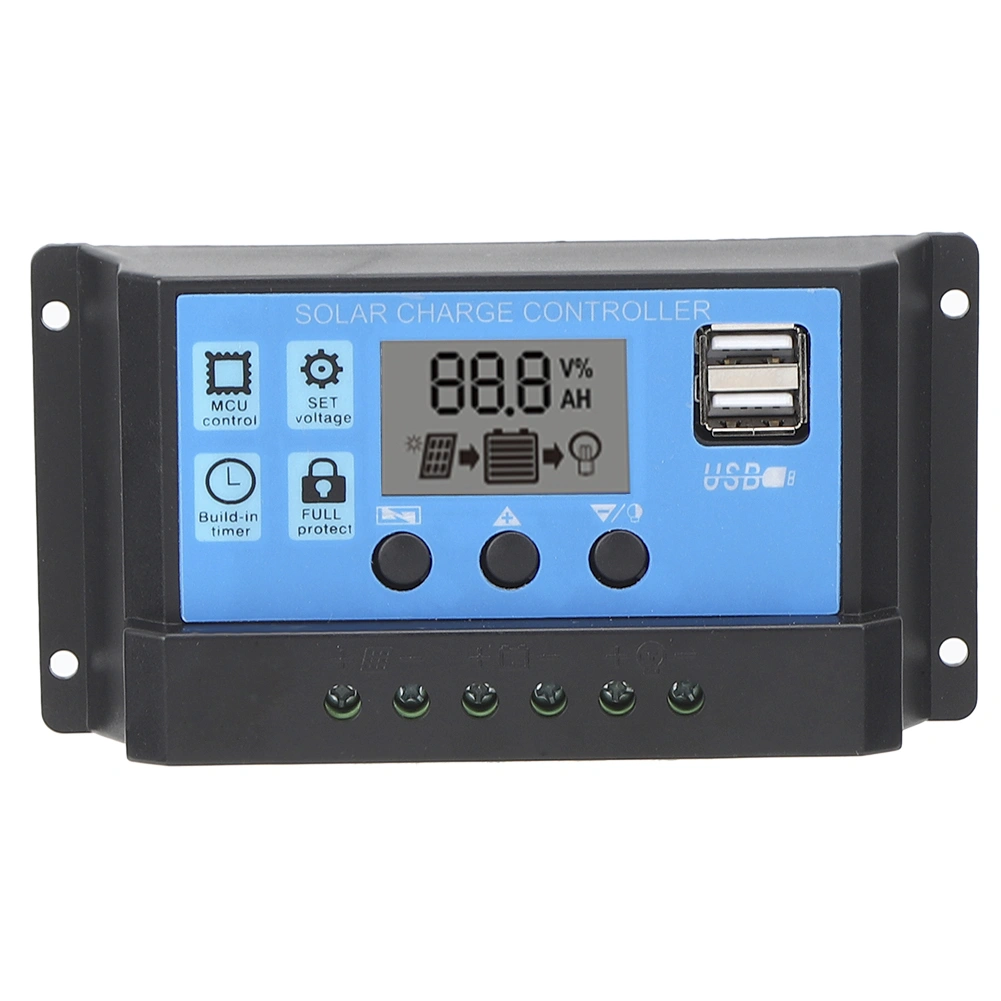

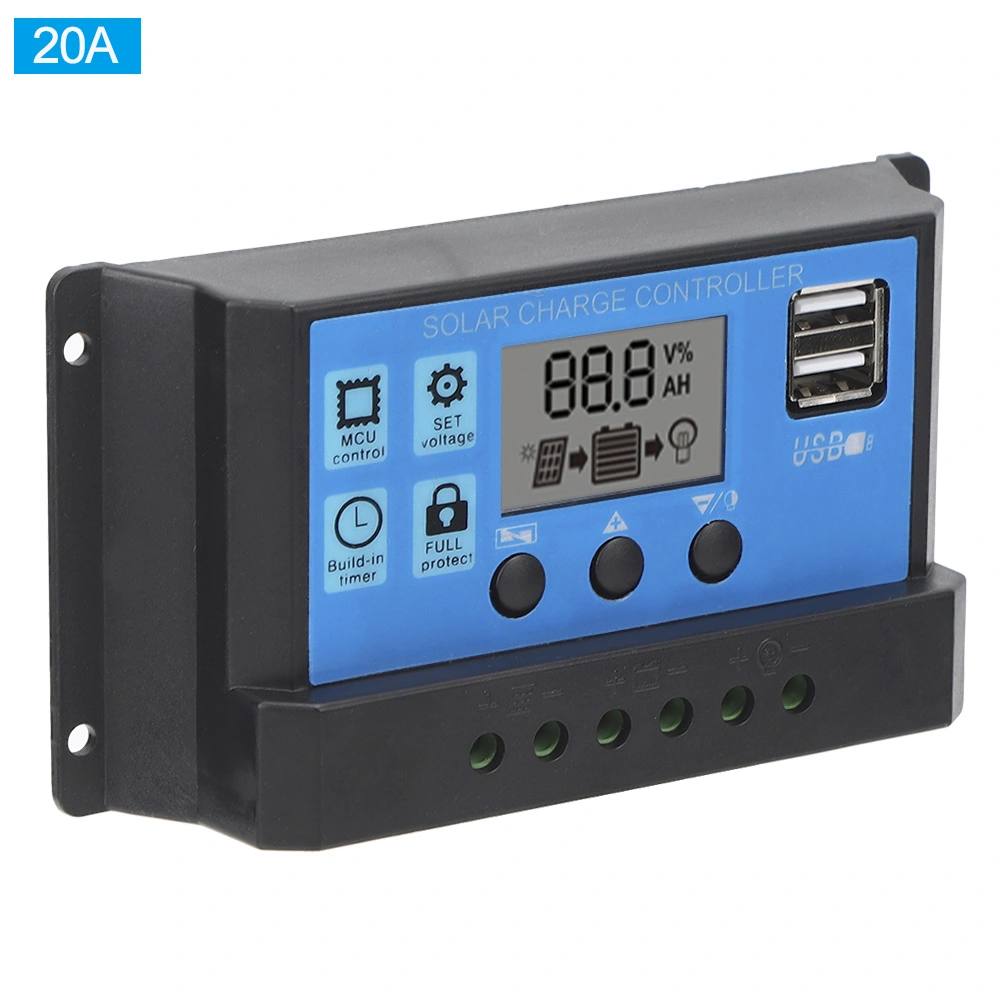

Solar Charge Controller LCD Dual USB PWM Cell Panel Regulator with Load Automatic Identification 12V 24V20A

$0.99

Solar Charge Controller LCD Dual USB PWM Cell Panel Regulator with Load Automatic Identification 12V 24V20ASolar Charge Controller LCD Dual USB PWM Cell Panel Regulator with Load Automatic Identification 12V 24V20ASolar Charge Controller LCD Dual USB PWM Cell Panel Regulator with Load Automatic Identification 12V 24V20A

Specification: Condition: 100% Brand New Item Type: Solar Charge Controller Material: ABS Color: As the Picture Shown System Voltage: 12V/ 24V (Automatic Identification) Maximum Photovoltaic Voltage: 12V System <25V/24V System <50V Increase Charging Voltage: B01 Sealed Type: 14.4V, B02 Colloid Type: 14.2V, B03 Open Type: 14.6V. Floating Charge Voltage: 13.7V (Default Value, Adjustable Range: 12.7-15V) Discharge Cut-off Voltage: 10.7V (Default Value, Adjustable Range: 9-11.3V). Discharge Recovery Voltage: 12.6V (Default Value, Adjustable Range: 11.5-13V). Standby Current: <10mA USB Output: 5V /2A Maximum Working Temperature: -35-60 Optional Rated Current: 10A, 20A, 30A,40A, 50A, 60A Size: Approx. 133 x 70mm/5.2 x 2.8in Features: 1Using industrialgrade main control chip, good performance and durability. 2Largescreen LCD display, adjustable charge and discharge parameters, with poweroff memory function. 3Complete 3stage charging management to better meet your needs. 4Builtin overcurrent, short circuit, open circuit, reverse connection protection, all are selfrecovery type, do not damage the controller. 5Dual USB output, maximum current up to 2A, dual MOS antibackflow circuit, ultralow heat generation. Package List: 1 x Solar Charge Controller 1 x Instruction
