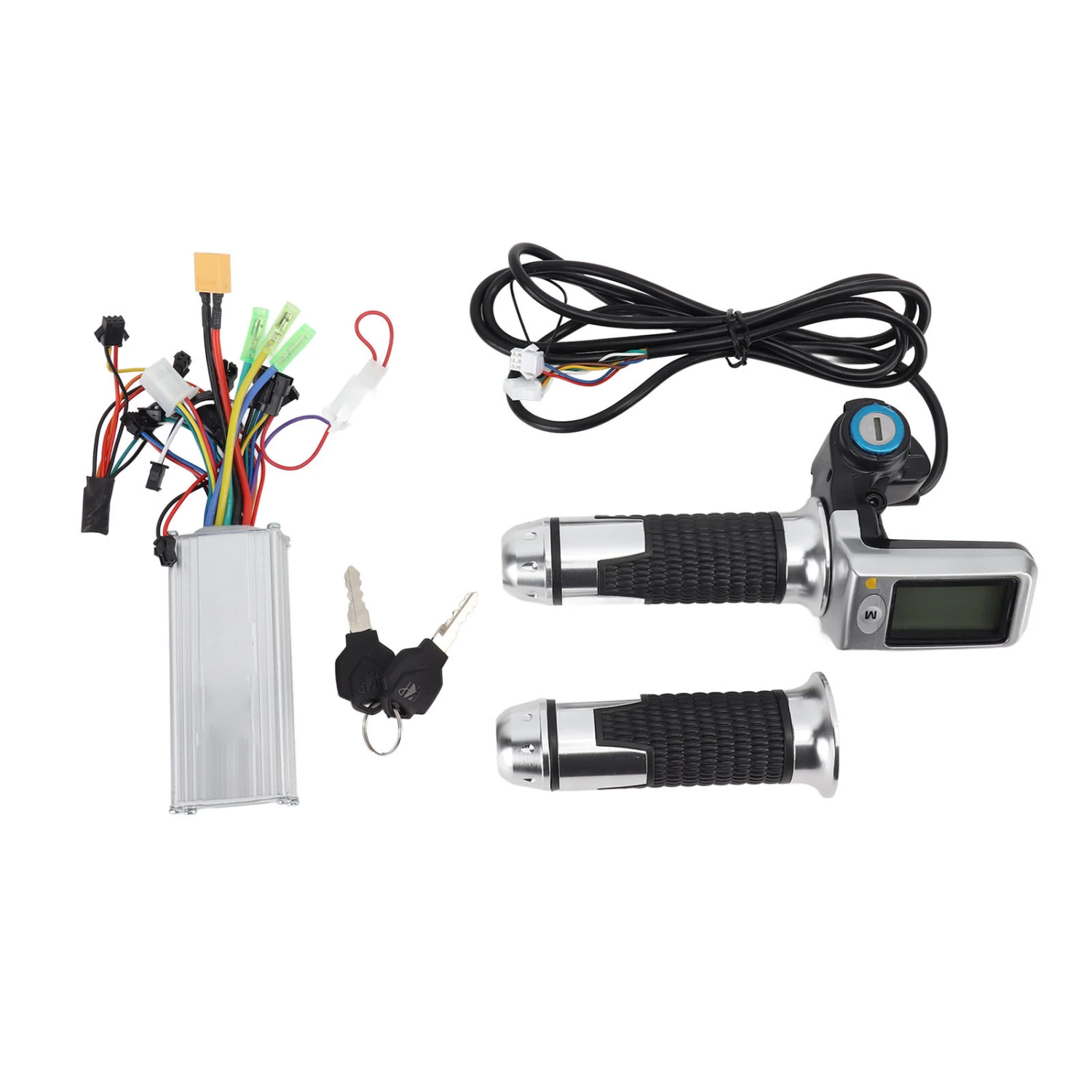

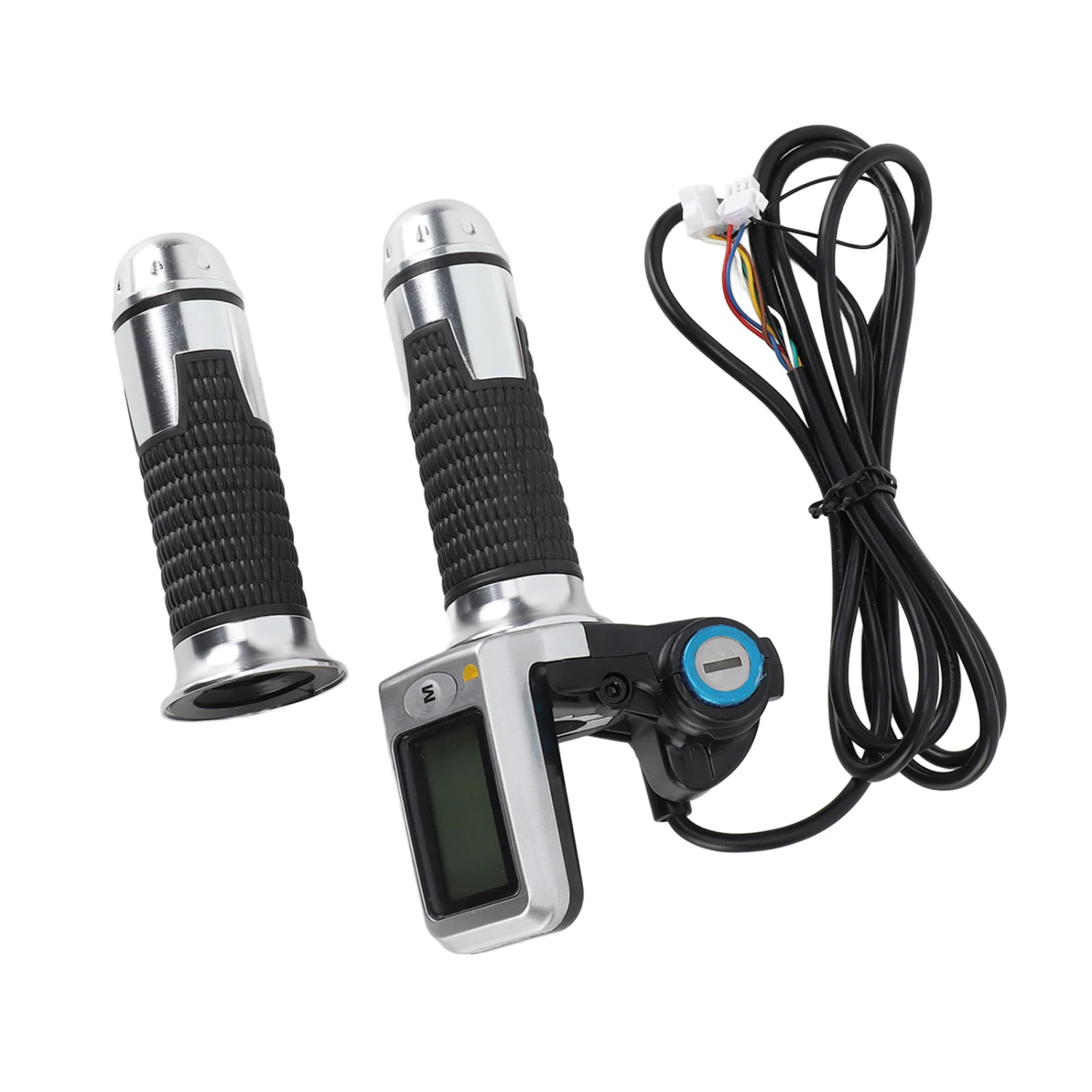

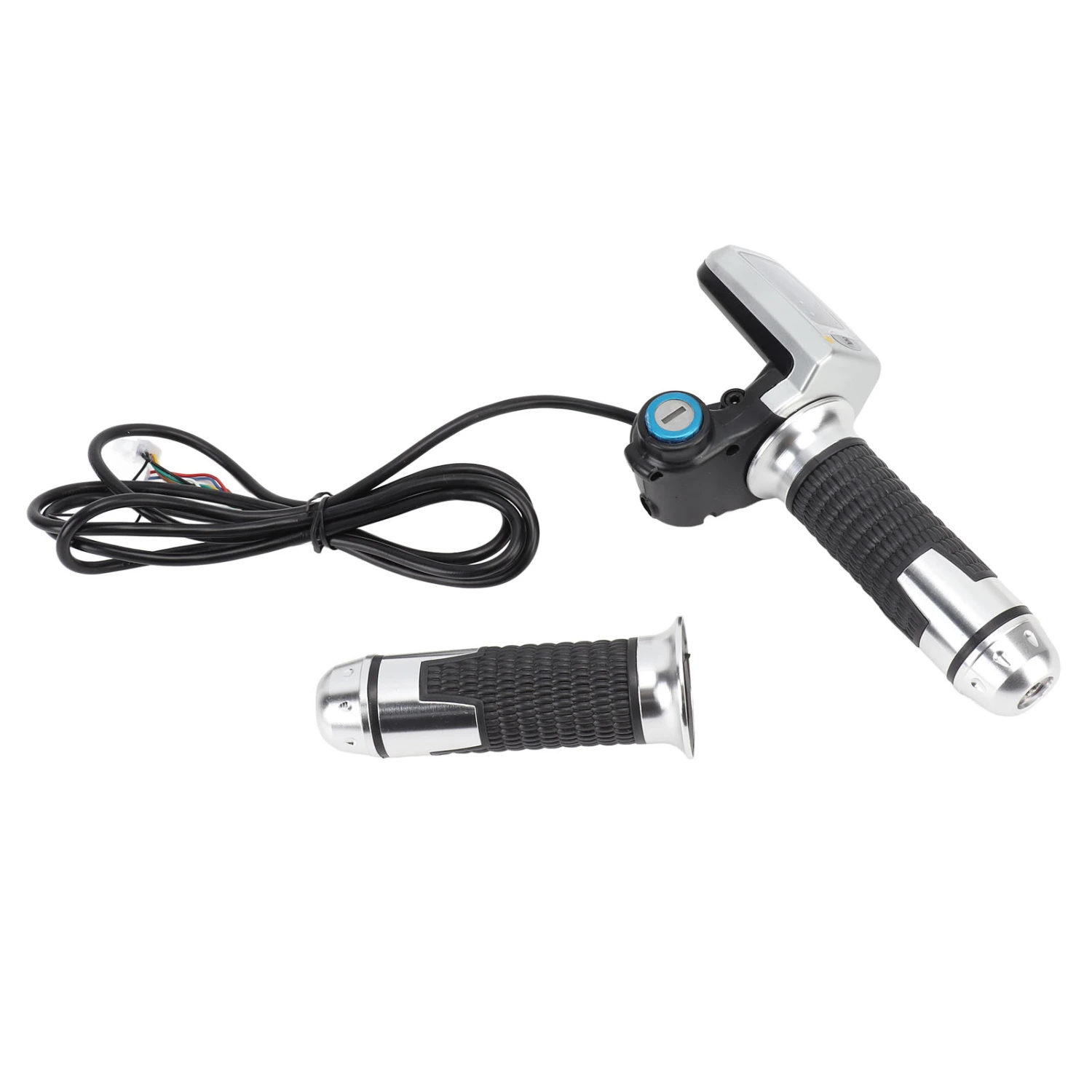

36V 48V 500W Motor Brushless Controller and 802 Twist Throttle with LCD Display Electric Bike Conversion Kit

$35.55

36V 48V 500W Motor Brushless Controller and 802 Twist Throttle with LCD Display Electric Bike Conversion Kit36V 48V 500W Motor Brushless Controller and 802 Twist Throttle with LCD Display Electric Bike Conversion Kit36V 48V 500W Motor Brushless Controller and 802 Twist Throttle with LCD Display Electric Bike Conversion Kit

Specification: Item Type: Motor Brushless Controller and LCD Display Material: ABS, Aluminium Alloy Weight: Approx. 696g/ 24.6oz Voltage: 36V, 48V Power: 500W Current Limit: 28A Low Voltage: 30V 42V Features: 1LCD Display Contents Include: Single and cumulative mileage, real time speed, battery power, gear indication, fault code interface, etc. 2Controller Wiring Harness Functions Include: Positive and negative power supply, motor threephase line, headlight interface, taillight, brake light interface, brake lamp headlight signal, battery power output, intelligent identification line, low brake power off, PAS1:1 power, speed control throttle turn, total switch (electronic control lock), LCD display interface, motor Hall interface. 3Excellent Performance: This controller is made of superior metal with a notched design, durable, has superior heat dissipation function, which can protect the internal circuit so as to avoid thermal overload. 4Main Applications: Suitable for 36V, 48V, 500W motor, can be used for the modification and replacement of damaged parts of electric power bike, electric bike, electric scooter, etc. 5Easy to Install: The LCD Display is suitable for 22.5mm handlebars. Detailed operating instructions are attached below. Package List: 1 x LCD Display 1 x Handlebar Grip 1 x Motor Brushless Controller 1 x Specification 2 x Keys
