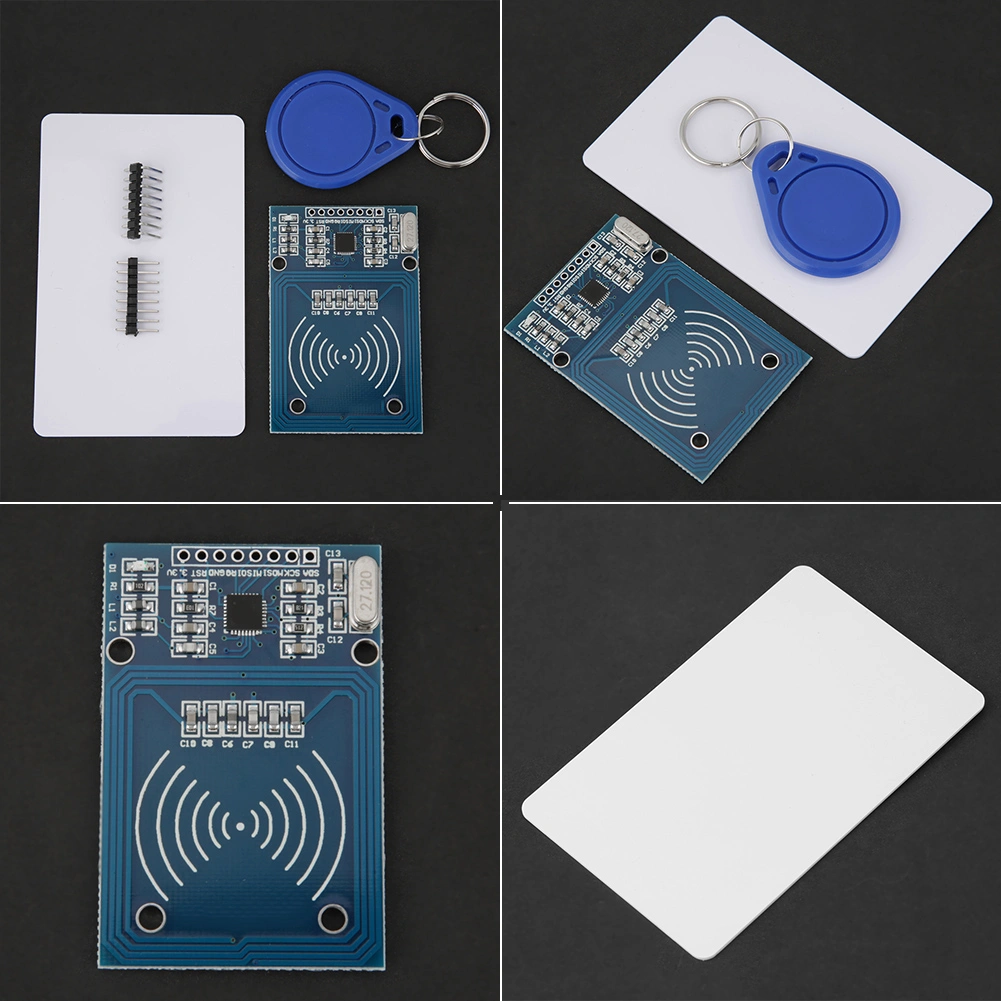

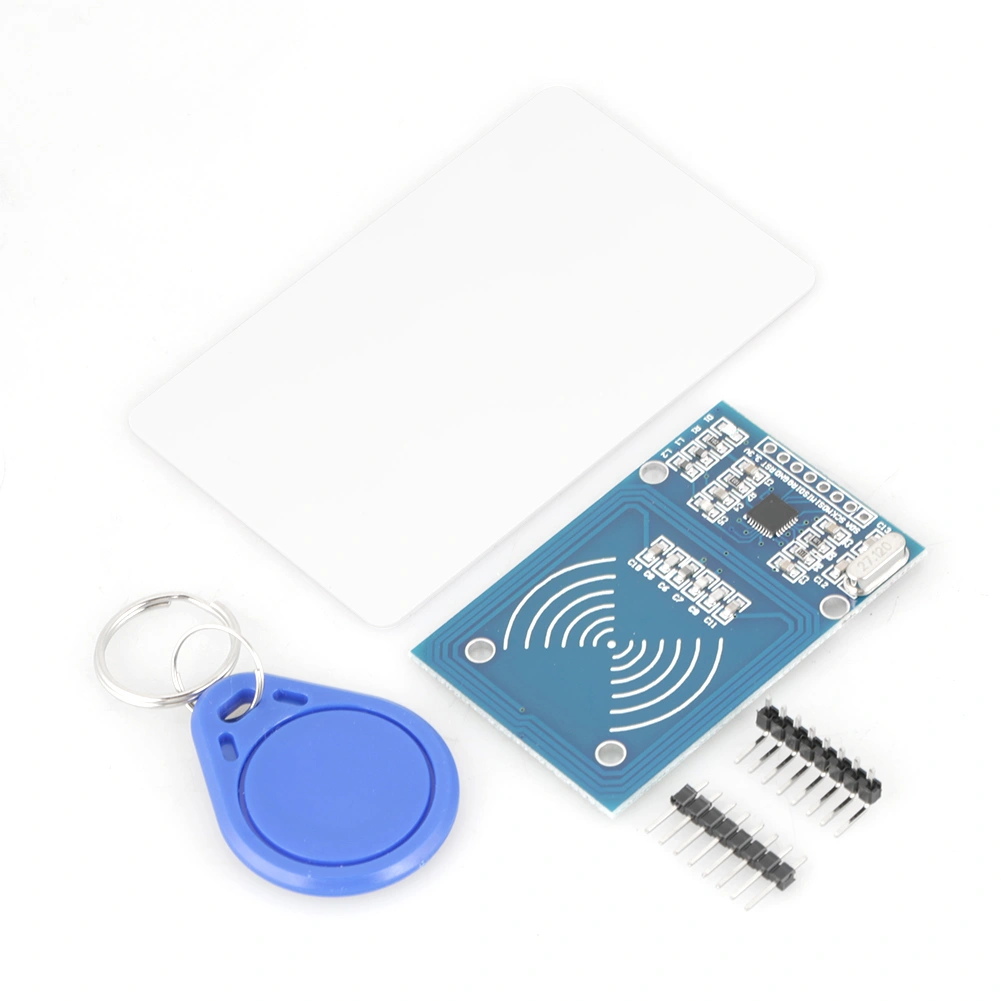

5 Pcs /set RFID IC Card Sensor Module and S50 Blank Card and Key Ring

$40.54

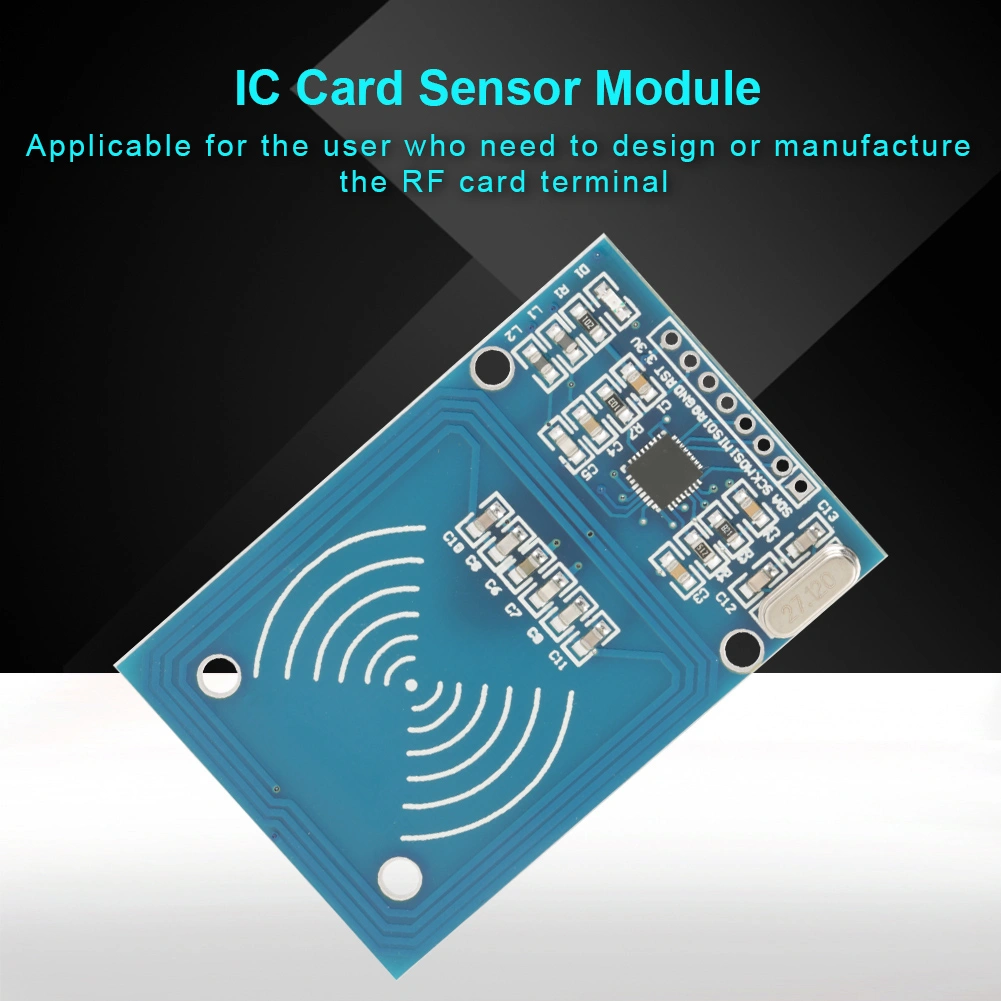

Specification: Features: This product is a highly integrated reading and writing card chip applied in 13.56MHz non-contact communication. Easy to use, low cost, and applicable to equipment development and card reader development etc. Applicable for the user who need to design or manufacture the RF card terminal. The module can be directly loaded into the various reader molds. The module use a voltage of 3.3V, it can connected communication with user's any CPU main board through several lines of Serial Peripheral Interface, it can ensure stable and reliable work, and reader distance. Specifications: Operating current :13-26mA/DC 3.3V Idle current :10-13mA/DC 3.3V Sleep current: <80uA Peak current: <30mA Operating Frequency: 13.56MHz Supported card types: for S50, for S70, for for Ultralight, for Pro, for Desfire Data transfer rate: maximum 10Mbit/s Environmental Operating temperature: -20-80 degrees Celsius Environmental Storage Temperature: -40-85 degrees Celsius Relative humidity: relative humidity 5% -95% Size: 40 x 60mm / 1.57 x 2.36in Weight: 21g Package Included: 1 x RFID Module 1 x Standard S50 Blank Card 1 x S50 Special-shaped Card 1 X Straight row pin 1 X Curved row pin Features: 1This product is a highly integrated reading and writing card chip applied in 13.56MHz noncontact communication 2Easy to use, low cost, and applicable to equipment development and card reader development etc 3Applicable for the user who need to design or manufacture the RF card terminal 4The module can be directly loaded into the various reader molds 5The module use a voltage of 3.3V, it can connected communication with user's any CPU main board through several lines of Serial Peripheral Interface, it can ensure stable and reliable work, and reader distance Package List:
