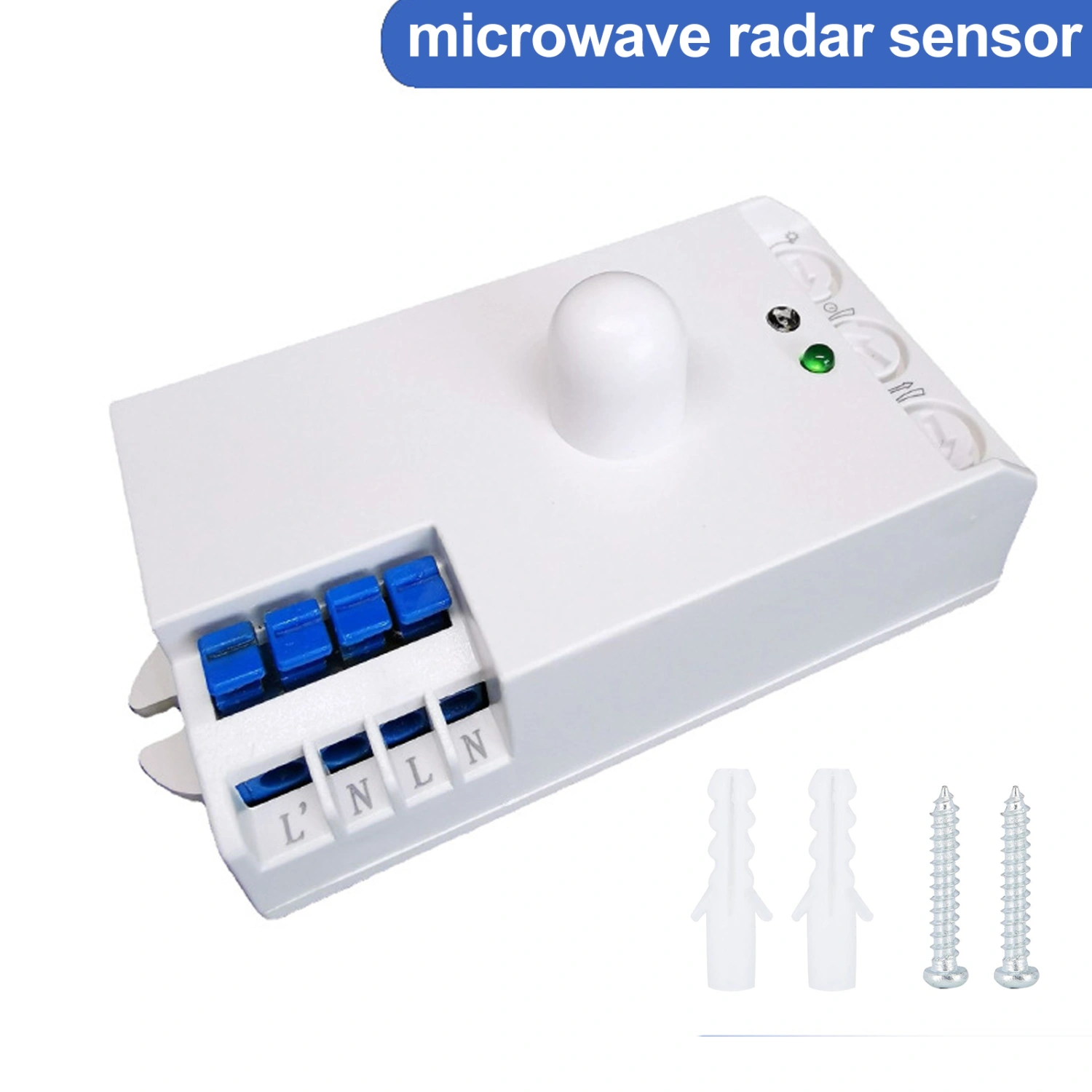

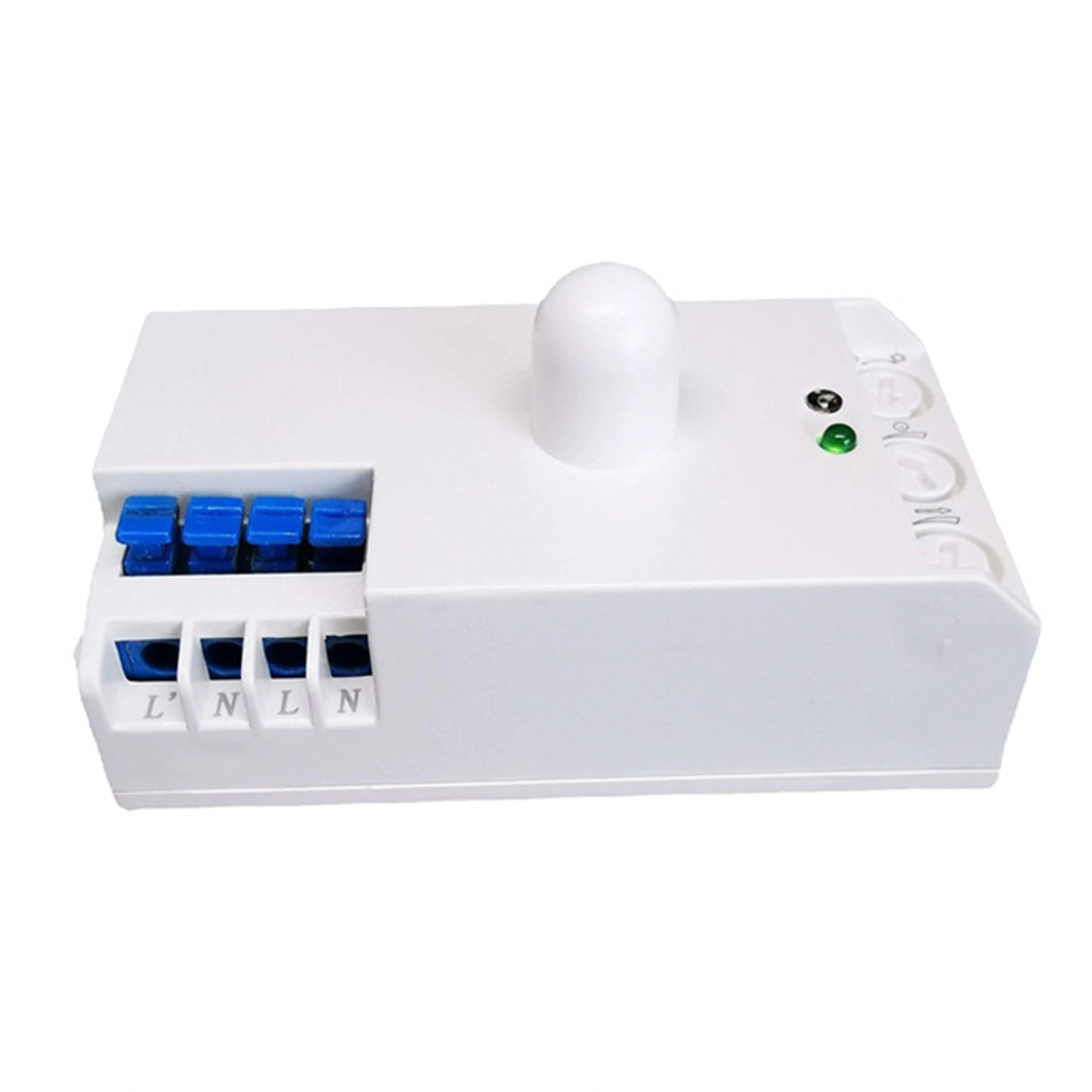

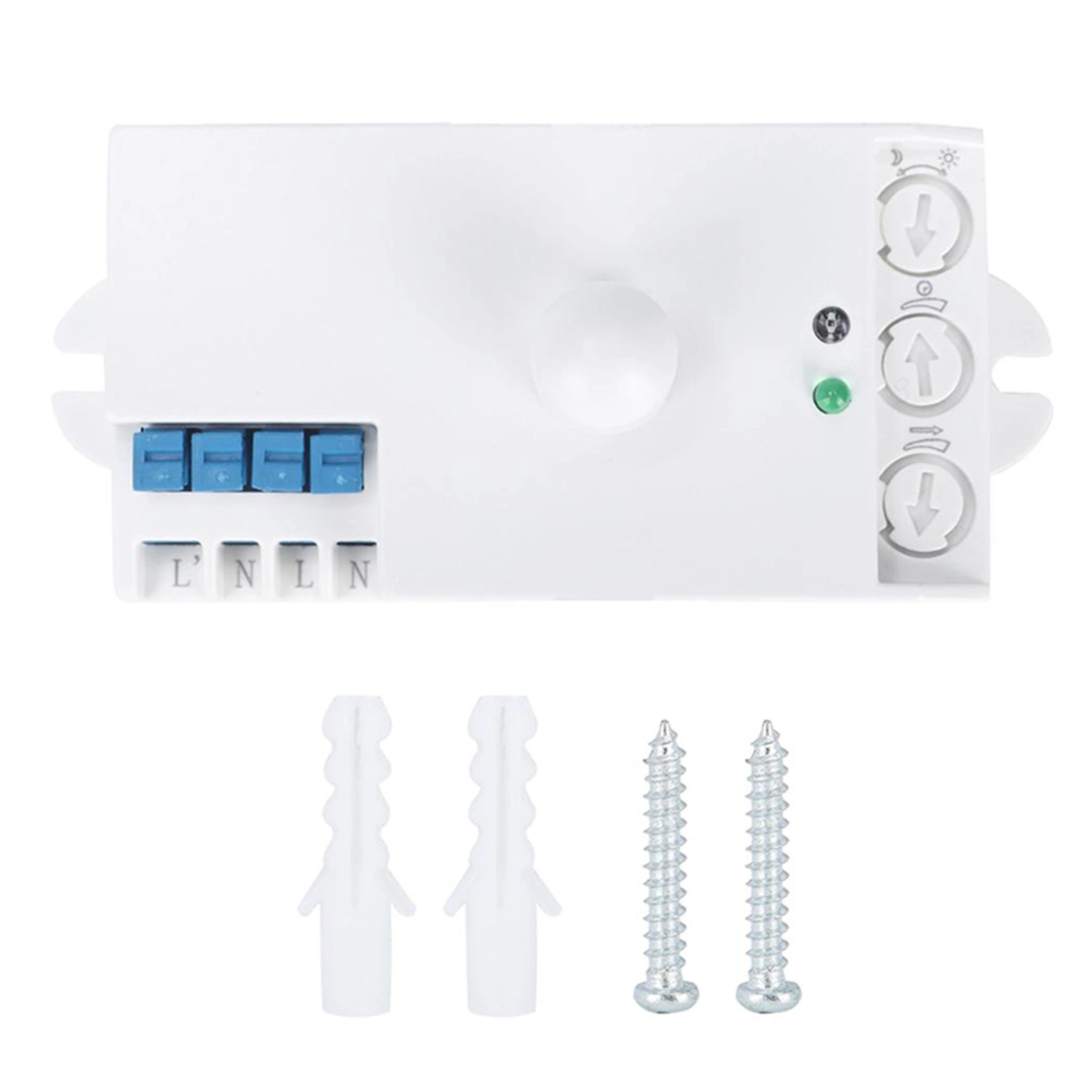

AC110-240V 5.8GHz Microwave Radar Sensor Switch Human Body Motion Induction Sensor for LED Lamp

$0.99

AC110-240V 5.8GHz Microwave Radar Sensor Switch Human Body Motion Induction Sensor for LED LampAC110-240V 5.8GHz Microwave Radar Sensor Switch Human Body Motion Induction Sensor for LED LampAC110-240V 5.8GHz Microwave Radar Sensor Switch Human Body Motion Induction Sensor for LED Lamp

Features: Large-scale detection: 360 omnidirectional detection, high-frequency output is less than 0.2mW, and the radiation level is harmless to the human body. High-quality relay intelligent control and electronic protection. Intelligent light sensing, corrosion resistance and wear resistance, automatic switch, intelligent detection, low carbon and environmental protection. Multi-faceted applications are more worry-free: widely used in street lights, corridor lights, factories, corridors, passages, etc. Good penetration, thin partition walls and glass can penetrate and sense; Specifications: Installation method: 1. Ceiling installation; 2. Side installation; Working voltage: AC110V-240V Working temperature: -10 - 40 Detection distance: 8 meters (<22 degrees Celsius) Rated load: 1200W tungsten filament lamp, 300W energy saving lamp, 300W LED lamp Wiring instructions: blue N is connected to the neutral wire, red L is connected to the live wire (L is input, L' is output); (see illustration for details) Detection angle: 360 Light control angle: 2-2000LUX Product size: 9 4.2 3.9cm/3.54 1.65 1.53" Packing size: 10.2 6 4.8cm/4.01 2.36 1.89" Product weight: 85g Knob adjustment: Light sensing adjustment LUX: adjust to work all day or night. A: When adjusted to the sun position, the sensor works all day; B: When it is adjusted to the moon position, the light is insufficient or it automatically enters the working state at night; Time adjustment TIME: Delay time adjustment range: 8 seconds to 12 minutes; When the sensor senses that a person has left the sensing area, the delay time is closed; Detection distance adjustment SENS: A rotates clockwise to increase the sensing distance; B rotates counterclockwise to shorten the sensing distance; Notes: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding! Packing List: 8GHz Microwave radar sensor switch 1 Screw 2 Nut 2 Manual 1
