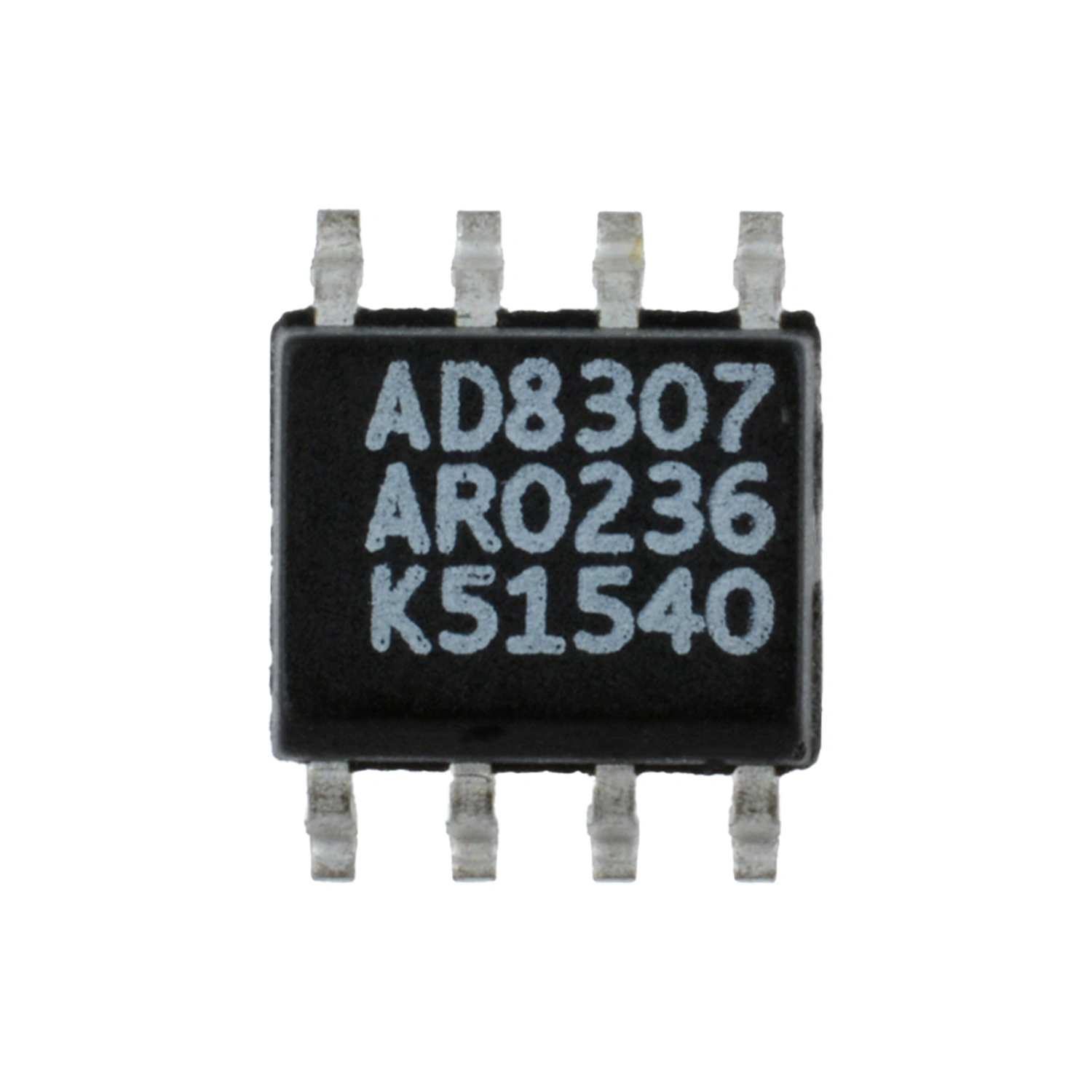

AD8307 Patch Module 8Pin DIP Integrated Circuit Chip Electronic Components for Audio Amplifier

$0.99

AD8307 Patch Module 8Pin DIP Integrated Circuit Chip Electronic Components for Audio AmplifierAD8307 Patch Module 8Pin DIP Integrated Circuit Chip Electronic Components for Audio AmplifierAD8307 Patch Module 8Pin DIP Integrated Circuit Chip Electronic Components for Audio Amplifier

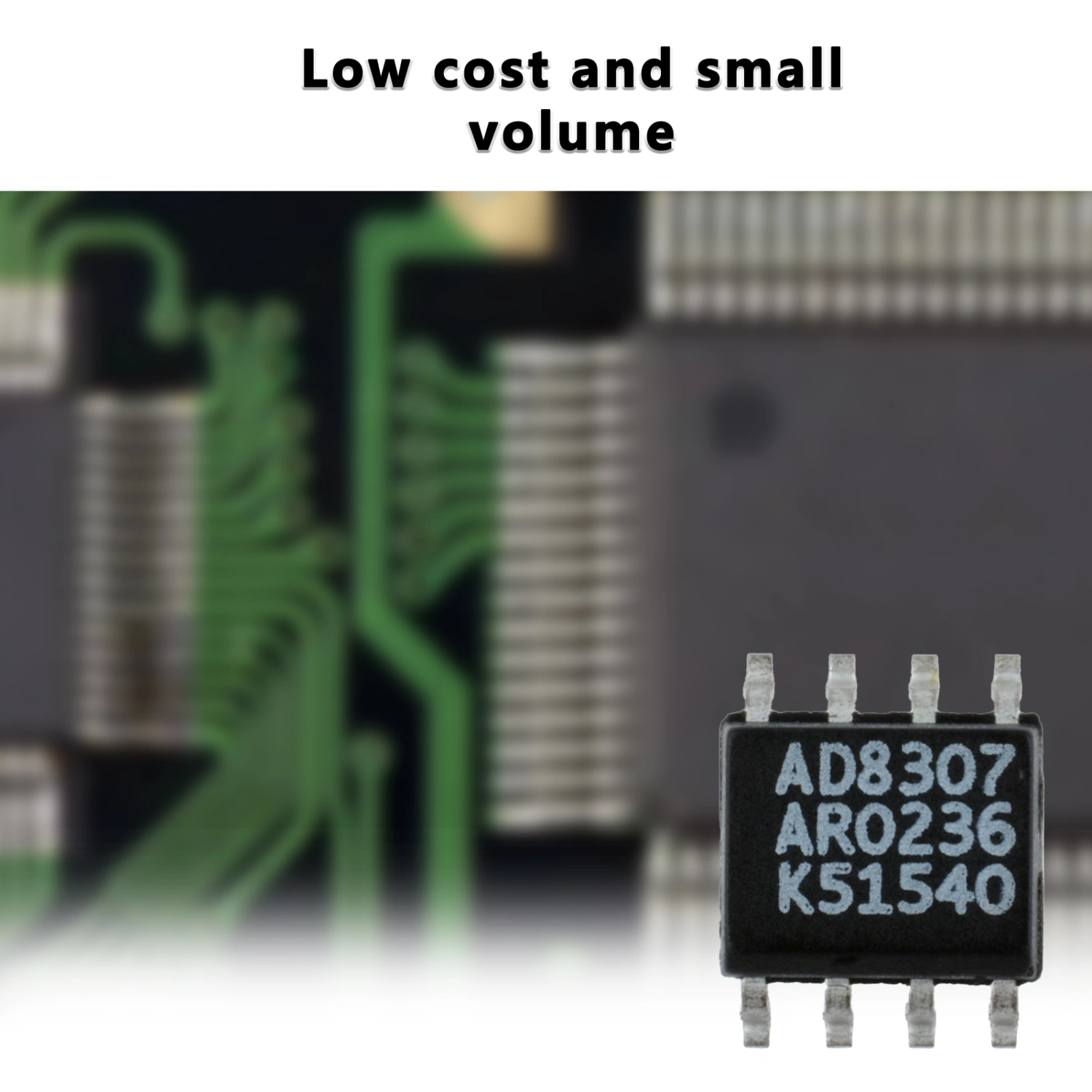

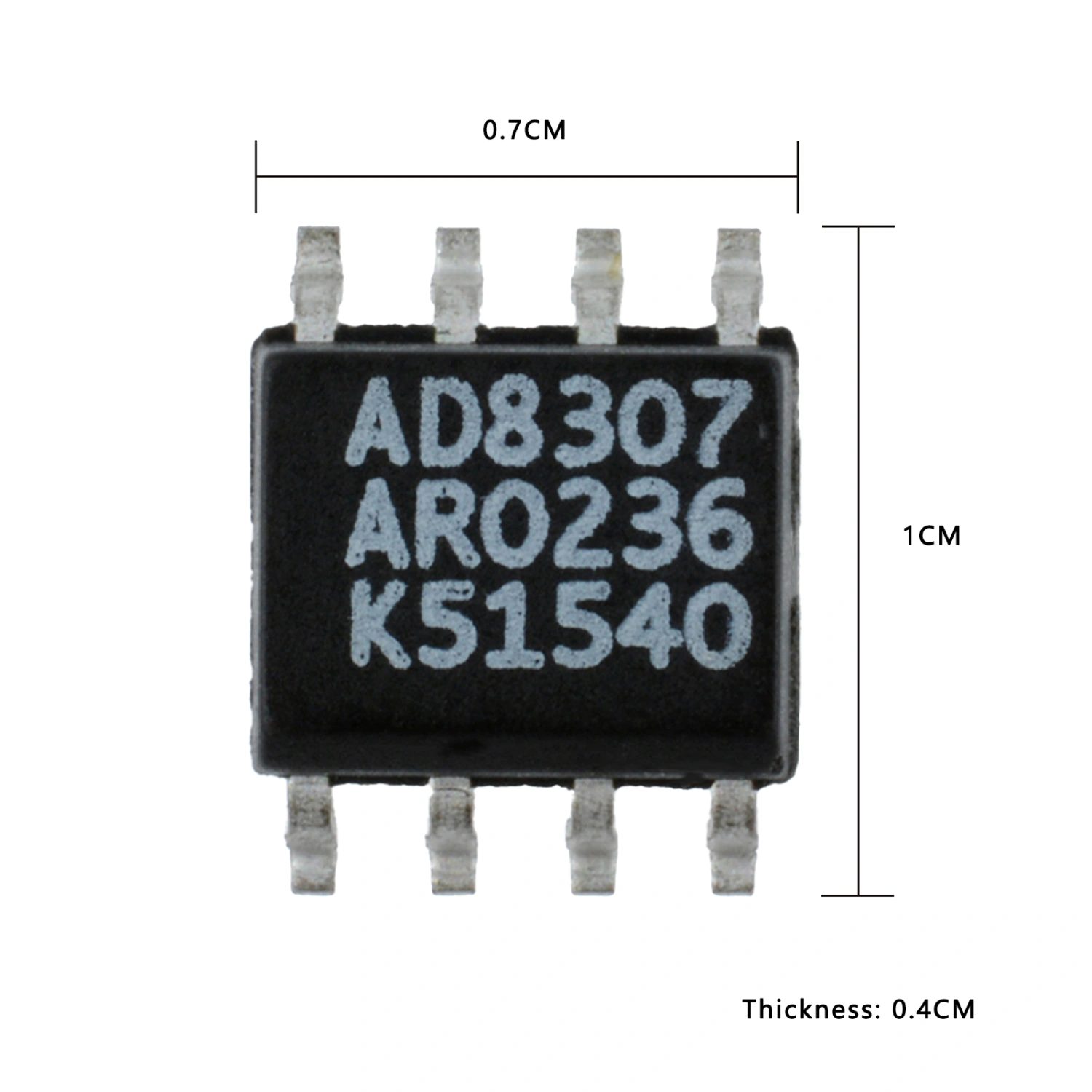

Features: Complete multistage logarithmic amplifier. 92 dB dynamic range: -75 dBm ~ +17 dBm Use matching network to reach-90dbm. At a typical voltage of 7.5 mA, the minimum voltage of a single power supply is 2.7 V. DC to 500MHz CA operation, 1 dB linearity. The slope is 25 mV/dB and the intercept is -84 dBm. Highly stable scaling in the temperature range. Fully differential DC coupled signal path. 100 ns boot time, 150 A sleep current. Industrial temperature range: -40C to +85C. The unique combination of low cost, small size, low power consumption, high precision and stability, extremely high dynamic range is suitable for: Signal level to decibel conversion. Transmitter antenna power measurement. Receiver signal strength indicator (RSSI). Low-cost radar and sonar signal processing. Network and spectrum analyzer (up to 120dB). Specifications: Material: ABS Size: 1 0.7 0.4cm Packing list: 1 x AD8307 Patch Module Note:The delivery shall be subject to AD8307 model, and the number is random.
