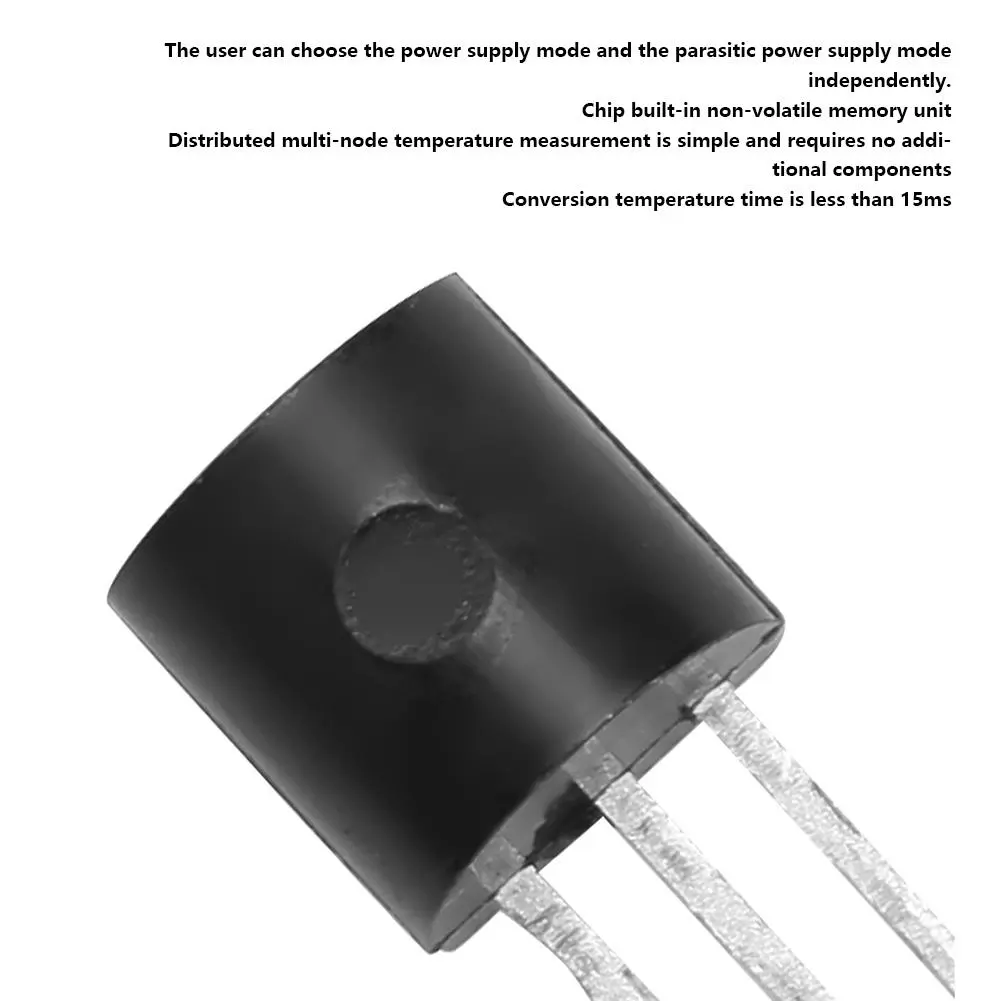

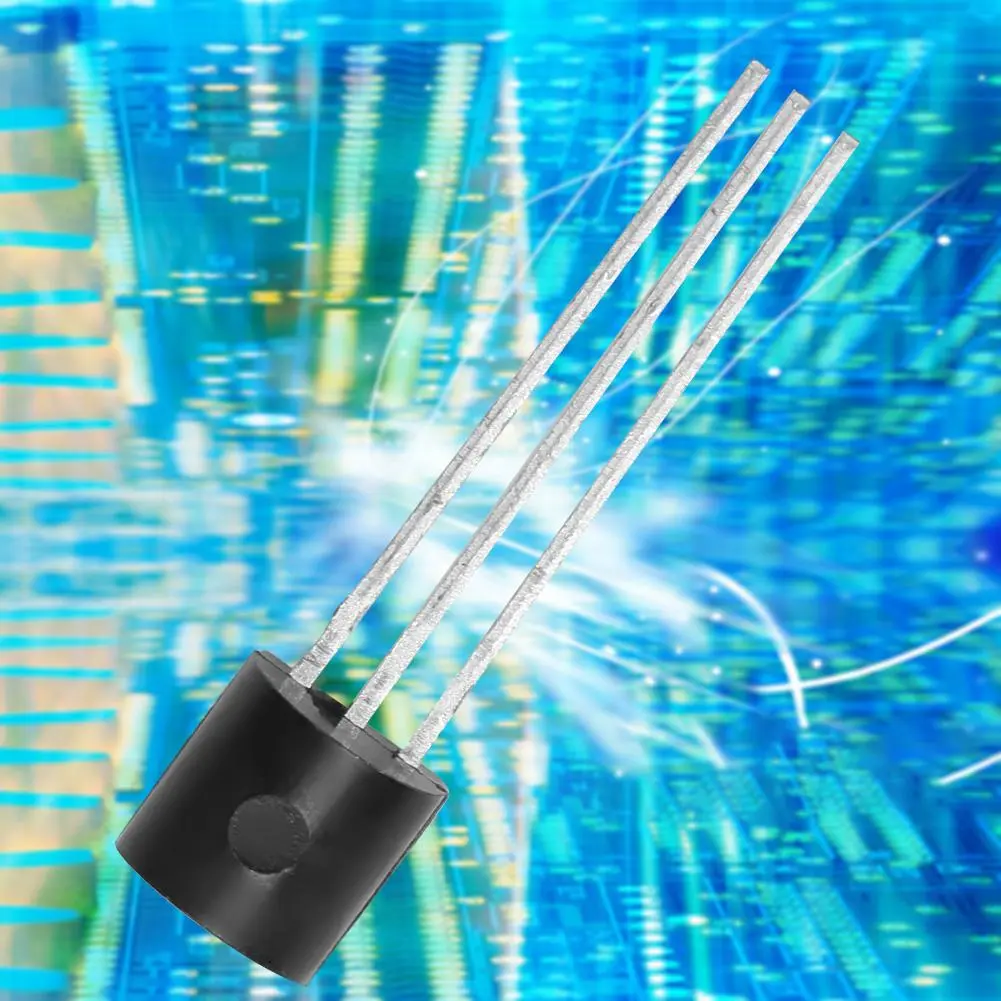

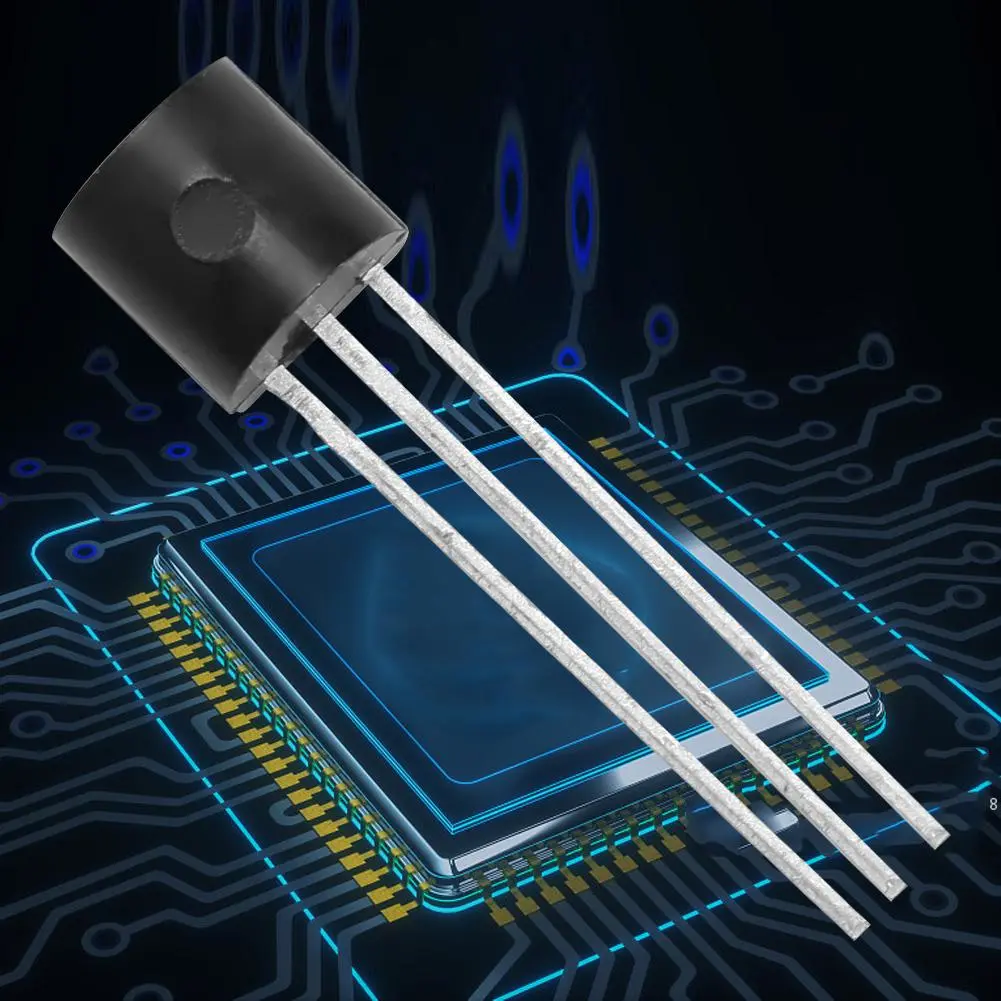

DS18B20 Temperature Digital Sensor 9~14 Programmable Digital Output Sensor 2.8~5.5V(10 Pcs)

$0.99

DS18B20 Temperature Digital Sensor 9~14 Programmable Digital Output Sensor 2.8~5.5V(10 Pcs)DS18B20 Temperature Digital Sensor 9~14 Programmable Digital Output Sensor 2.8~5.5V(10 Pcs)DS18B20 Temperature Digital Sensor 9~14 Programmable Digital Output Sensor 2.8~5.5V(10 Pcs)

Features: The DS18B20 is a high accuracy programmable digital single bus temperature measurement chip. The temperature sensor has a temperature range of -55C to +125C and a maximum resolution of 0.015C. The maximum error is 0.5C from -10C to +85C and 1.5C over the full temperature range. The user can choose the power supply mode and the parasitic power supply mode. The chip has a built-in non-volatile memory unit for storing user-defined information such as high and low temperature alarm thresholds, sensor node numbers, position information, and temperature calibration information. Single bus interface for distributed multi-node measurement.Simple to use, no additional devices required. Typical application:temperature monitoring, environmental monitoring, water temperature measurement, smart home appliances, smart agriculture. Each chip has a programmable ID serial number, which is convenient for networking users to set alarm values by themselves. Specification: Temperature Conversion Time:<15ms Programmable Digital Output:9~14 bit Maximum Resolution:0.015 Wide Voltage Supply Range:2.8~5.5V Typical Standby Power Consumption:0.1A@5V Typical Working Power Consumption:80A@5V Pin to Ground Voltage:-0.5V to +6.0V Working Temperature Range:-55C to +125C Storage Temperature Range:-55C to +125C Welding Temperature:According to IPC/JEDEC J-STD-020 Standard Quantity: 1 Pc/2 Pcs/5 Pcs/10 Pcs/20 Pcs(Optional) Package List: A set of Temperature Sensor
