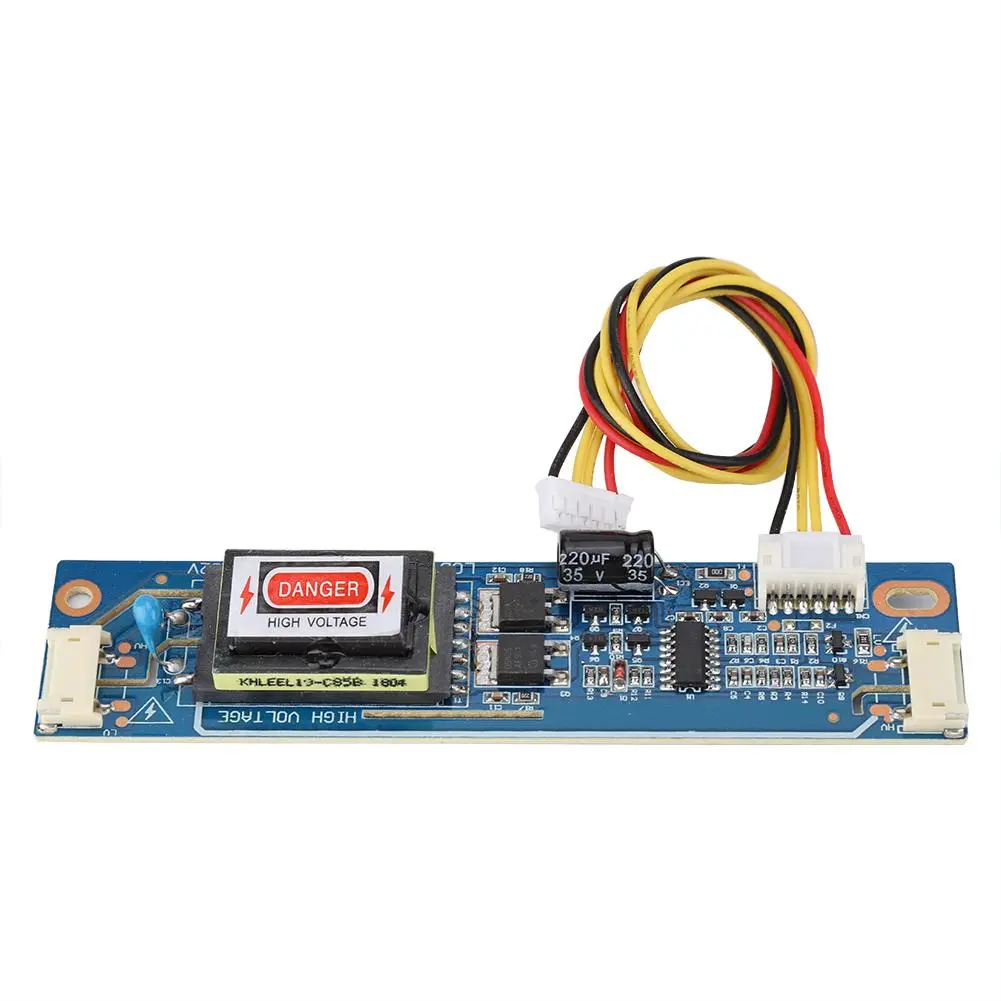

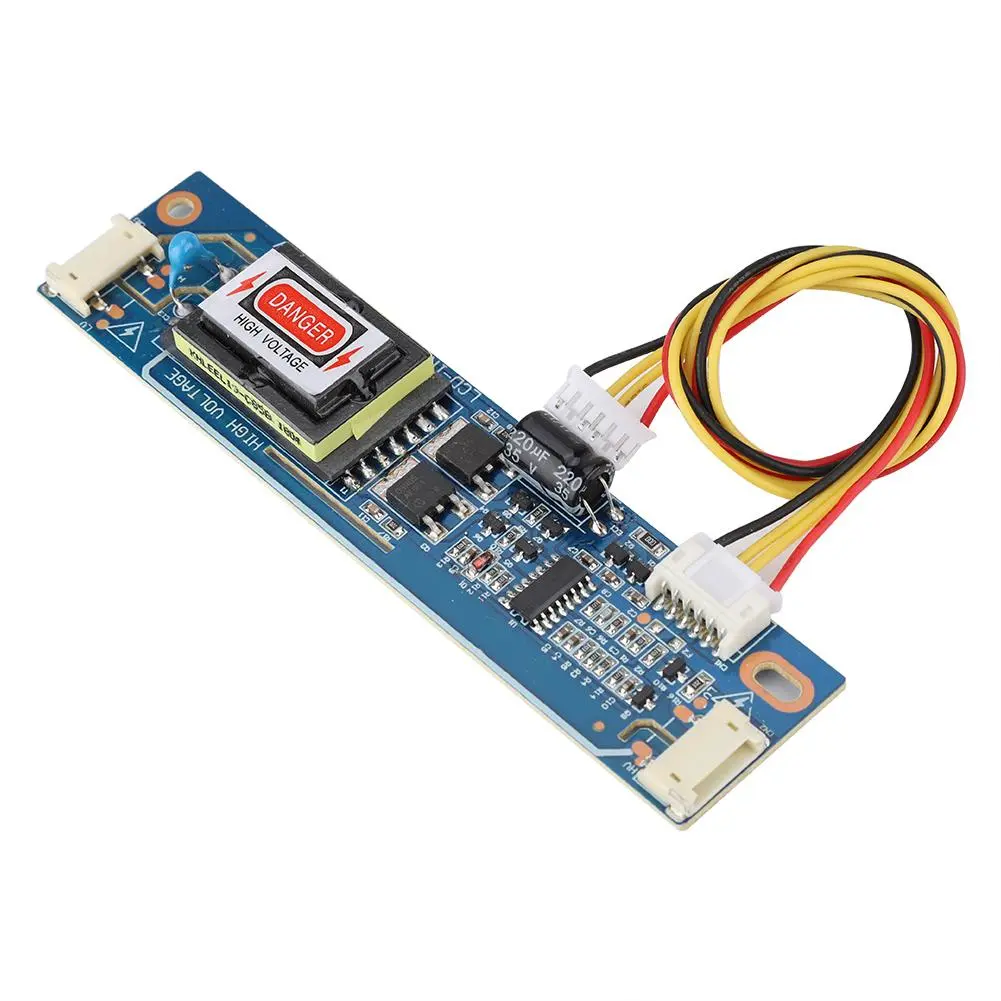

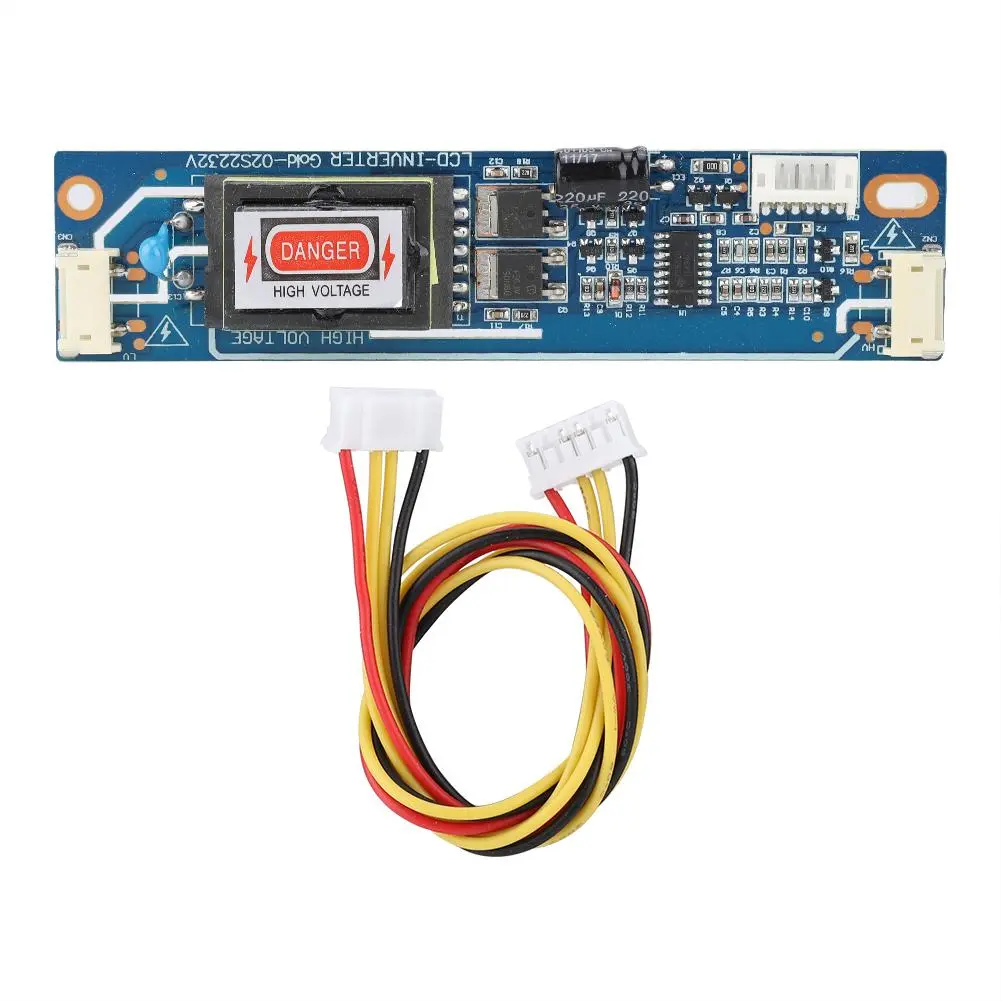

CCFL Dual Lamp Small Port High Pressure Inverter Board for 10-22" LCD Screen Backlight 10-28V

$0.99

CCFL Dual Lamp Small Port High Pressure Inverter Board for 10-22" LCD Screen Backlight 10-28VCCFL Dual Lamp Small Port High Pressure Inverter Board for 10-22" LCD Screen Backlight 10-28VCCFL Dual Lamp Small Port High Pressure Inverter Board for 10-22" LCD Screen Backlight 10-28V

Features: The DC to AC back-light inverter is special designed for lighting 4 CCFL lamps of backlight LCD panel. Support for 10-22 inch screens. With over-voltage protection (OVP), lamp open and short circuit protection. With over current limit protection of DCDC (OCP). Fine workmanship makes sure good performance. Specification: Input voltage: 10-28V Number of bulbs: 1 Pc Pins: 4 4 Pin: + 12V: power supply voltage 10.0 - 14V Ena: On/Off voltage 2-5V on / 0-1V off BRI: Bright voltage 0-5V 0V = the brightest Gnd: Ground 0V Size: 12.5 2.5cm / 4.92 0.98inch Quantity: 1 Pc Package List: 1 * 10-28V High Pressure Inverter Board
