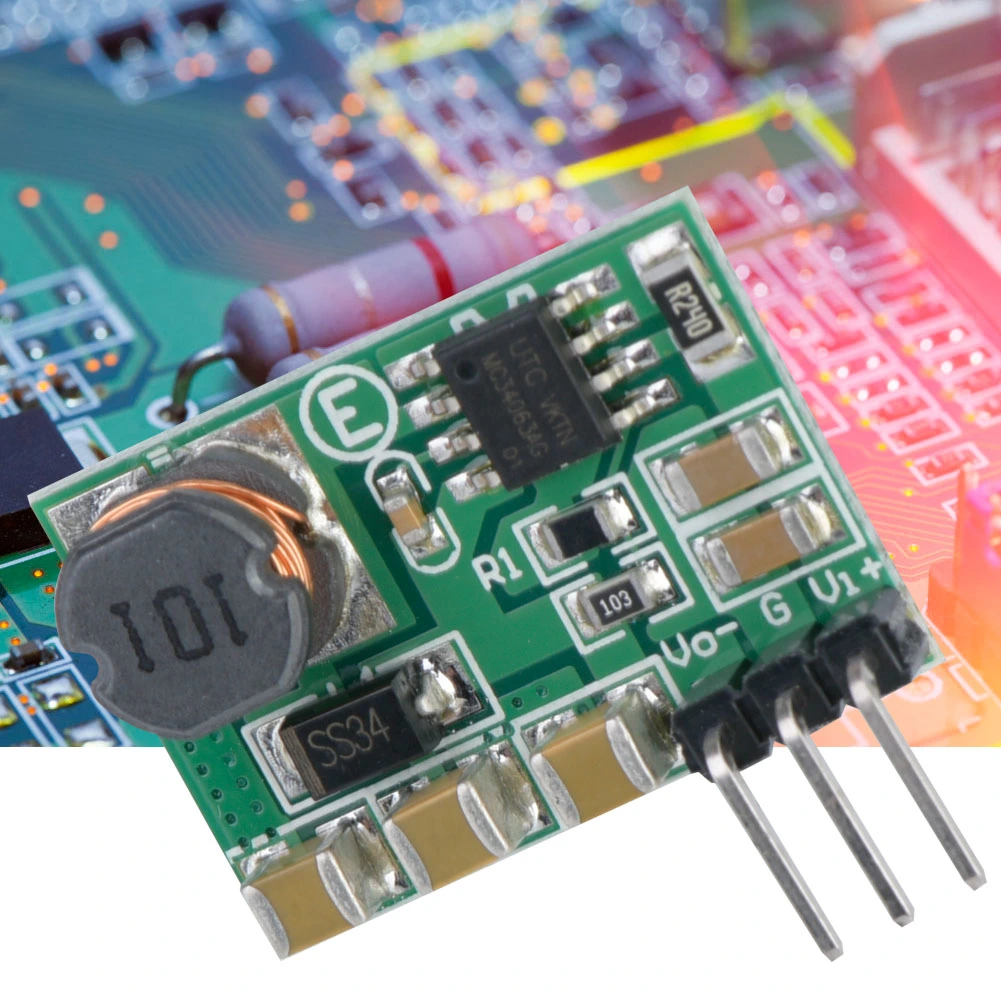

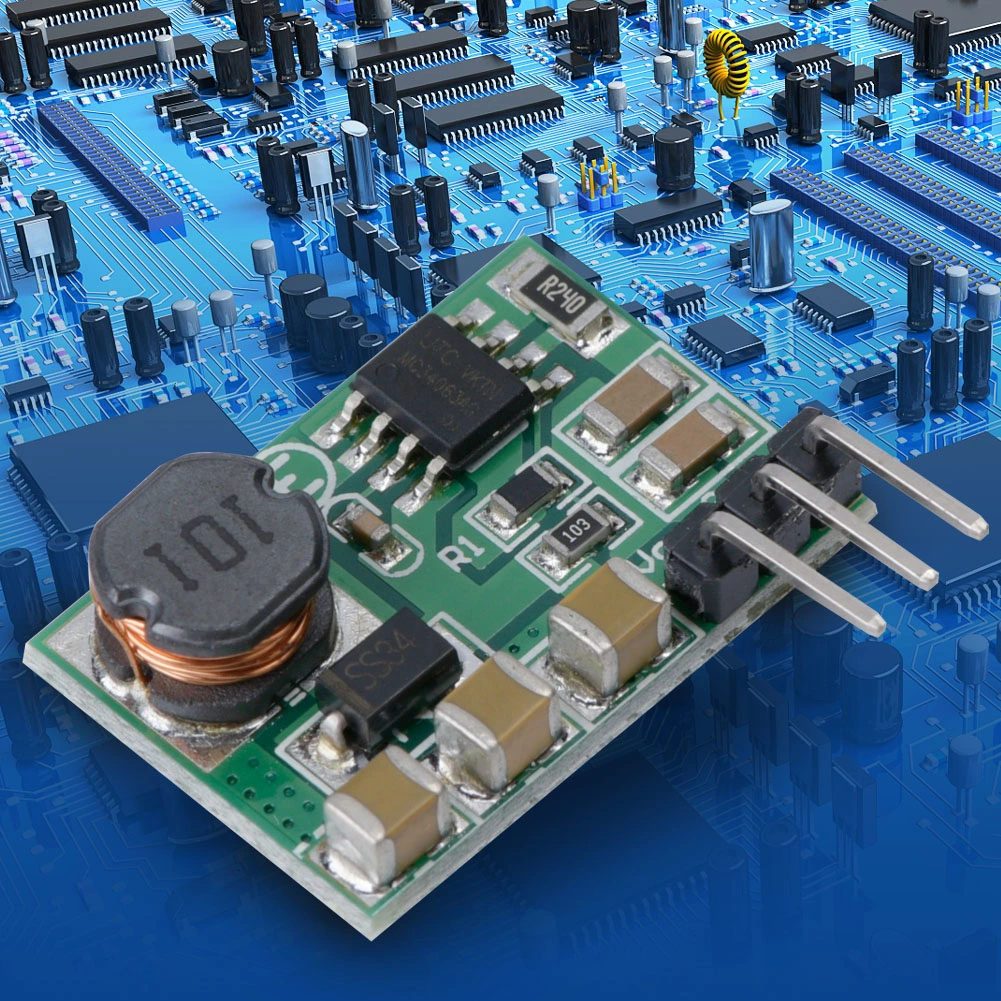

Input 3-15V Positive to Negative Voltage DC-DC Boost/Buck Converter (Output -3.3V)

$0.99

Features: This voltage converter is designed to convert positive voltage into negative voltage. Made with high quality electronic components, stable performance. Reasonable component layout, easy to wire and use. 2.54mm pin pitch, for MCU Development Board Breadboard friendly. Application: ADC/DAC/operational amplifier, RS232 RS485 RS422 bus, audio equipment, LCD power supply, instrument, MCU board, motor power, Wifi/Router/Ethernet devices. Specification: Input voltage: DC 3-15V Output voltage: -3.3V, -5V, -6V, -9V, -12V, -15V (Optional) Output voltage deviation: 3% Working frequency 100kHz Pin pitch: 2.54mm Operating temperature: 0~70 Storage temperature: -65~150 Size: 23 16.3 6.3mm / 0.91 0.64 0.25in Weight: 5g (approx.) 3.3V : Maximum input current 600mA Maximum output current : 500mA Quiescent current: 4-10mA 5V : Maximum input current 500mA Maximum output current : 500mA Quiescent current: 4-10mA 6V : Maximum input current 600mA Maximum output current : 430mA Quiescent current: 5-11mA 9V : Maximum input current 500mA Maximum output current : 300mA Quiescent current: 6-14mA 12V : Maximum input current 500mA Maximum output current : 220mA Quiescent current: 8-18mA 15V : Maximum input current 500mA Maximum output current : 180mA Quiescent current: 10-20mA Package List: 1 * Voltage Converter Note: This is a DC-DC voltage converter module, Must be noted when using: Input voltage can not be greater than the maximum input range Output power can not be greater than the maximum load for a long time Input power must be greater than the output power, because the power consumption of the module itself
