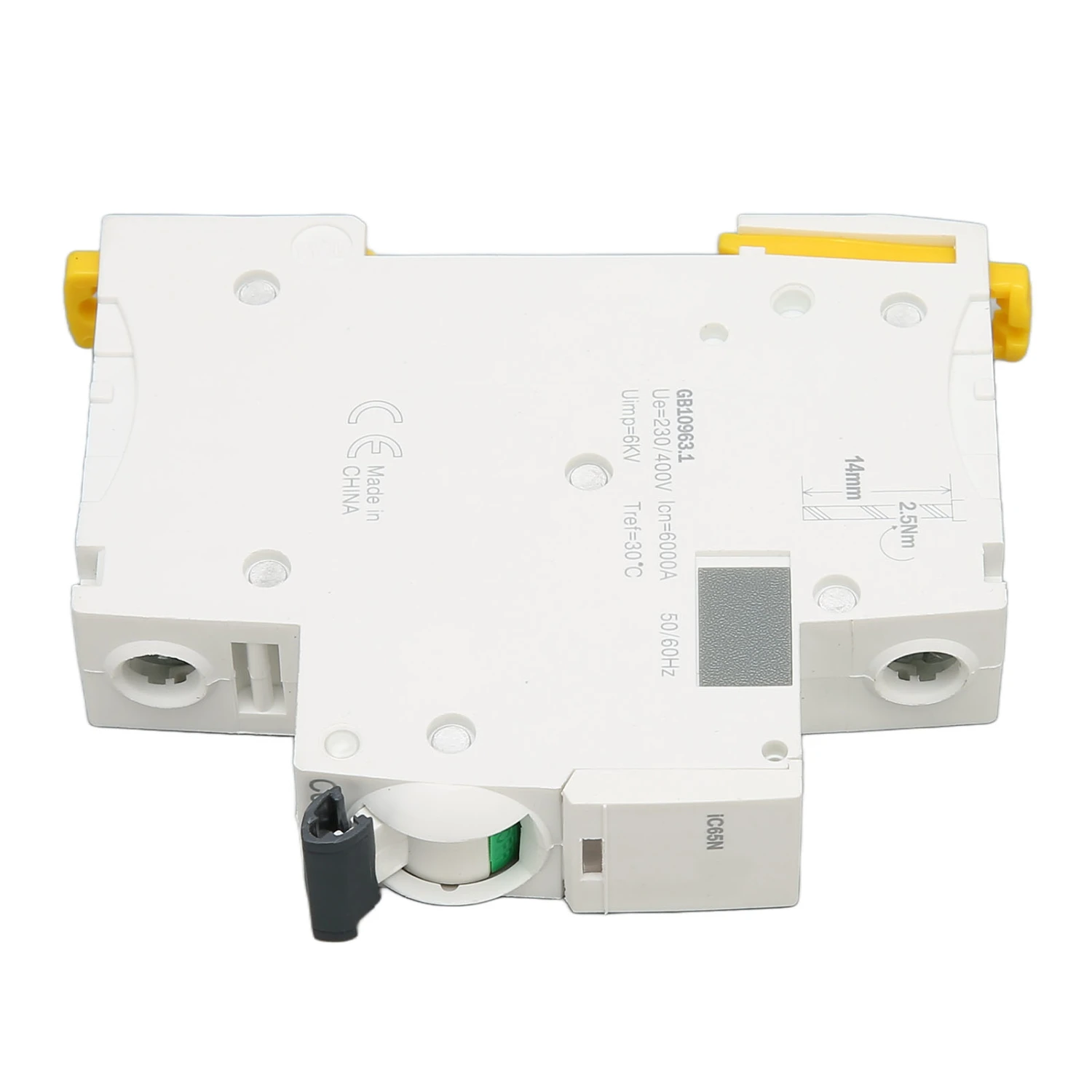

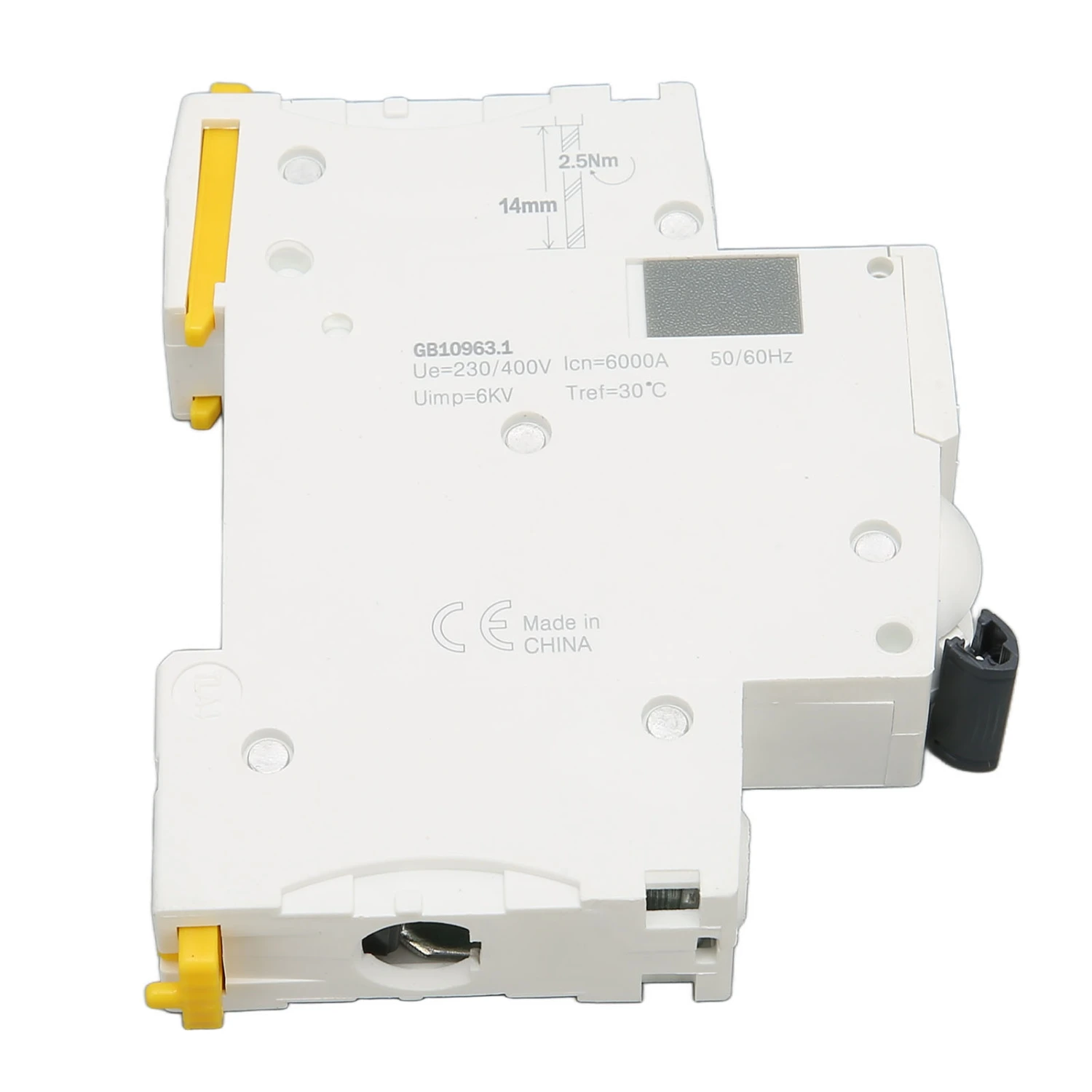

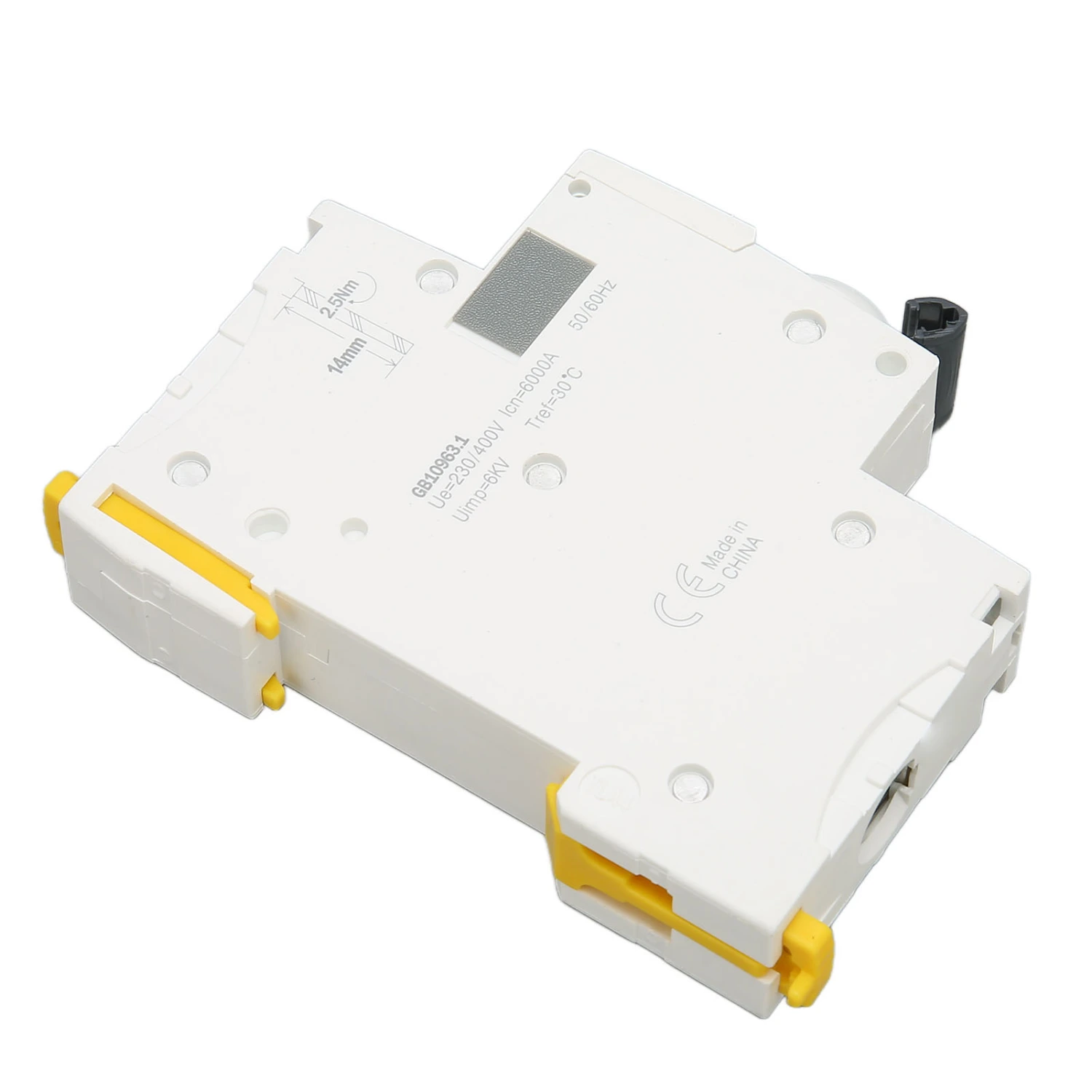

Residential Circuit Breaker 1P Double Locking Clip Structure Multi Protection Leakage Protection Air Switch AC 230V 400V 16A

$0.99

Features 1. Easy Installation: With double locking clip structure, can be installed horizontally, easy to disassemble and assemble in a narrow environment. 2. Short Circuit Protection: Built in short circuit protection, electromagnetic tripping mechanism stable current interruption, has good safety. 3. Fast Arc Extinguishing: Built in rapid arc extinguishing system, can quickly extinguish the arc and avoid electrical fire, safe and reliable. 4. Safety PA66 Housing: Manufactured by excellent nylon Pa66 material, has good flame resistant, sturdy and durable. 5. Wide Range of Application: This breaker is widely used in power distribution and protection in civil, commercial buildings and industrial places. Specification Item Type: Residential Circuit Breaker Material: PA66 Features: Complies with IEC60947-2: Rated Insulation Voltage (Ui): 500VAC Impulse Voltage (Uimp): 6kV Thermal Trip Reference Setting Temperature: 30 Use Category: A Pollution Degree: 3 Magnetic Tripping: B Curve: (3-5)ln C Curve: (5-10)ln D Curve: (10-14) ln Complies with IEC60898-1: Current Limiting Class: 3 Single Pole Breaking Capacity (Icn1): Icn1=Icn(6000A) Other Parameters: Protection Class (IEC60529) Circuit Breaker Body: IP20 Installed in the Distribution Box: IP40 Insulation, class Overvoltage Category (IEC60364): Damp Heat Resistance (IEC60068-1): Class 2 (when 55C, relative humidity 95%) Wiring Method: Top in and bottom out, bottom in and top out Function: Short circuit protection, overload protection, control isolation Electrical Life: 10000 times Mechanical Life: 20000 times Ambient Temperature: -35 to +70 Storage Ambient Temperature: -40 to +85 Voltage: 230V 400V Package List 1 x Residential Circuit Breaker
