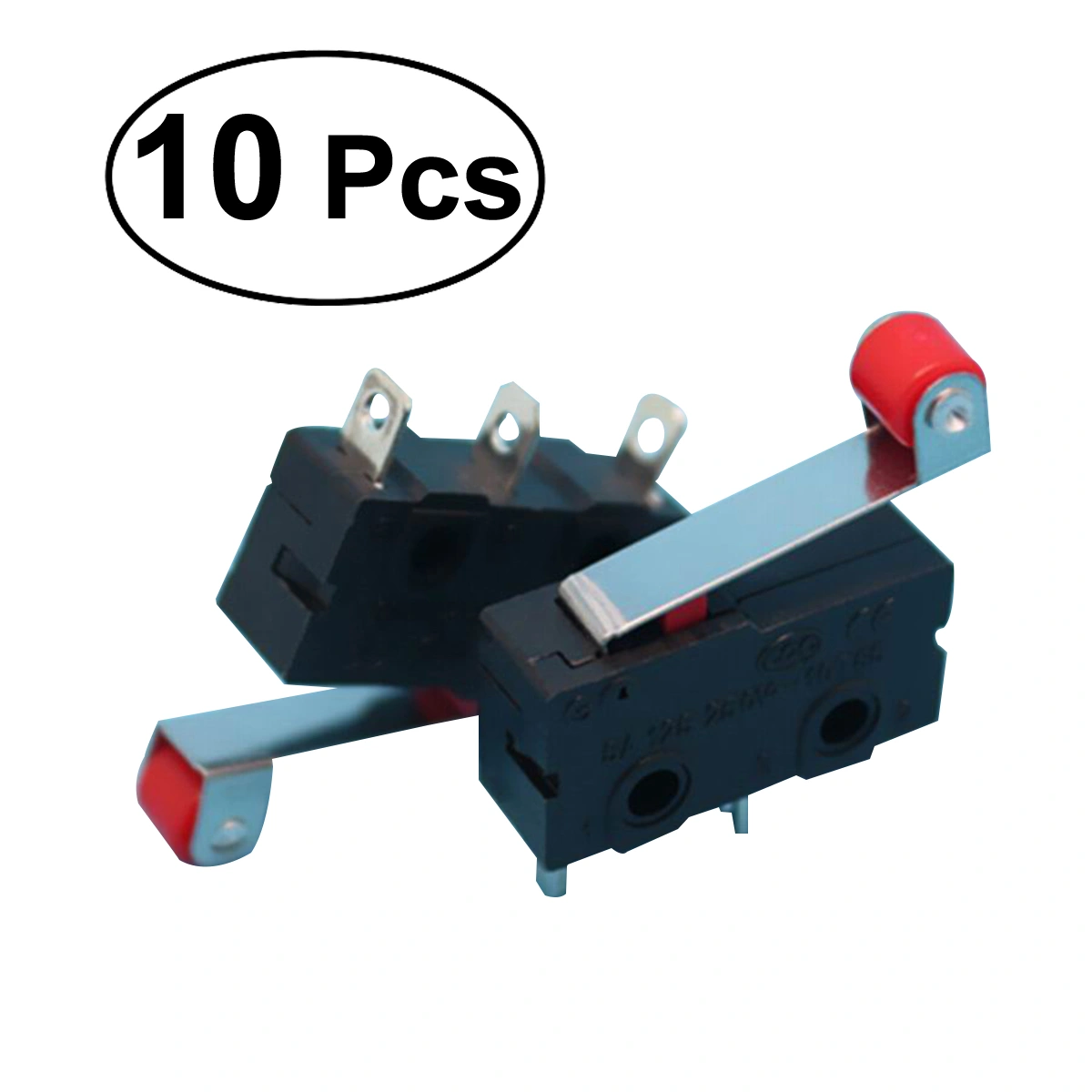

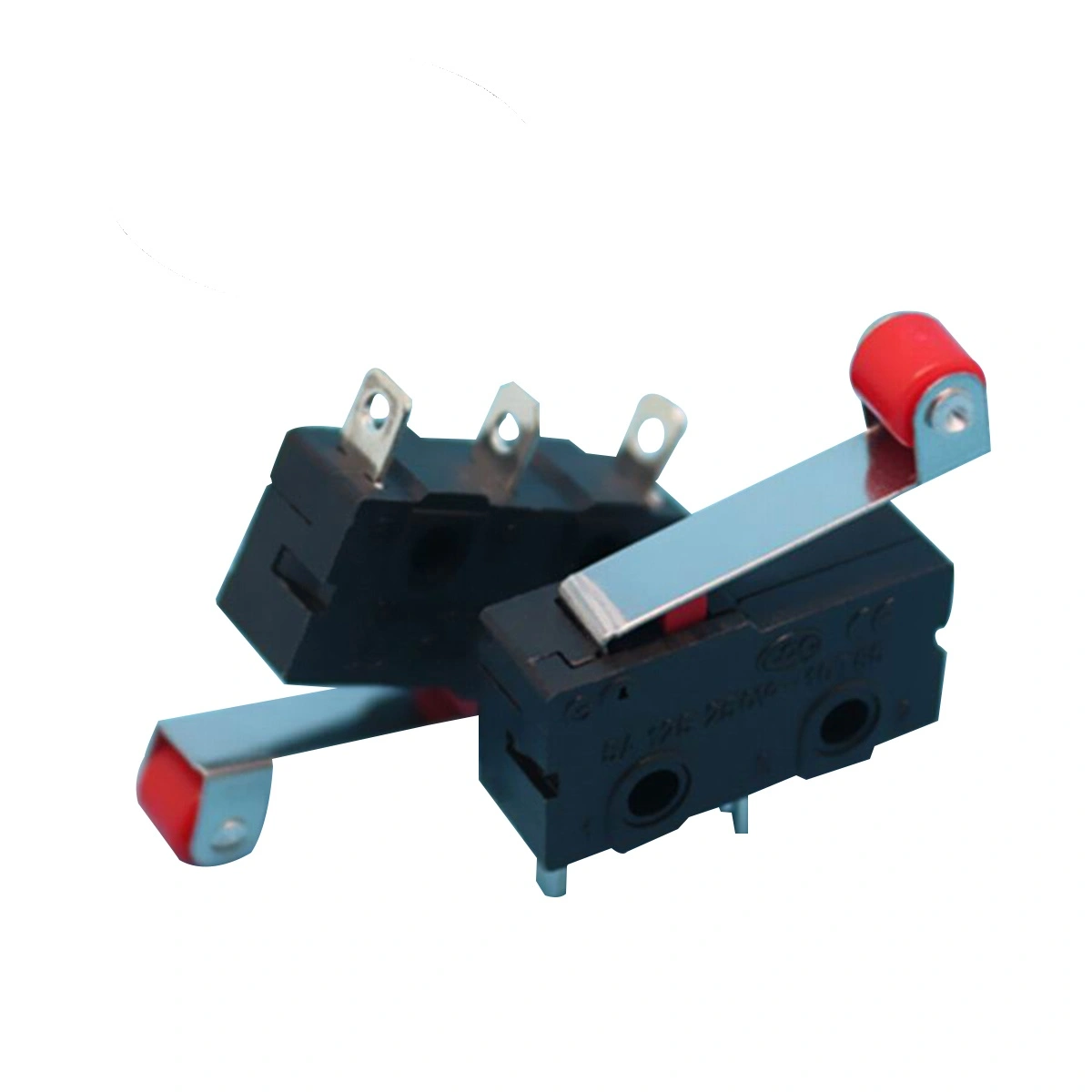

10pcs 250V 5A SPDT 1NO 1NC Momentary Hinge Roller Lever Micro Switches 3

$0.99

10pcs 250V 5A SPDT 1NO 1NC Momentary Hinge Roller Lever Micro Switches 310pcs 250V 5A SPDT 1NO 1NC Momentary Hinge Roller Lever Micro Switches 310pcs 250V 5A SPDT 1NO 1NC Momentary Hinge Roller Lever Micro Switches 3

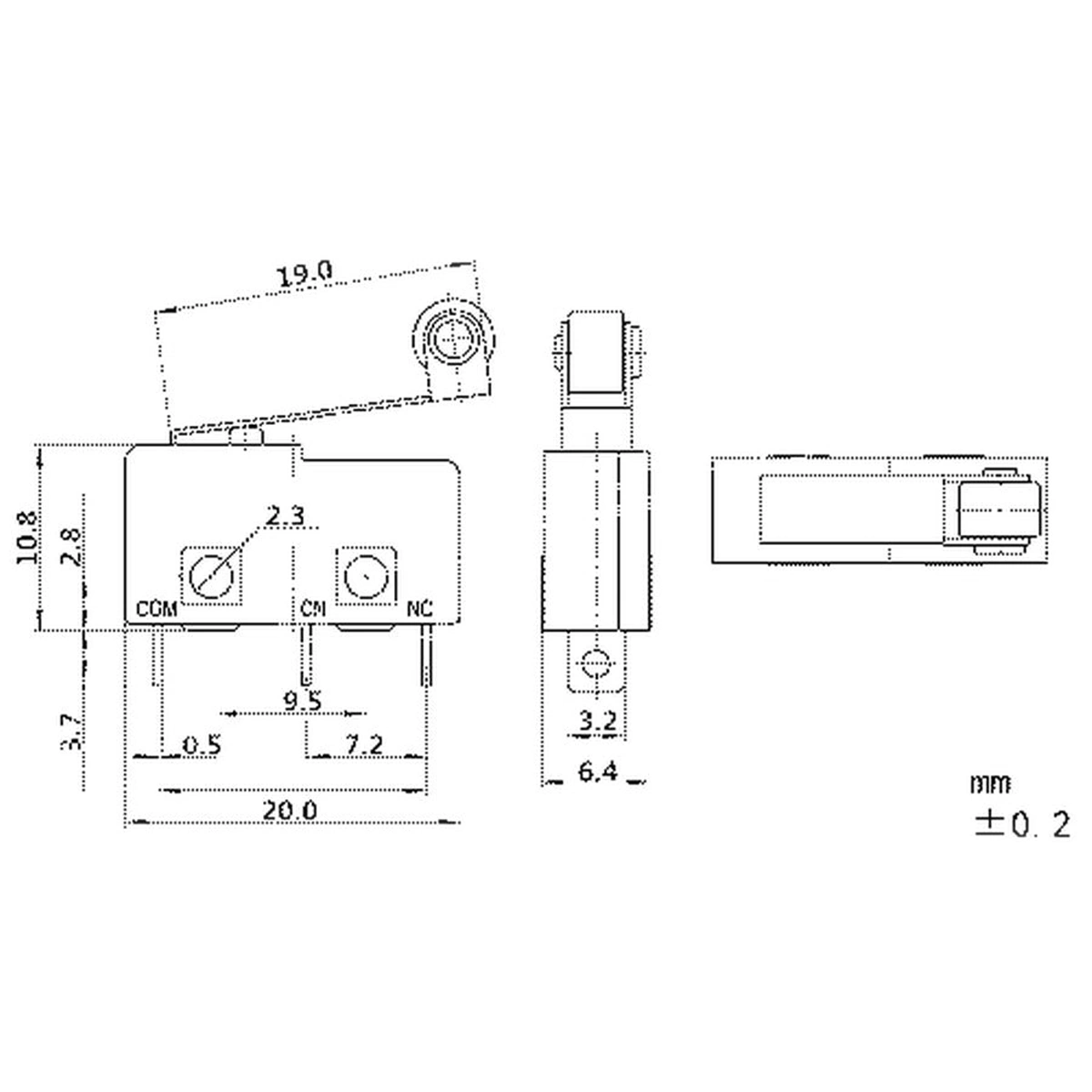

DescriptionThis micro switch features with Single Pole Double Throw (SPDT) Type, 1NO + 1NC Contact, Momentary Action, Roller Lever Arm Actuator and 3-Pin Terminals. It's constructed of durable material with long using life. Easy to install, it can be widely used in electronic equipments, automatic machines, etc.Features- Color: Shown in the pictures. - Material: Plastic and Metal. - Size: Approx. 2 x 1 x 0.6cm/ 0.8 x 0.4 x 0.24 inch (LxWxH). - Product Name : Micro Switch; - Voltage & Current : AC 250V 5A. - Poles: SPDT. - Type: 1NO + 1NC. - Action Type: Momentary. - Actuator Type: Roller Lever Arm. - Terminal Type: 3-Pin Terminals. - Mounting Hole Dia.: 2mm / 0.08". - Mounting Hole Spacing: 9.5mm / 0.37". - Pin Pitch: 7.2 x 9mm / 0.28" x 0.35". - Lever Arm Size: 17.5 x 4mm / 0.69" x 0.16" (L W). - Roller Size: 5 x 3mm / 0.2" x 0.12" (D T).
