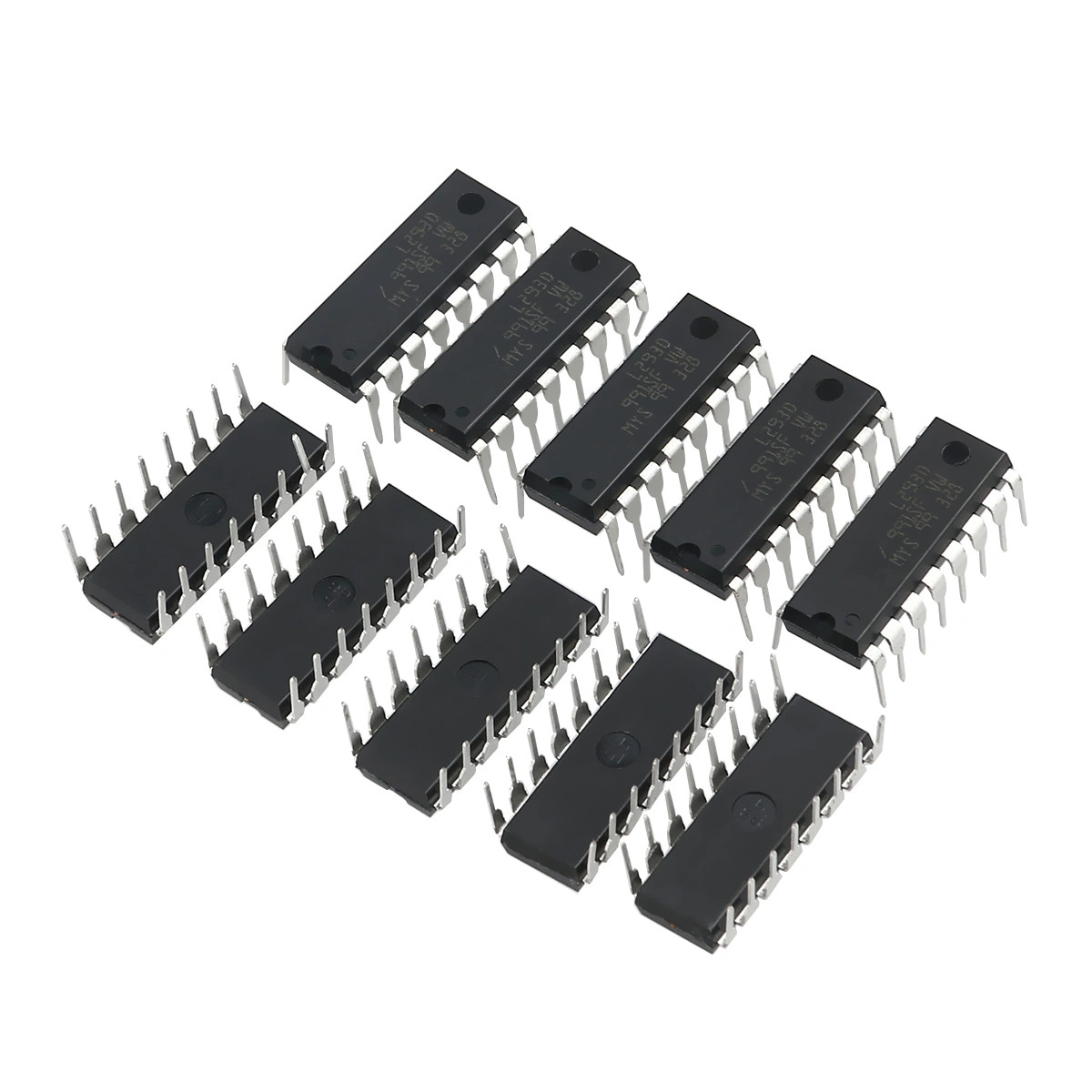

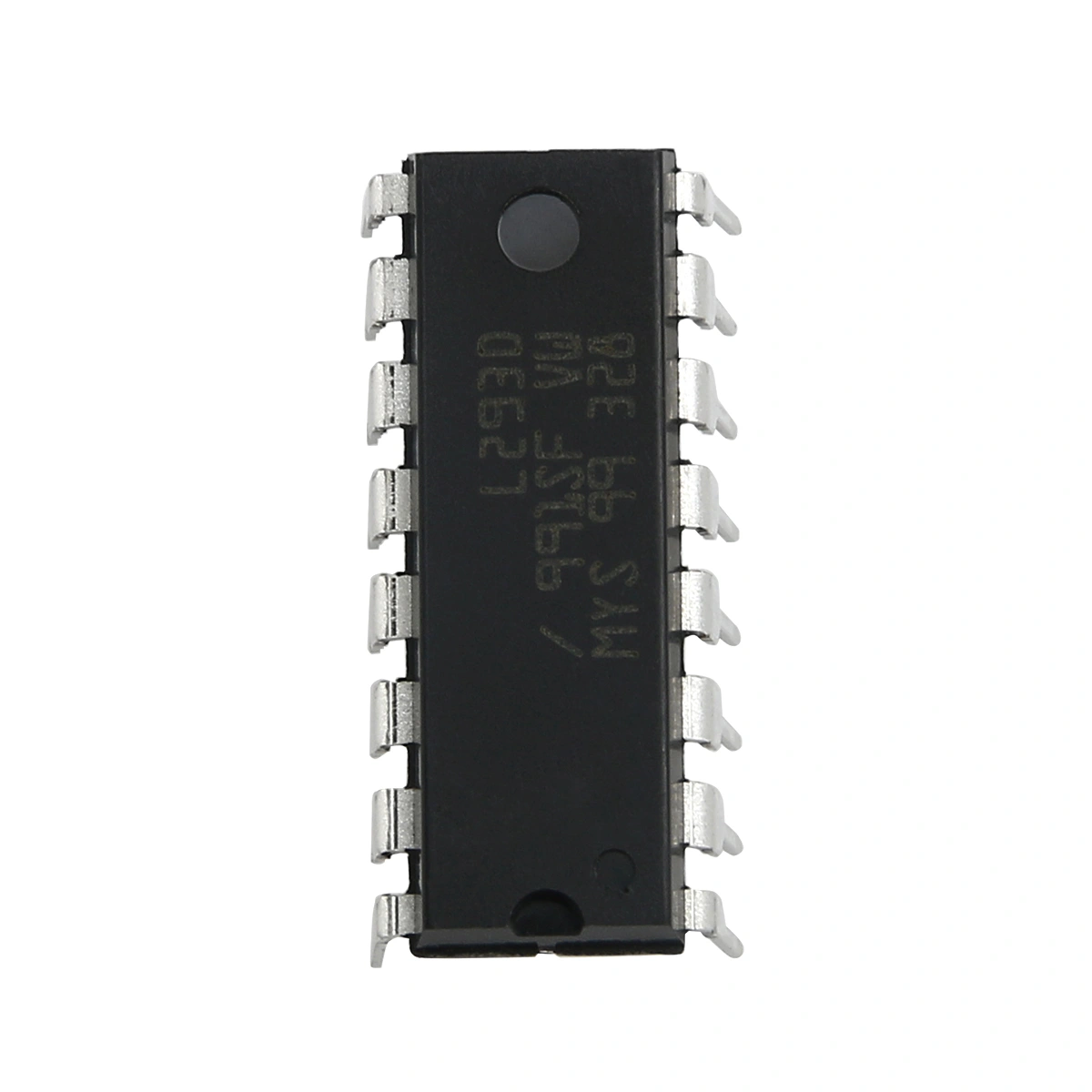

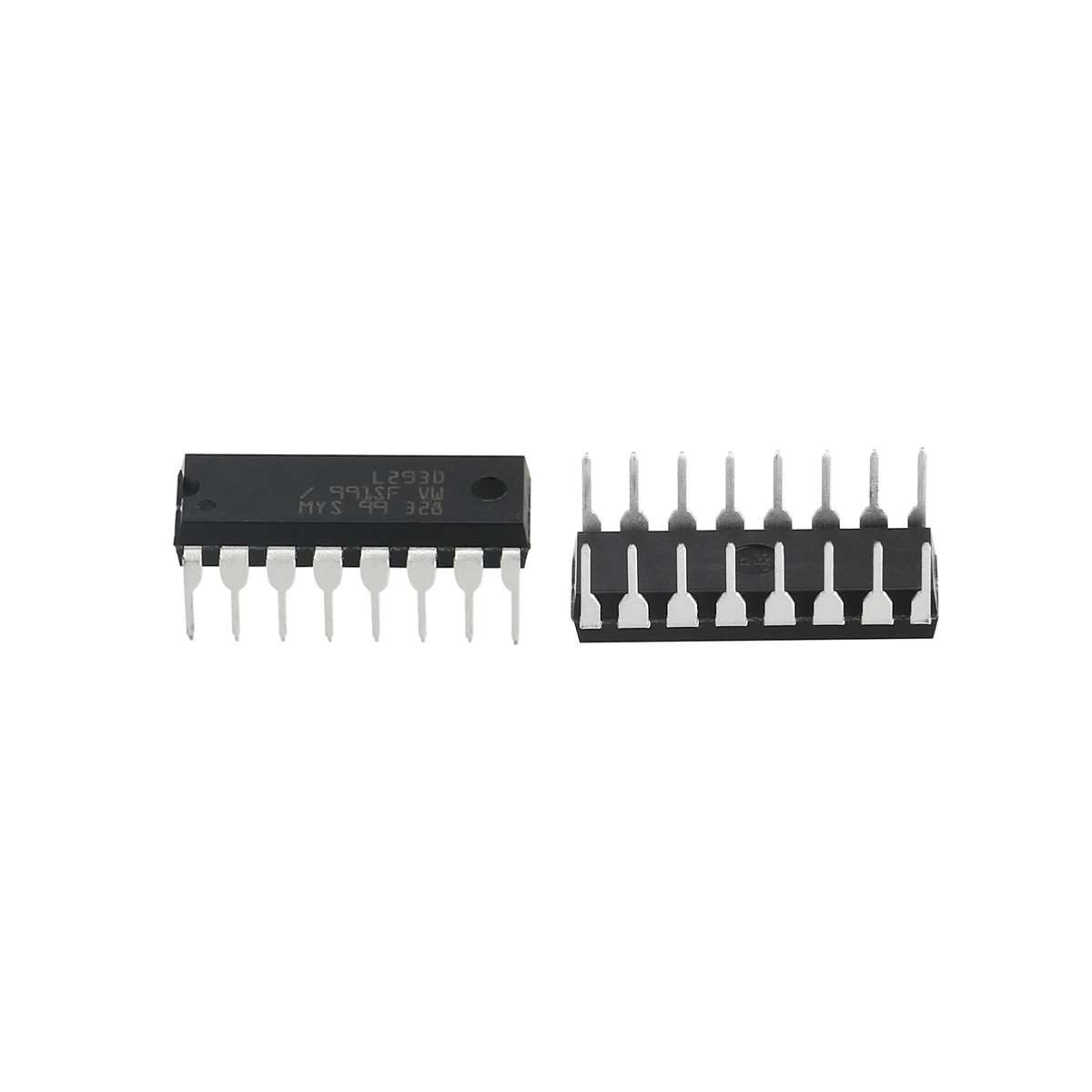

10pcs L293D DIP 16-pin IC Stepper Motor Drivers Controllers (Black)

$0.99

10pcs L293D DIP 16-pin IC Stepper Motor Drivers Controllers (Black)10pcs L293D DIP 16-pin IC Stepper Motor Drivers Controllers (Black)10pcs L293D DIP 16-pin IC Stepper Motor Drivers Controllers (Black)

DescriptionThe item is a set of 10pcs professional and practical L293D step motor driver chips, which are mainly made of durable hard alloy and plastic materials, and features 16-pin design and channel channel capability up to 600mAh output current. With over-temperature protection and easy to use, it is really a wonderful L293D stepper motor drivers for choice.Features- Color: mainly black. - Material: durable hard alloy and plastic. - and L293D DIP 16-pin IC Stepper Motor Drivers Controllers. - Channel Capability: 600mA output current / channel. - Peak Output Current: 1.2A / Channel (non repetitive). - Enable facility. - Over temperature protection. - Logical "0" input voltage up to 1.5V (High noise immunity). - Internal clamp diodes. - Pin No: 16 pins.Absolute Maximum Ratings- Vs Supply voltage: 36V. - Vss Logic Supply Voltage: 36V. - Vi Input signals: 7V. - Ven Enable Voltage: 7V. - Io Peak Output Current (100 s non repetitive): 1.2A. - Ptot Total Power Dissipation at Tpins: 90C, 4W. - Tstg, Tj Storage and Junction temperature: -40C to 150C.
